Model # 33021542 Official Sears shower stall valve

Here are the diagrams and repair parts for Official Sears 33021542 shower stall valve, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Lock Nut 14070
#8

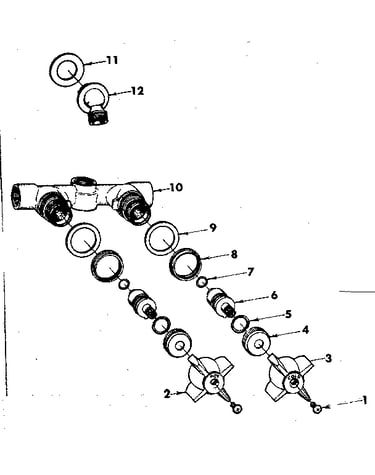

Replacement parts diagram

Lock nut

Part #14070

The manufacturer no longer makes this part, and there's no substitute part

Cold Handle 14051-C
#3

Replacement parts diagram

Cold handle

Part #14051-C

The manufacturer no longer makes this part, and there's no substitute part

Washer 21010
#9

Replacement parts diagram

Washer

Part #21010

The manufacturer no longer makes this part, and there's no substitute part

Cap 14002
#4

Replacement parts diagram

Cap

Part #14002

The manufacturer no longer makes this part, and there's no substitute part

O-ring 30453
#7

Replacement parts diagram

O-ring

Part #30453

The manufacturer no longer makes this part, and there's no substitute part

Body 14116
#10

Replacement parts diagram

Body

Part #14116

The manufacturer no longer makes this part, and there's no substitute part

Fiber Washer 332
#11

Replacement parts diagram

Fiber washer

Part #332

The manufacturer no longer makes this part, and there's no substitute part

Screw 750
#1

Replacement parts diagram

Screw

Part #750

The manufacturer no longer makes this part, and there's no substitute part

Shower Arm S2367
#12

Replacement parts diagram

Shower arm

Part #S2367

The manufacturer no longer makes this part, and there's no substitute part

Hot Handle 14051-H
#2

Replacement parts diagram

Hot handle

Part #14051-H

The manufacturer no longer makes this part, and there's no substitute part
