Murray
Gas Snowblower

Model # 620301X4B Official Murray snow thrower

Here are the diagrams and repair parts for Official Murray 620301X4B snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

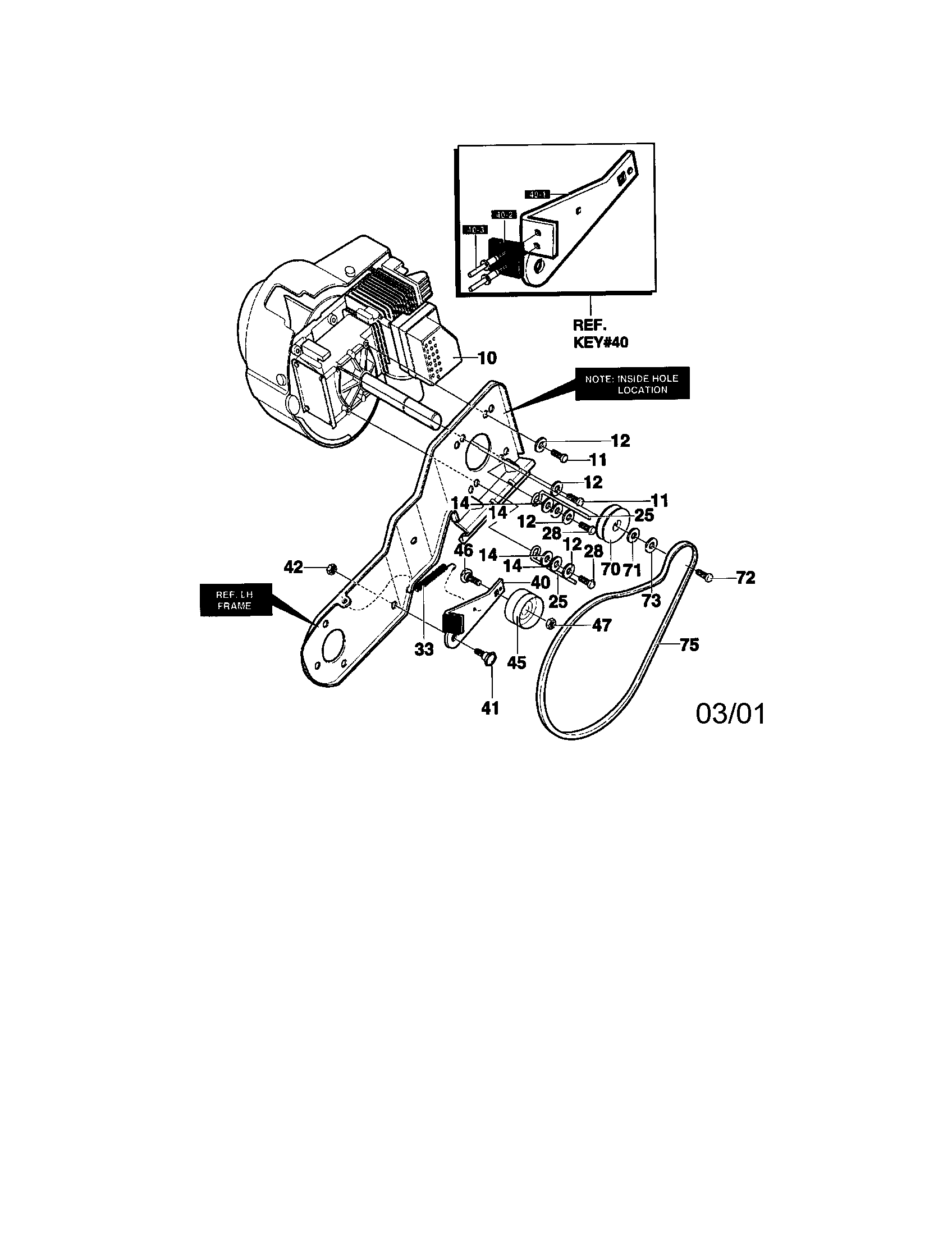

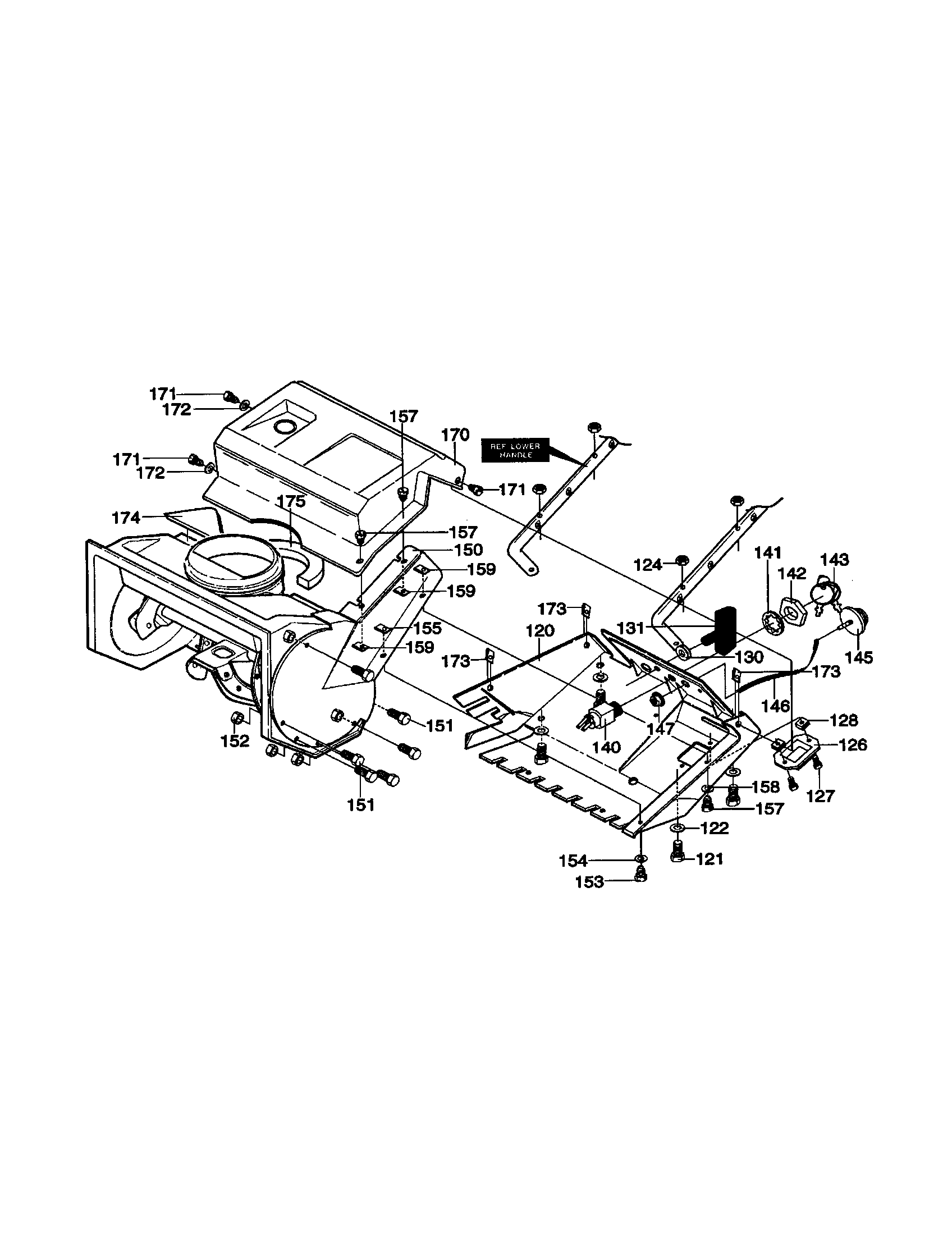

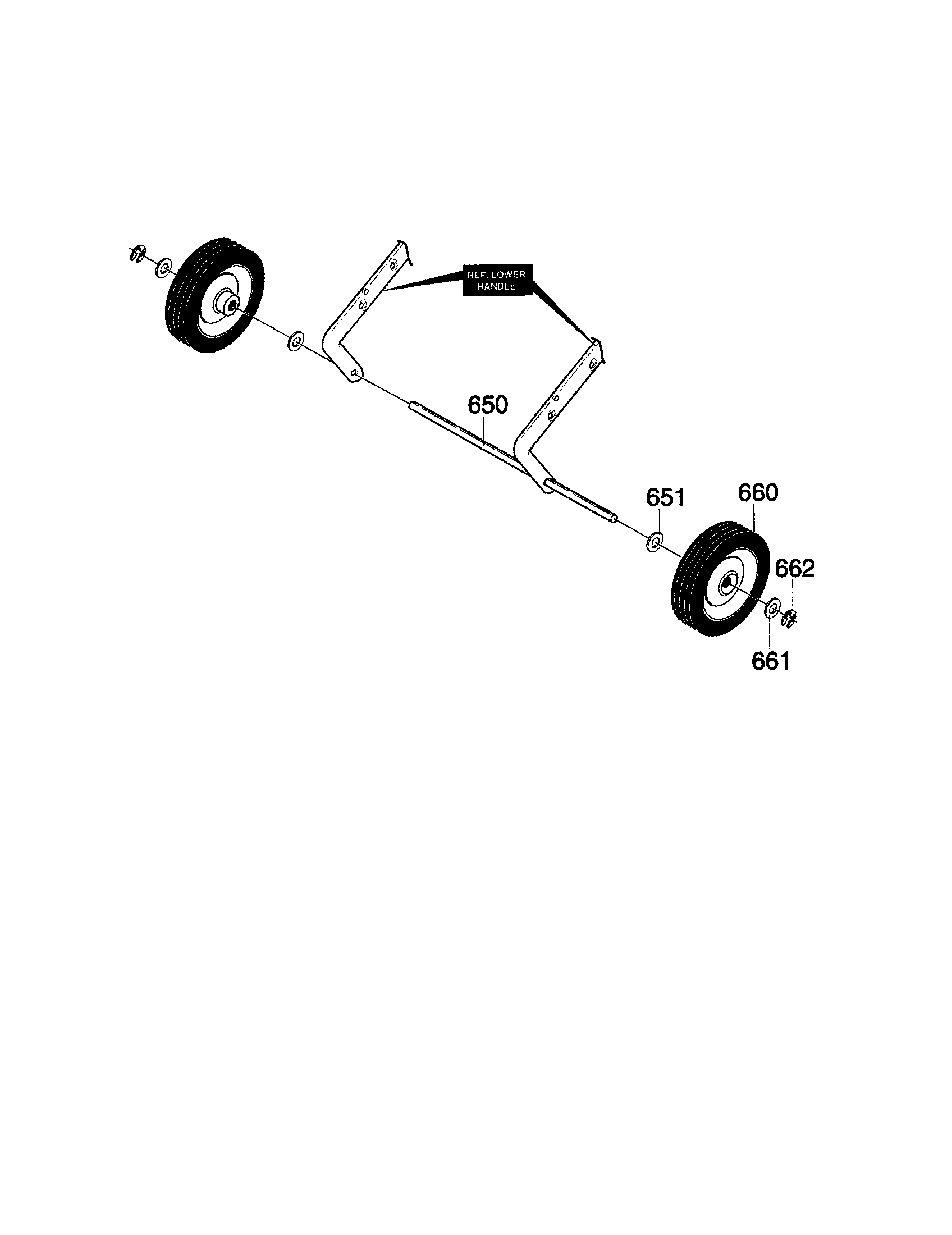

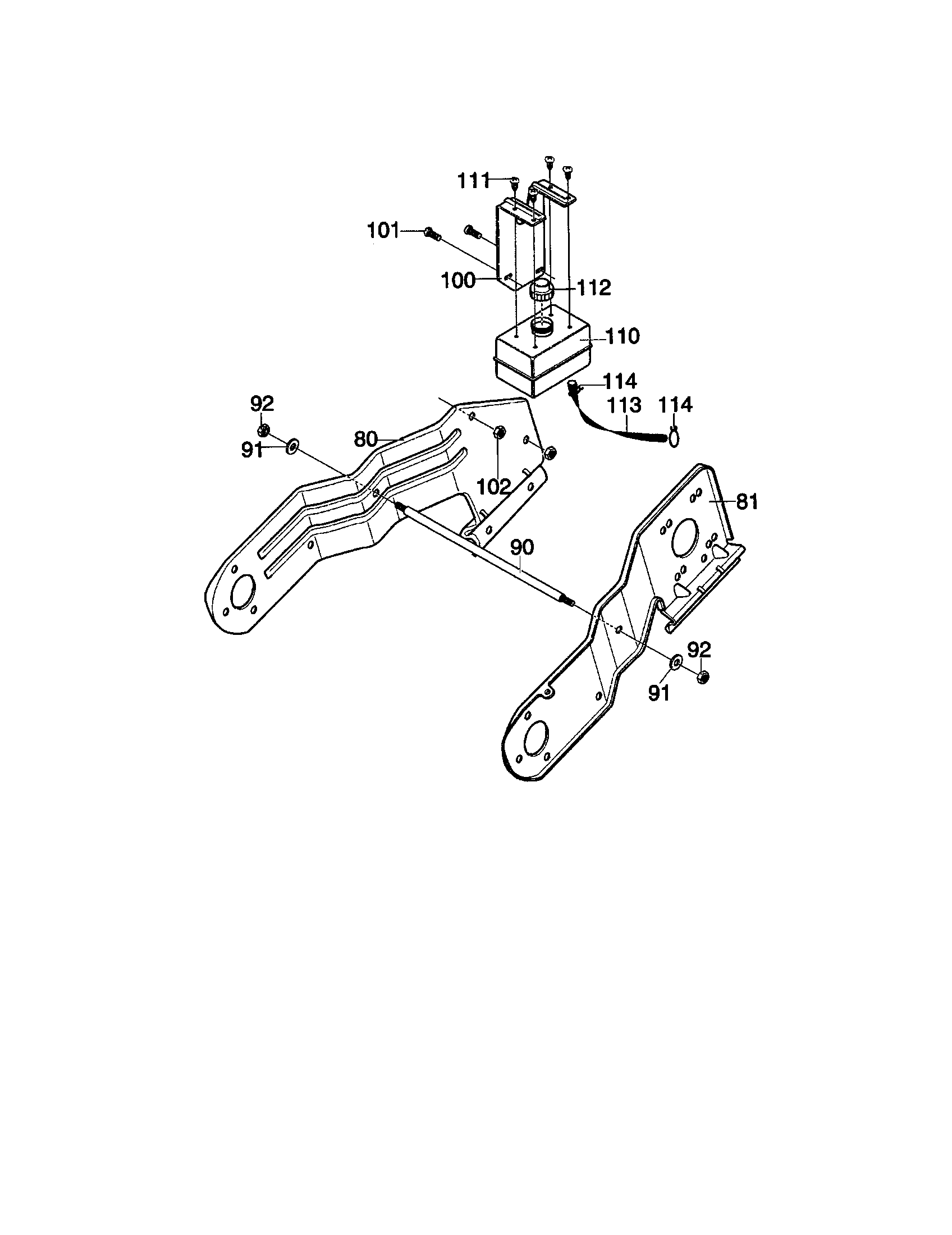

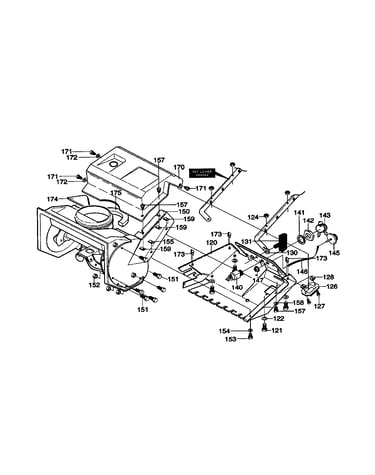

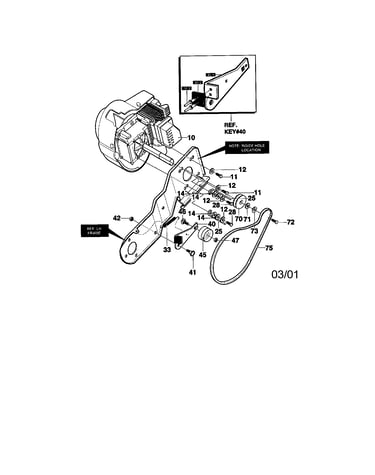

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
1/4-20 Hex N 780029
#489

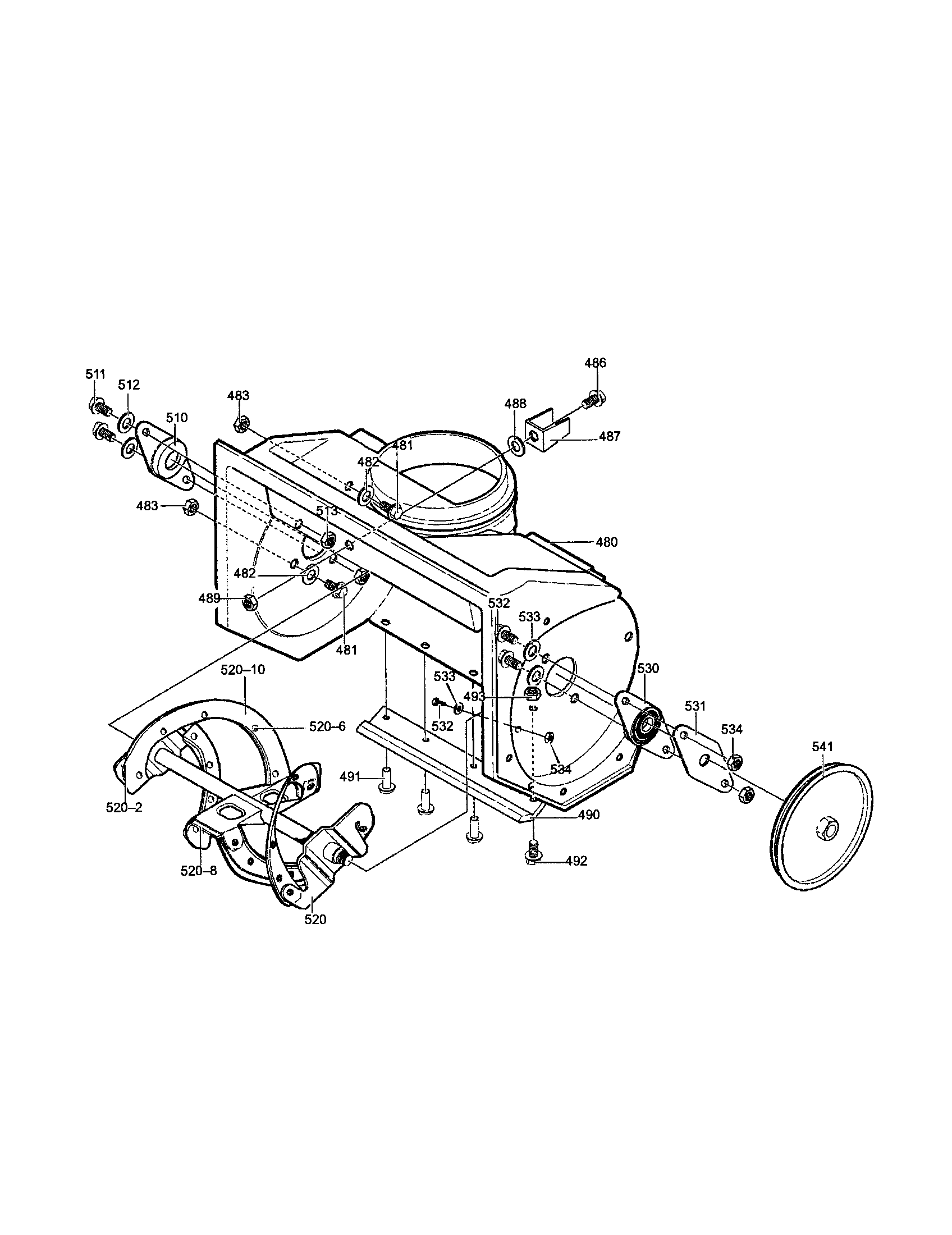

Auger housing diagram

1/4-20 hex n

Part #780029

Replaced by #703232

?
Manufacturer substitution
This part replaces 780029. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Boot Spring 308146
#743

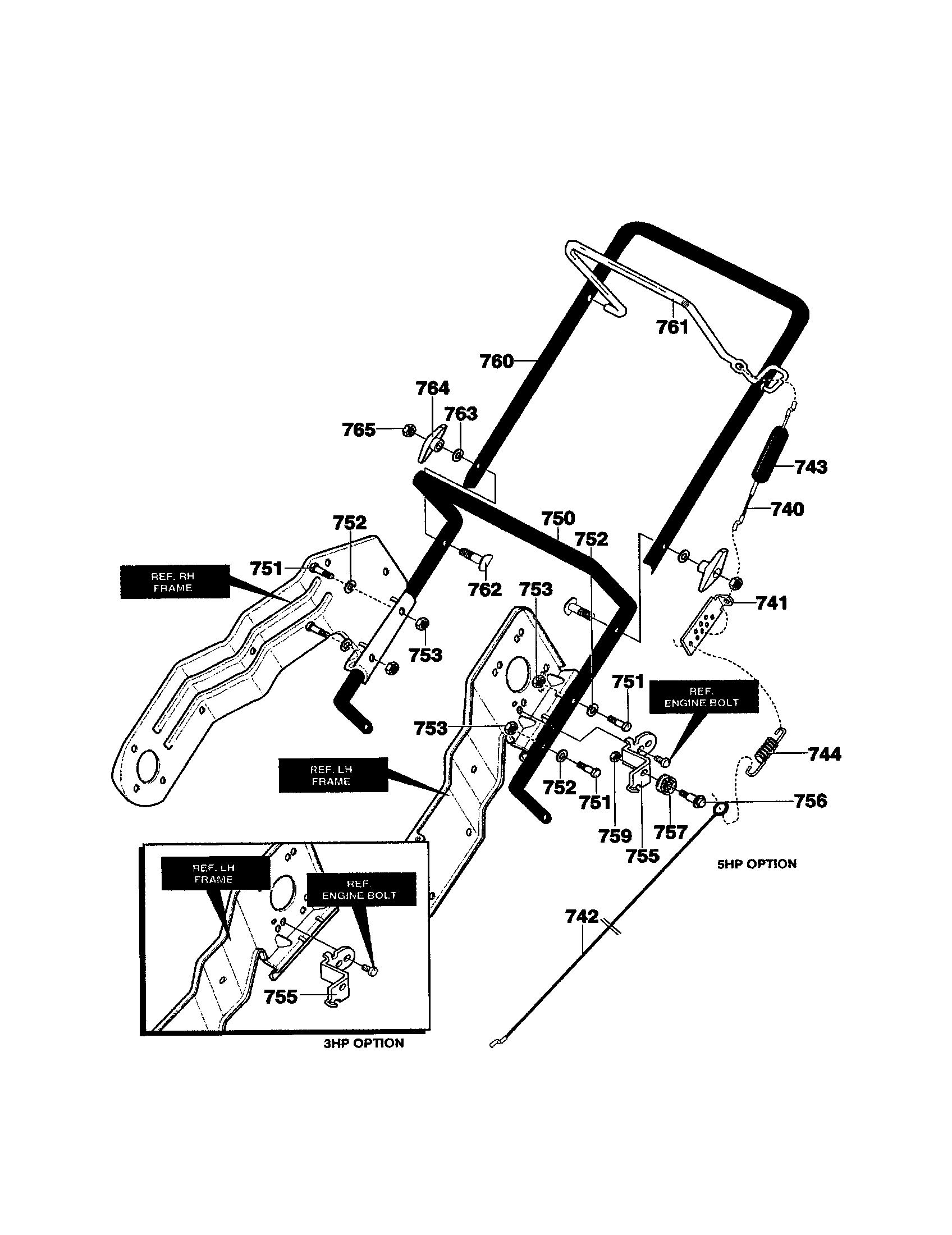

Handle assembly diagram

Boot spring

Part #308146

Replaced by #308146MA

?
Manufacturer substitution
This part replaces 308146. Substitute parts can look different from the original.
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Bearing 577023
#510

Auger housing diagram

Bearing

Part #577023

Replaced by #577023MA

?
Manufacturer substitution
This part replaces 577023. Substitute parts can look different from the original.
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Blade 302565
#520-02

Auger housing diagram

Blade

Part #302565

Replaced by #302565MA

?
Manufacturer substitution
This part replaces 302565. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$30.58 |
16% OFF Phone Price : $36.58
In Stock
Snowblower Formed Washer 311936
#763

Handle assembly diagram

Snowblower formed washer

Part #311936

Replaced by #311936MA

?
Manufacturer substitution
This part replaces 311936. Substitute parts can look different from the original.
This item is not returnable
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Bolt, 5/16-1 340720
#871

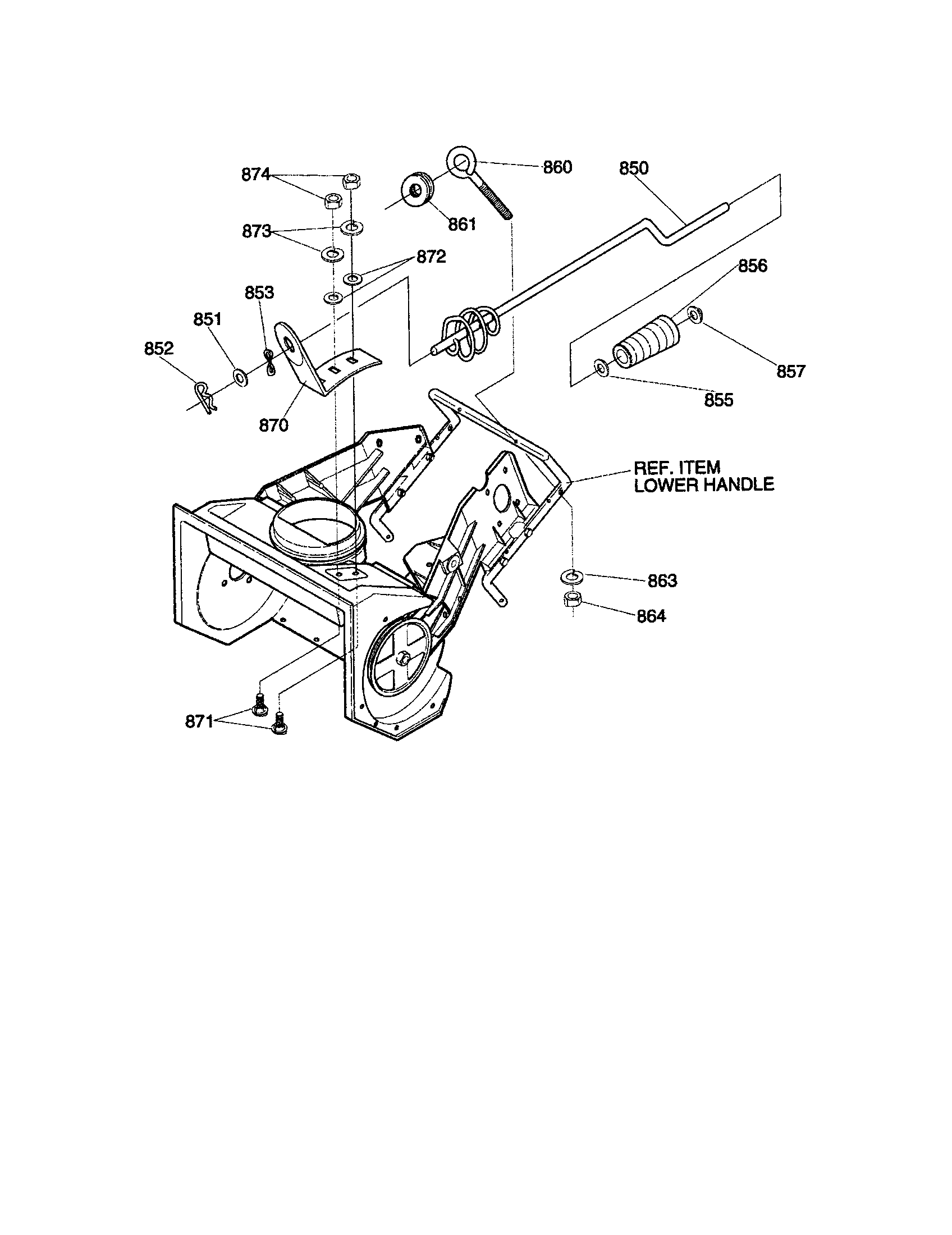

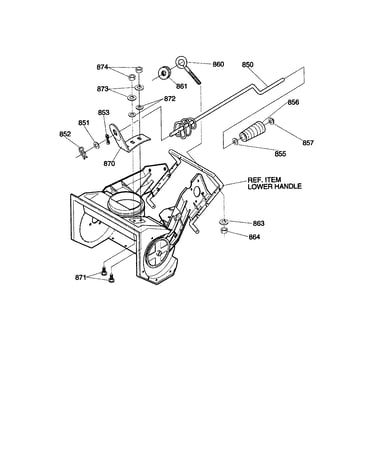

Chute rod assembly diagram

Bolt, 5/16-1

Part #340720

Replaced by #703225

?
Manufacturer substitution
This part replaces 340720. Substitute parts can look different from the original.
This item is not returnable
$6.29 |
14% OFF Phone Price : $7.29
In Stock
Lock Washer 71060
#873

Chute rod assembly diagram

Lock washer

Part #71060

Replaced by #703116

?
Manufacturer substitution
This part replaces 71060. Substitute parts can look different from the original.
This item is not returnable
$5.79 |
15% OFF Phone Price : $6.79
In Stock
Screw 578088
#606

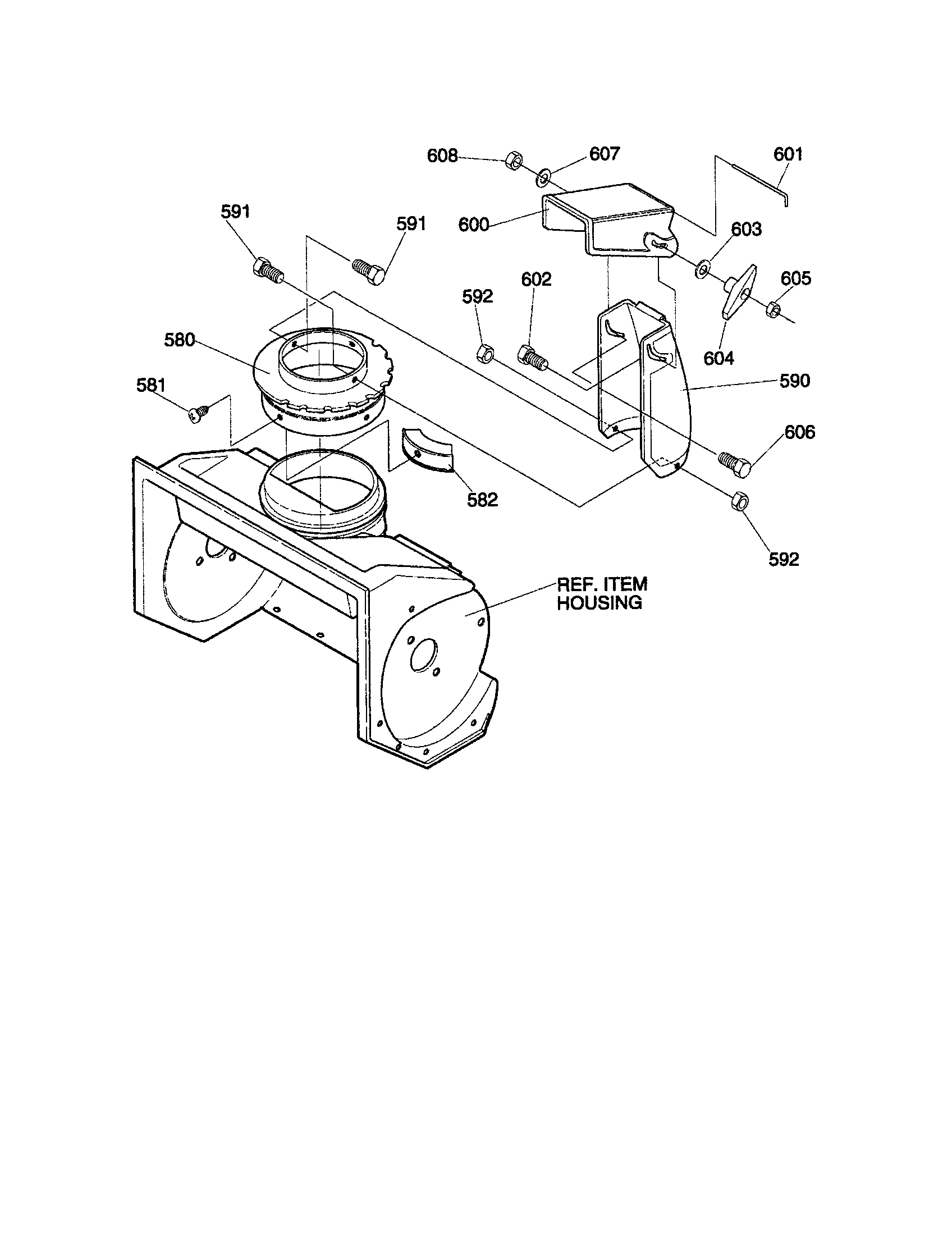

Discharge chute diagram
