DeWalt
Reciprocating Saw

Model # DWE305 TYPE 1 Official DeWalt reciprocating saw

Here are the diagrams and repair parts for Official DeWalt DWE305-TYPE-1 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Slider N192696
#60

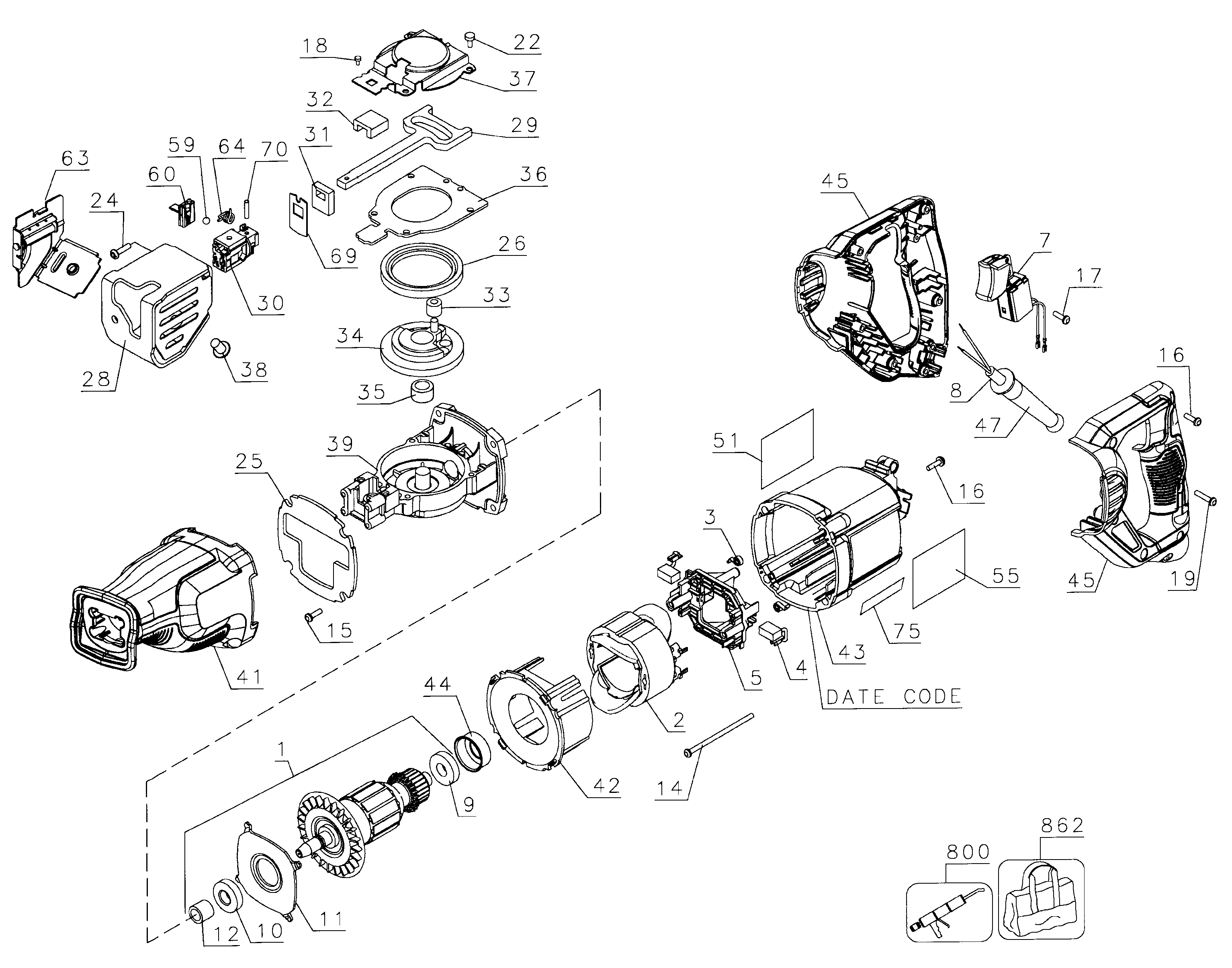

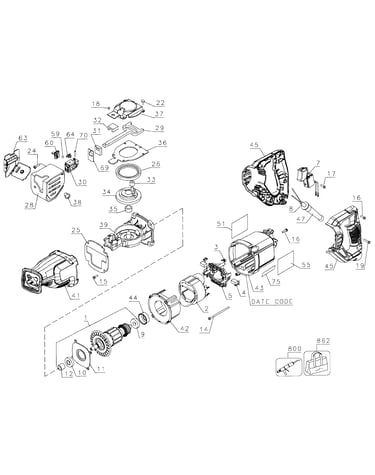

Saw assy diagram

Slider

Part #N192696

The manufacturer no longer makes this part, and there's no substitute part

Seal 609488-00
#31

Saw assy diagram

Seal

Part #609488-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Armature N408685
#1

Saw assy diagram

Dewalt armature

Part #N408685

The manufacturer no longer makes this part, and there's no substitute part

Plate 383476-00
#11

Saw assy diagram

Plate

Part #383476-00

The manufacturer no longer makes this part, and there's no substitute part

Torx Screw 330019-01
#17

Saw assy diagram

Torx screw

Part #330019-01

The manufacturer no longer makes this part, and there's no substitute part

Fan Baffle N056203
#42

Saw assy diagram

Fan baffle

Part #N056203

The manufacturer no longer makes this part, and there's no substitute part

Ball 000903-00
#59

Saw assy diagram

Ball

Part #000903-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Handle Set N387333
#45

Saw assy diagram

Dewalt handle set

Part #N387333

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring 383387-00
#3

Saw assy diagram

Brush spring

Part #383387-00

The manufacturer no longer makes this part, and there's no substitute part

Spring N389778
#64

Saw assy diagram

Spring

Part #N389778

The manufacturer no longer makes this part, and there's no substitute part
