Model # 580320460 Official Craftsman 1350-watt portable alternator

Here are the diagrams and repair parts for Official Craftsman 580320460 1350-watt portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Screw 24419
#20

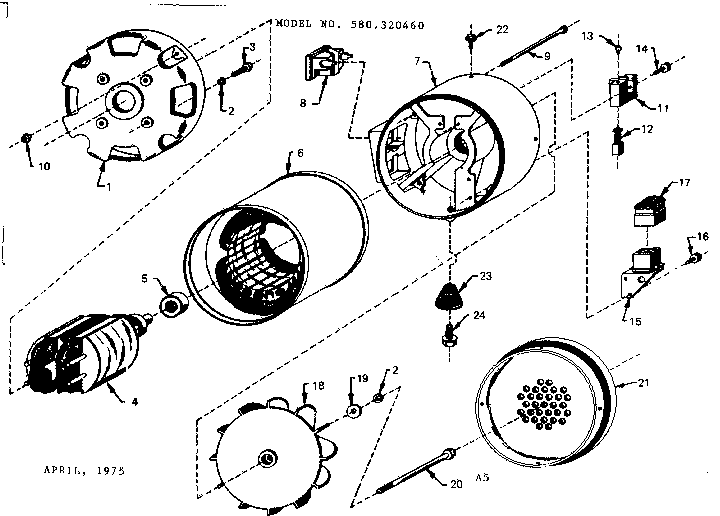

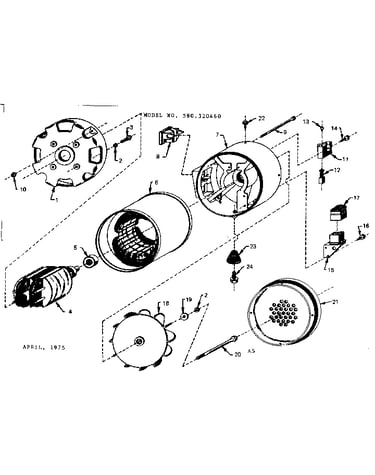

Stator assembly diagram

Screw

Part #24419

Replaced by #24419GS

?
Manufacturer substitution
This part replaces 24419. Substitute parts can look different from the original.
$24.27
In Stock
Taptite Scrw 24413
#22

Stator assembly diagram

Taptite scrw

Part #24413

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22142
#3

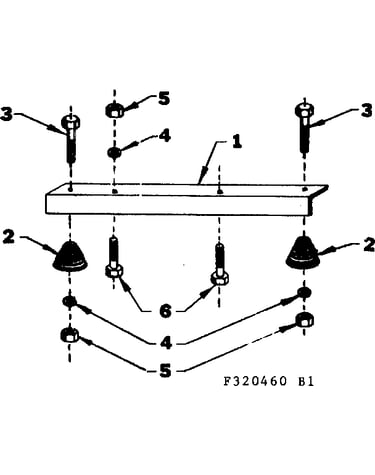

Engine mounting support diagram

Cap screw

Part #22142

The manufacturer no longer makes this part, and there's no substitute part

Spring 23594
Spring

Part #23594

The manufacturer no longer makes this part, and there's no substitute part

Support 24509
#1

Engine mounting support diagram

Support

Part #24509

The manufacturer no longer makes this part, and there's no substitute part

Bearing 24049
#5

Stator assembly diagram

Bearing

Part #24049

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22129
Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly 44721
#6

Stator assembly diagram

Stator assembly

Part #44721

The manufacturer no longer makes this part, and there's no substitute part

Screw 24490
#24

Stator assembly diagram

Screw

Part #24490

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22283
#6

Engine mounting support diagram

Cap screw

Part #22283

The manufacturer no longer makes this part, and there's no substitute part
