Model # CVE4180S-C Official Jenn-Air electric counter unit cooktop

Here are the diagrams and repair parts for Official Jenn-Air CVE4180S-C electric counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

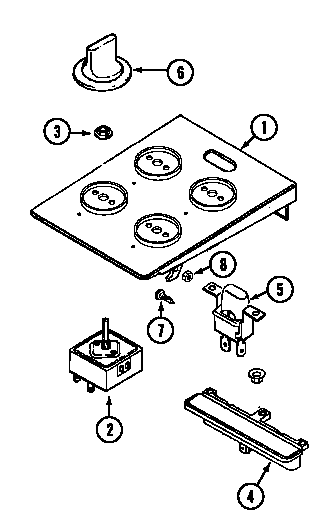

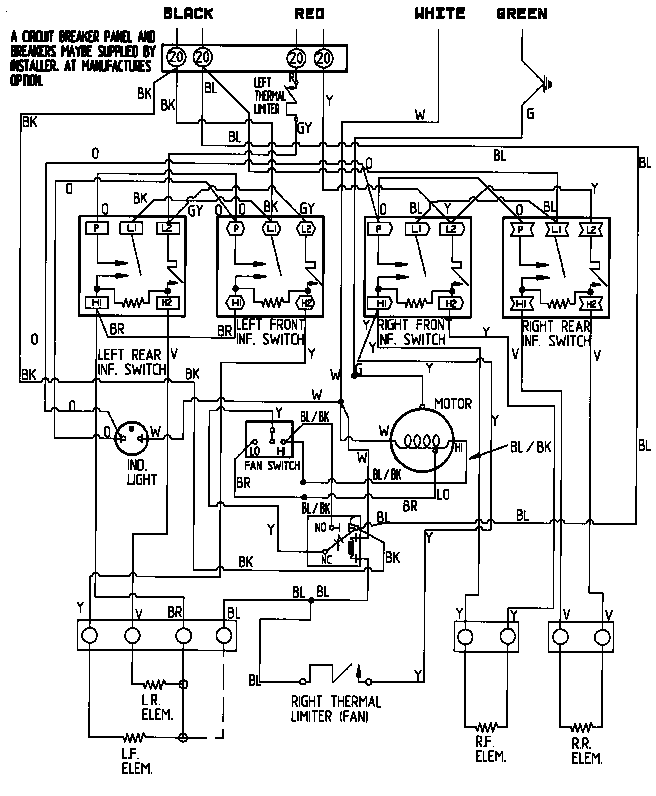

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Range Downdraft Vent Grease Filter 707929
#16

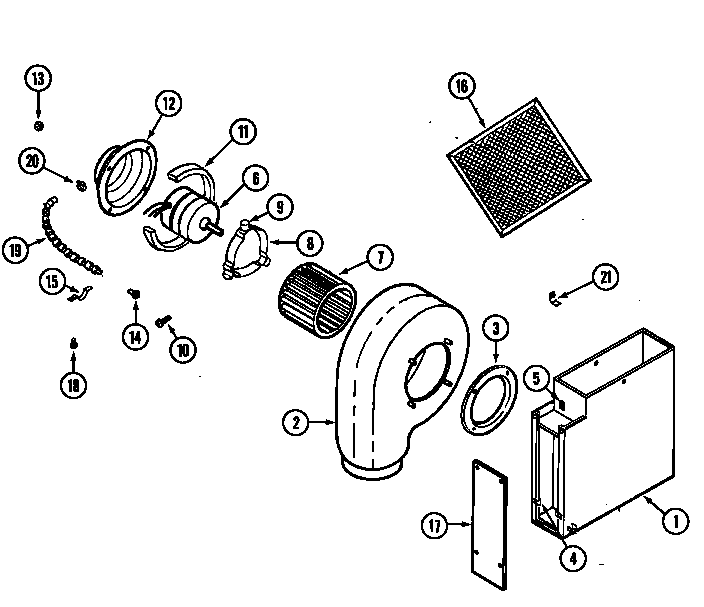

Blower plenum diagram

Range downdraft vent grease filter

Part #707929

Replaced by #WP707929

?
Manufacturer substitution
This part replaces 707929. Substitute parts can look different from the original.
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Element 8" 5 04100166
#19

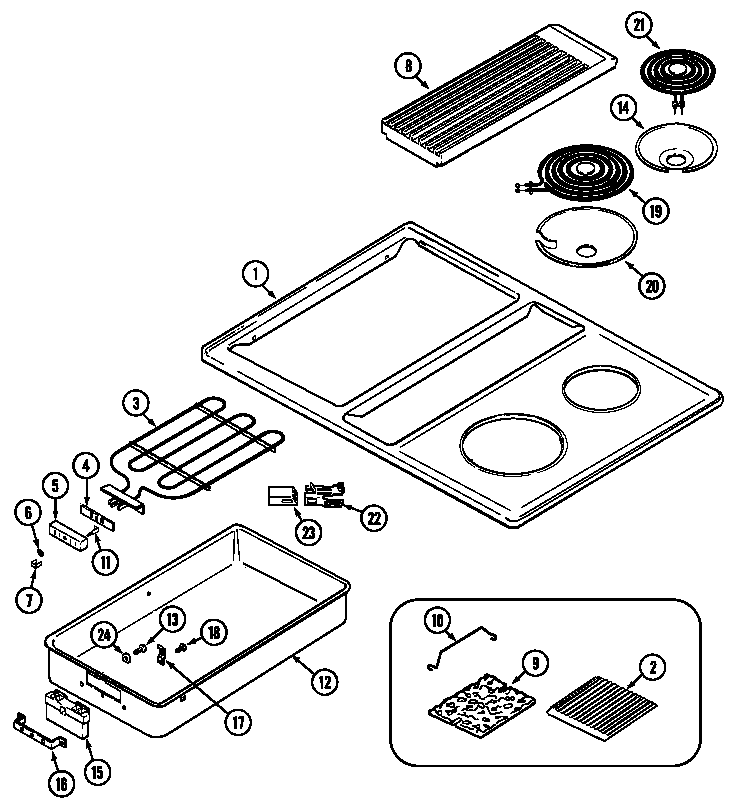

Main top diagram

Element 8" 5

Part #04100166

Replaced by #WPY04100166

?
Manufacturer substitution
This part replaces 04100166. Substitute parts can look different from the original.
$33.39 |
15% OFF Phone Price : $39.39
In Stock
Blower Wheel 707985
#7

Blower plenum diagram

Blower wheel

Part #707985

Replaced by #WPY707985

?
Manufacturer substitution
This part replaces 707985. Substitute parts can look different from the original.
$71.68 |
8% OFF Phone Price : $77.68
In Stock
Screw 707347
#5A

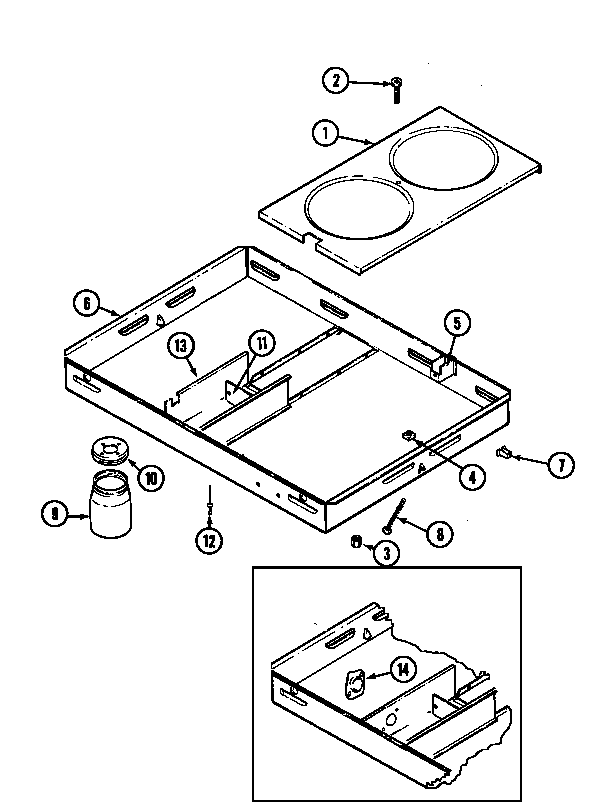

Burner box assy. diagram

Screw

Part #707347

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 707347. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Drip Pan 715877
#14

Main top diagram

Range drip pan

Part #715877

This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Range Drip Pan 715878
#20

Main top diagram

Range drip pan

Part #715878

This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Receptacle 704146
#23

Main top diagram

Receptacle

Part #704146

Replaced by #WP74007474

?
Manufacturer substitution
This part replaces 704146. Substitute parts can look different from the original.
$51.99 |
10% OFF Phone Price : $57.99
In Stock
Fan Relay 71001579
#21A

Blower plenum diagram

Fan relay

Part #71001579

Replaced by #12001452

?
Manufacturer substitution
This part replaces 71001579. Substitute parts can look different from the original.
$86.27
In Stock
Band Motor 707393
#8

Blower plenum diagram

Band motor

Part #707393

Replaced by #3415F003-51

?
Manufacturer substitution
This part replaces 707393. Substitute parts can look different from the original.
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Rivet 701662
#12

Burner box assy. diagram

Rivet

Part #701662

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 701662. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
