Model # 143541112 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143541112 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

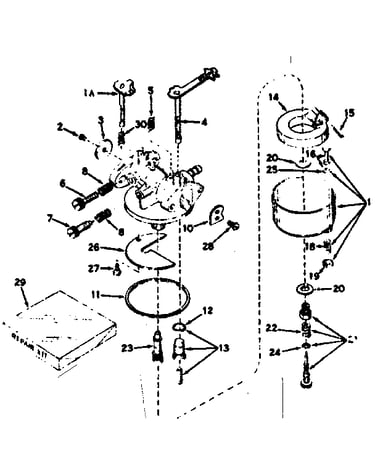

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |

Fuel Line 29774
#118

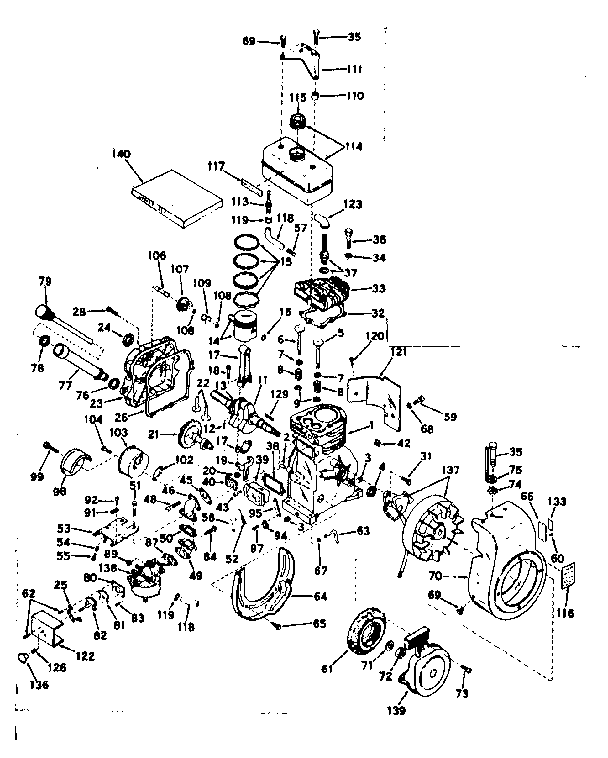

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

/fuel Clamp 26460
#119

Basic engine diagram

/fuel clamp

Part #26460

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#94

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#28

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Screw 650176
#48

Basic engine diagram

Screw

Part #650176

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Spacer 28212
#110

Basic engine diagram

Spacer

Part #28212

The manufacturer no longer makes this part, and there's no substitute part

Rod 31334
#63

Basic engine diagram

Rod

Part #31334

The manufacturer no longer makes this part, and there's no substitute part

Spring 31342
#54

Basic engine diagram

Spring

Part #31342

The manufacturer no longer makes this part, and there's no substitute part

Screw 650539
#99

Basic engine diagram

Screw

Part #650539

The manufacturer no longer makes this part, and there's no substitute part
