Kenmore
Canister Vacuum

Model # 1162395490 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 1162395490 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Connector 4148552
#41

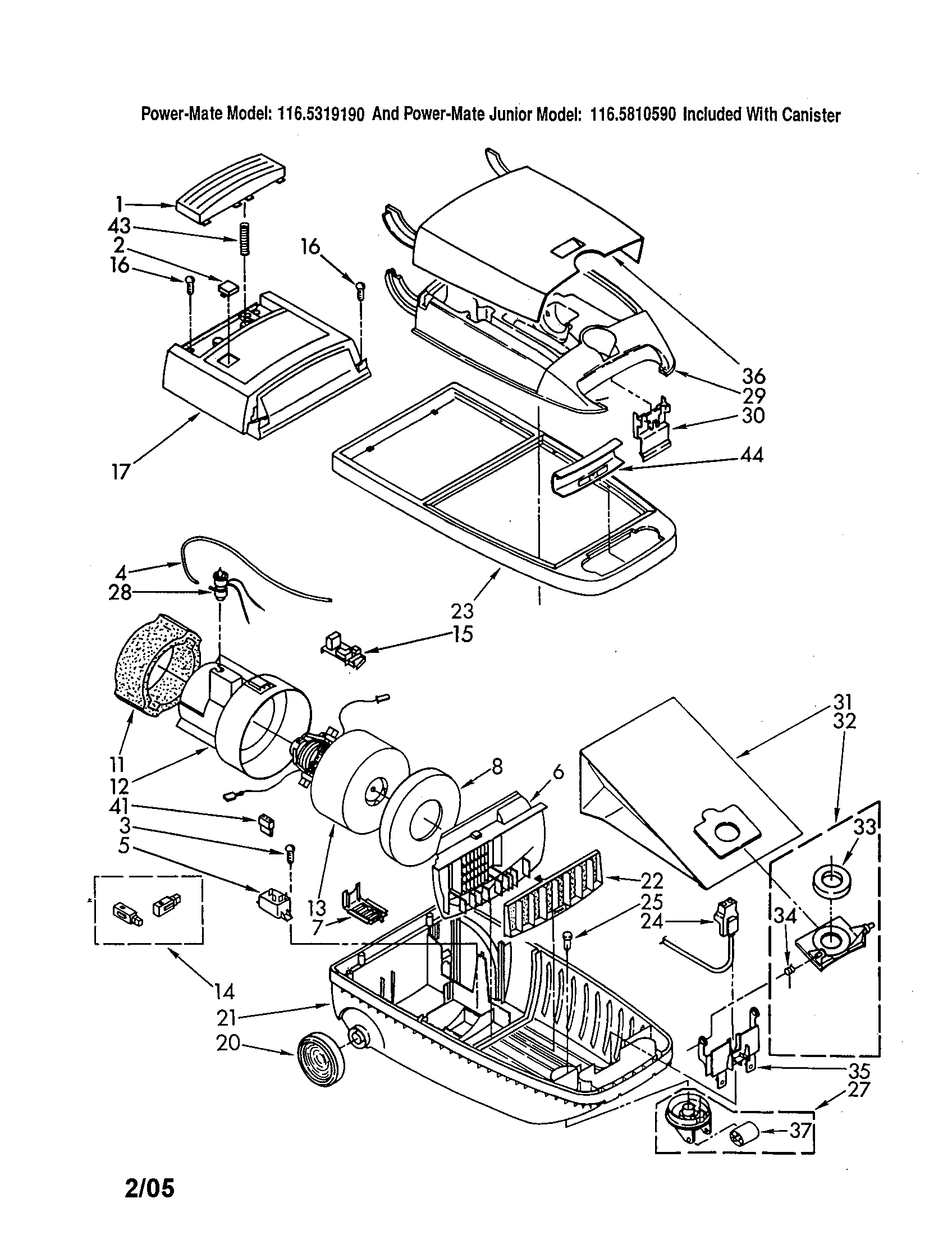

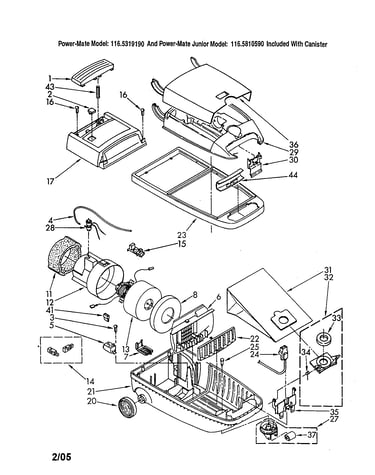

Canister diagram

Connector

Part #4148552

Replaced by #WP62889

?
Manufacturer substitution
This part replaces 4148552. Substitute parts can look different from the original.
This item is not returnable
$5.90 |
14% OFF Phone Price : $6.90
In Stock
Vacuum Grip Handle 4155620
#44

Canister diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Indicator Light Lens 4151920
#2

Canister diagram

Vacuum indicator light lens

Part #4151920

The manufacturer no longer makes this part, and there's no substitute part

Spring 725419
#16

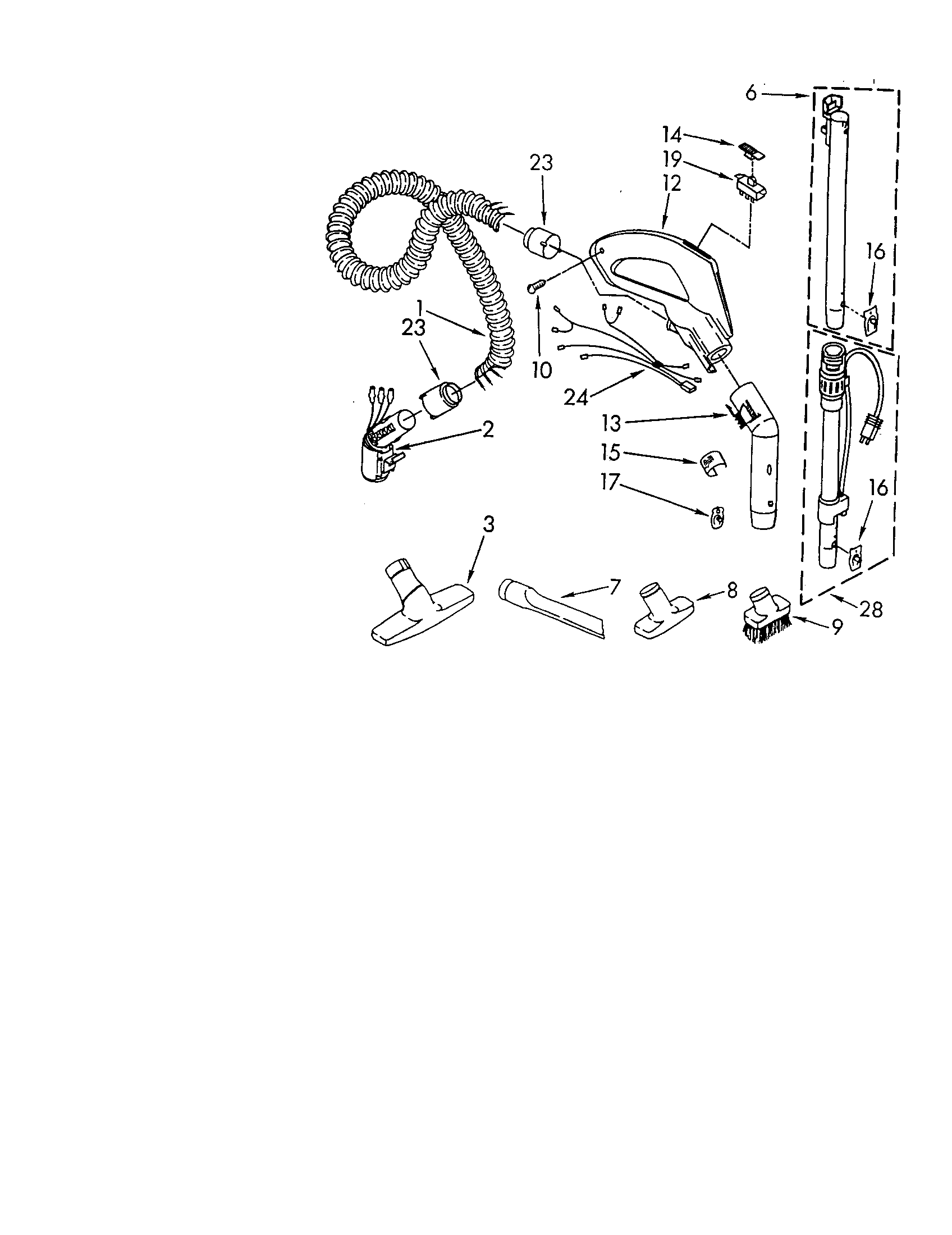

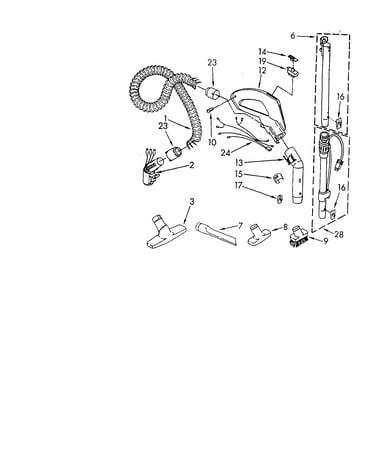

Hose and attachment diagram

Spring

Part #725419

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4152415
#9

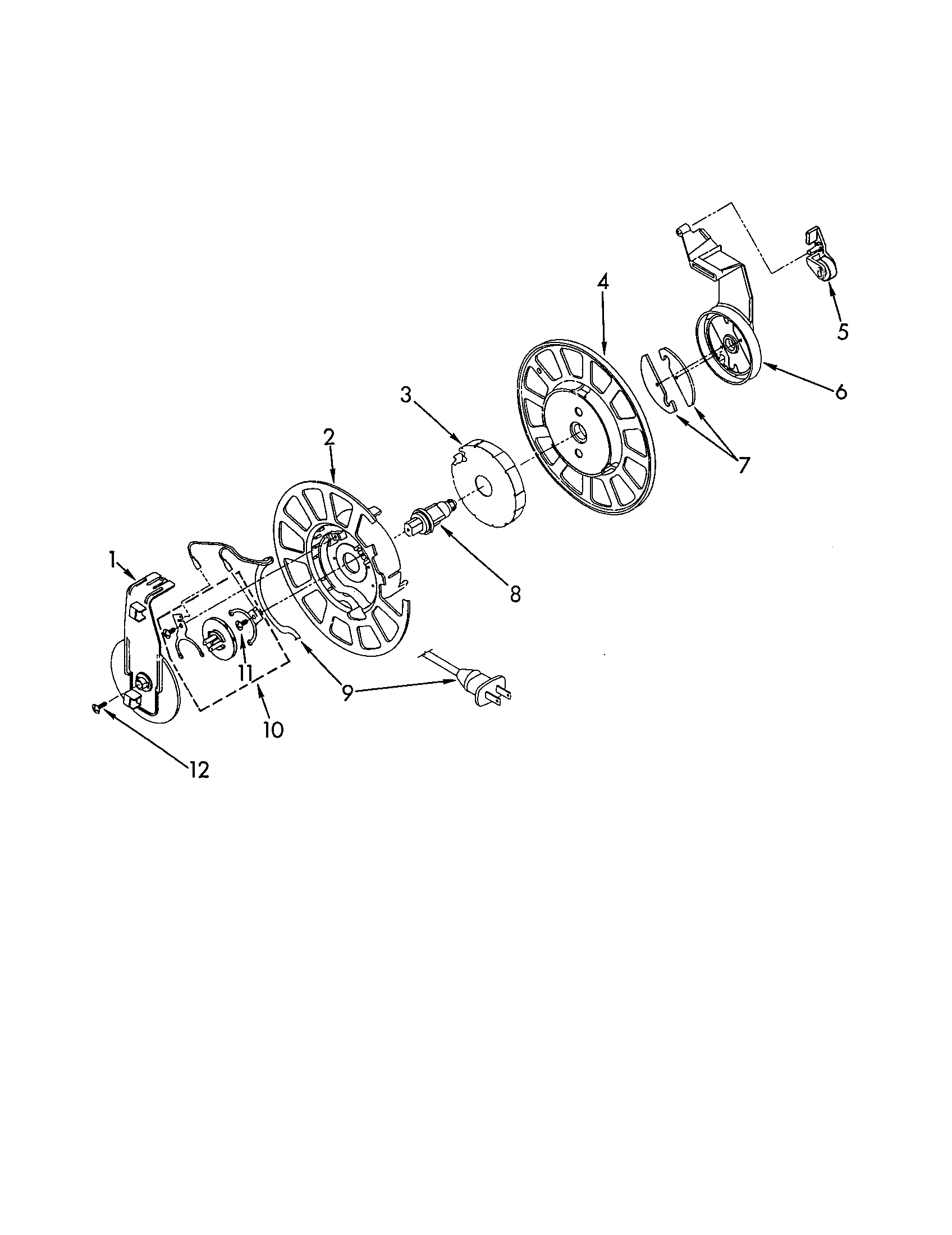

Power cord reel diagram

Power cord

Part #4152415

The manufacturer no longer makes this part, and there's no substitute part

Strike (gray) 4147967
#35

Canister diagram

Strike (gray)

Part #4147967

The manufacturer no longer makes this part, and there's no substitute part

Adapter 4152863
#23

Hose and attachment diagram

Adapter

Part #4152863

The manufacturer no longer makes this part, and there's no substitute part

Suction Control 4147159
#15

Hose and attachment diagram

Suction control

Part #4147159

The manufacturer no longer makes this part, and there's no substitute part

Lid Tool 4152386
#36

Canister diagram

Lid tool

Part #4152386

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4155598
#6

Power cord reel diagram

Bracket

Part #4155598

The manufacturer no longer makes this part, and there's no substitute part
