Model # HR-XVC37US Official JVC dvd/vcr

Here are the diagrams and repair parts for Official JVC HR-XVC37US dvd/vcr, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Belt LE40897-001A
#NI

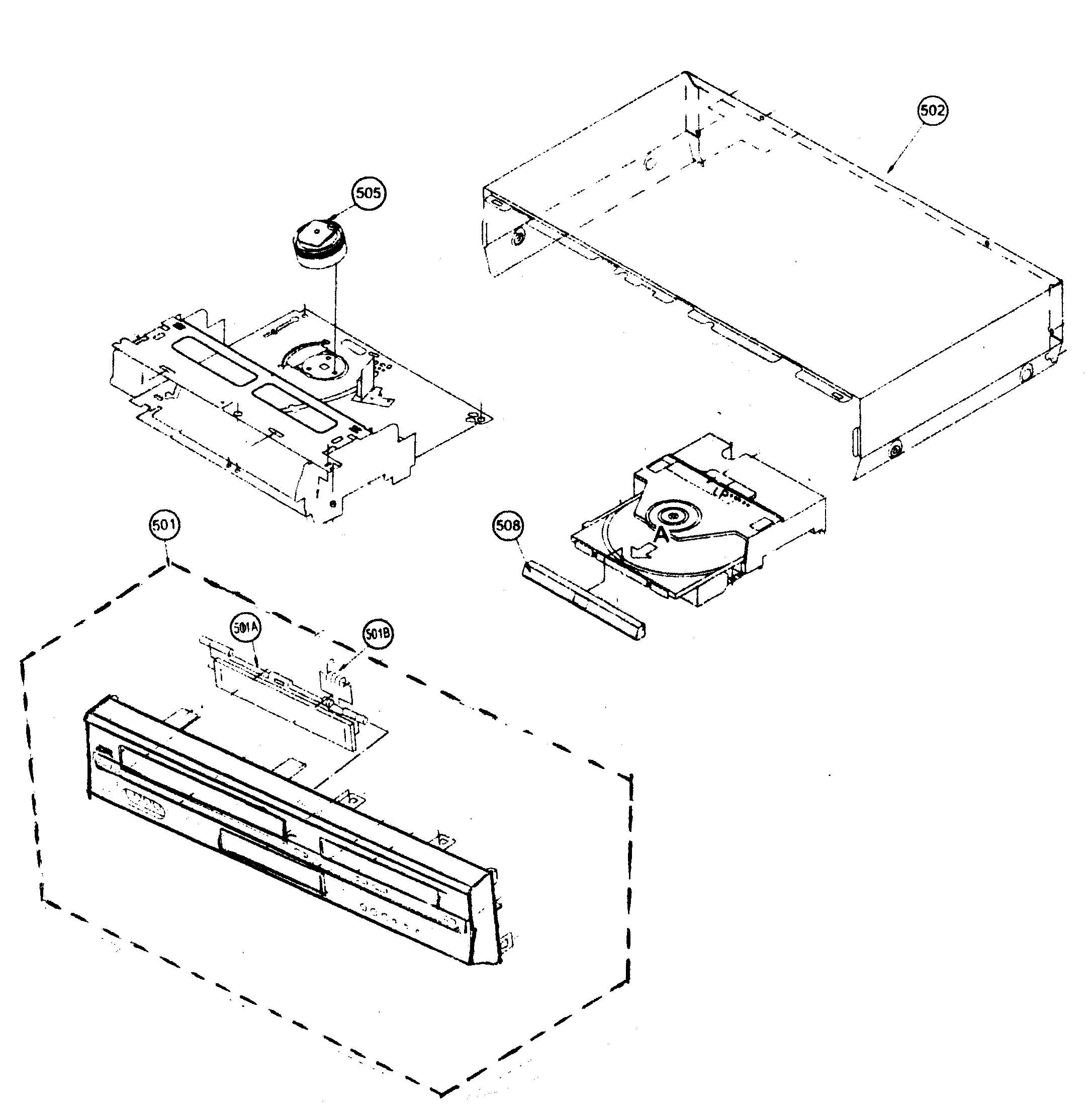

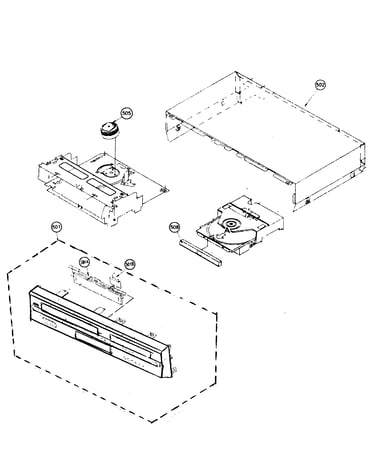

Cabinet parts diagram

Belt

Part #LE40897-001A

The manufacturer no longer makes this part, and there's no substitute part

Foot LP31348-001A
#NI

Cabinet parts diagram

Foot

Part #LP31348-001A

The manufacturer no longer makes this part, and there's no substitute part

Load Motor QAR0289-001
#NI

Cabinet parts diagram

Load motor

Part #QAR0289-001

The manufacturer no longer makes this part, and there's no substitute part

Motor QAR0316-001
#NI

Cabinet parts diagram

Motor

Part #QAR0316-001

The manufacturer no longer makes this part, and there's no substitute part

Jvc Gear LP40798-002A
#NI

Cabinet parts diagram

Jvc gear

Part #LP40798-002A

The manufacturer no longer makes this part, and there's no substitute part

Jvc Drum PDV2531D
#505

Cabinet parts diagram

Jvc drum

Part #PDV2531D

The manufacturer no longer makes this part, and there's no substitute part

Motor QAR0197-001
#NI

Cabinet parts diagram

Motor

Part #QAR0197-001

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit AN3663FBP
#NI

Cabinet parts diagram

Integrated circuit

Part #AN3663FBP

The manufacturer no longer makes this part, and there's no substitute part

Jvc Transformer QQS0219-001
#NI

Cabinet parts diagram

Jvc transformer

Part #QQS0219-001

The manufacturer no longer makes this part, and there's no substitute part

Jvc Service Manual NO.YD030
#NI

Cabinet parts diagram

Jvc service manual

Part #NO.YD030

The manufacturer no longer makes this part, and there's no substitute part
