Amana
Countertop Microwave

Model # LA15300.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana LA15300A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Shelf (includes Sealant) M50D52
#4A

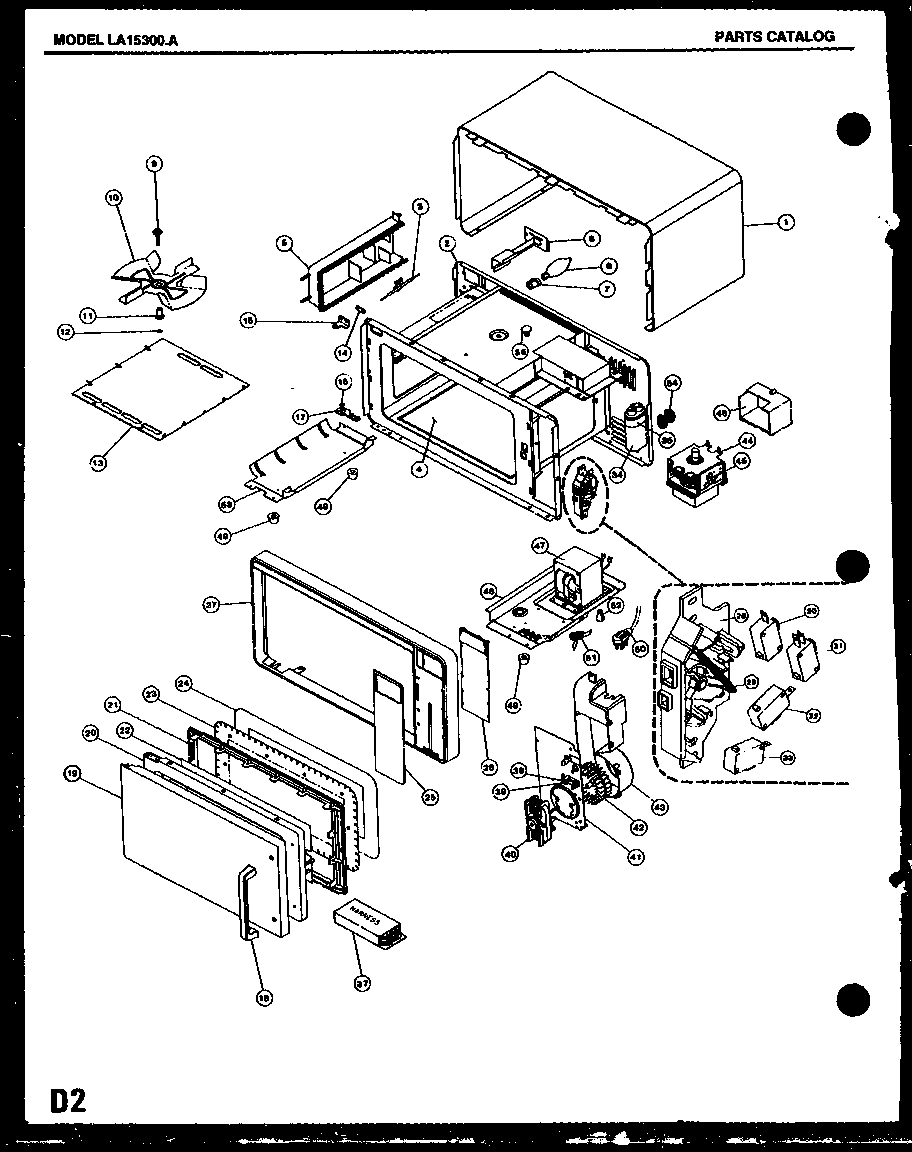

Microwave parts (la15300.a) diagram

Shelf (includes sealant)

Part #M50D52

The manufacturer no longer makes this part, and there's no substitute part

Primary Interlock Switch M14D294
#31

Microwave parts (la15300.a) diagram

Primary interlock switch

Part #M14D294

The manufacturer no longer makes this part, and there's no substitute part

Lower Hinge M8D369
#17A

Microwave parts (la15300.a) diagram

Lower hinge

Part #M8D369

The manufacturer no longer makes this part, and there's no substitute part

Screw, Cord Cording M1D368
#50B

Microwave parts (la15300.a) diagram

Screw, cord cording

Part #M1D368

The manufacturer no longer makes this part, and there's no substitute part

Screw, Duct Mounting M1D963
Screw, duct mounting

Part #M1D963

The manufacturer no longer makes this part, and there's no substitute part

Interlock Switch Module M14D253
#29A

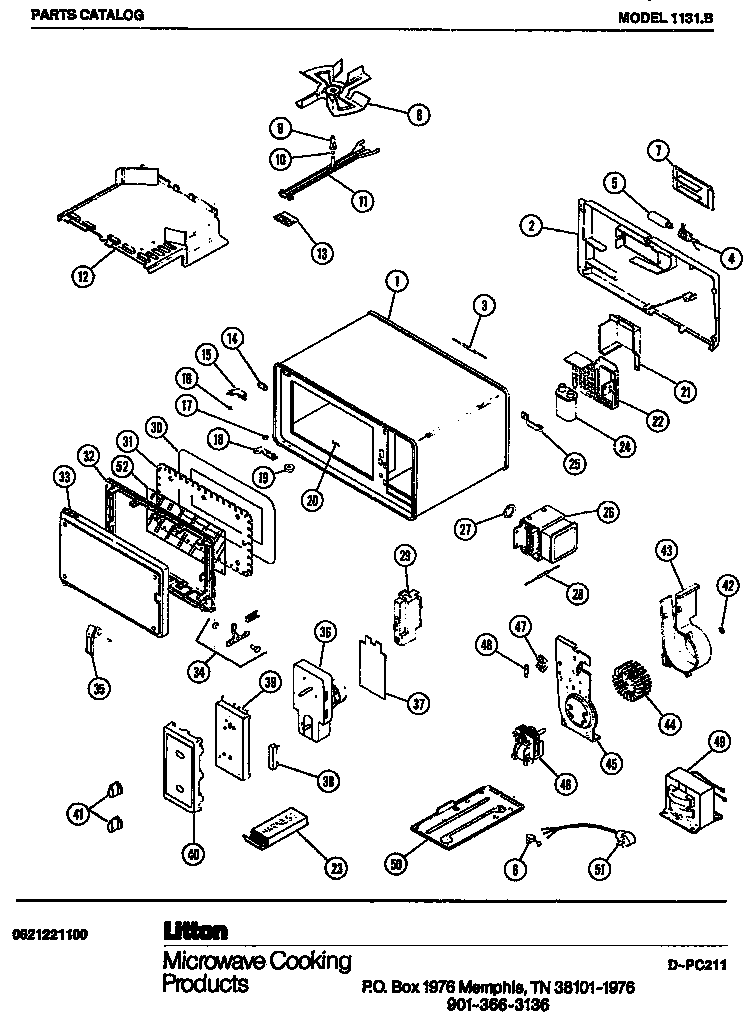

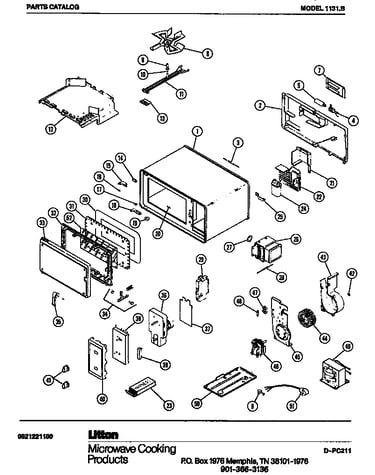

Microwave parts (1131.b) diagram

Interlock switch module

Part #M14D253

The manufacturer no longer makes this part, and there's no substitute part

Door Logic Switch M14D297
#30

Microwave parts (la15300.a) diagram

Door logic switch

Part #M14D297

The manufacturer no longer makes this part, and there's no substitute part

Barrier, Combo-timer M25D85
#37

Microwave parts (1131.b) diagram

Barrier, combo-timer

Part #M25D85

The manufacturer no longer makes this part, and there's no substitute part

Lead Cover M20D257
#21A

Microwave parts (1131.b) diagram

Lead cover

Part #M20D257

The manufacturer no longer makes this part, and there's no substitute part

Switch, Interlock Monitor M14D296
#33

Microwave parts (la15300.a) diagram

Switch, interlock monitor

Part #M14D296

The manufacturer no longer makes this part, and there's no substitute part
