Model # BOS-40 Official Ryobi sander

Here are the diagrams and repair parts for Official Ryobi BOS-40 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

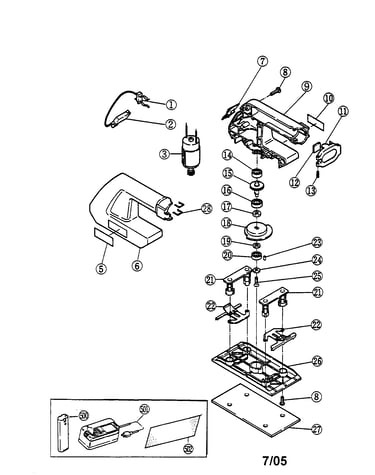

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Brand Seal 6921071
#5

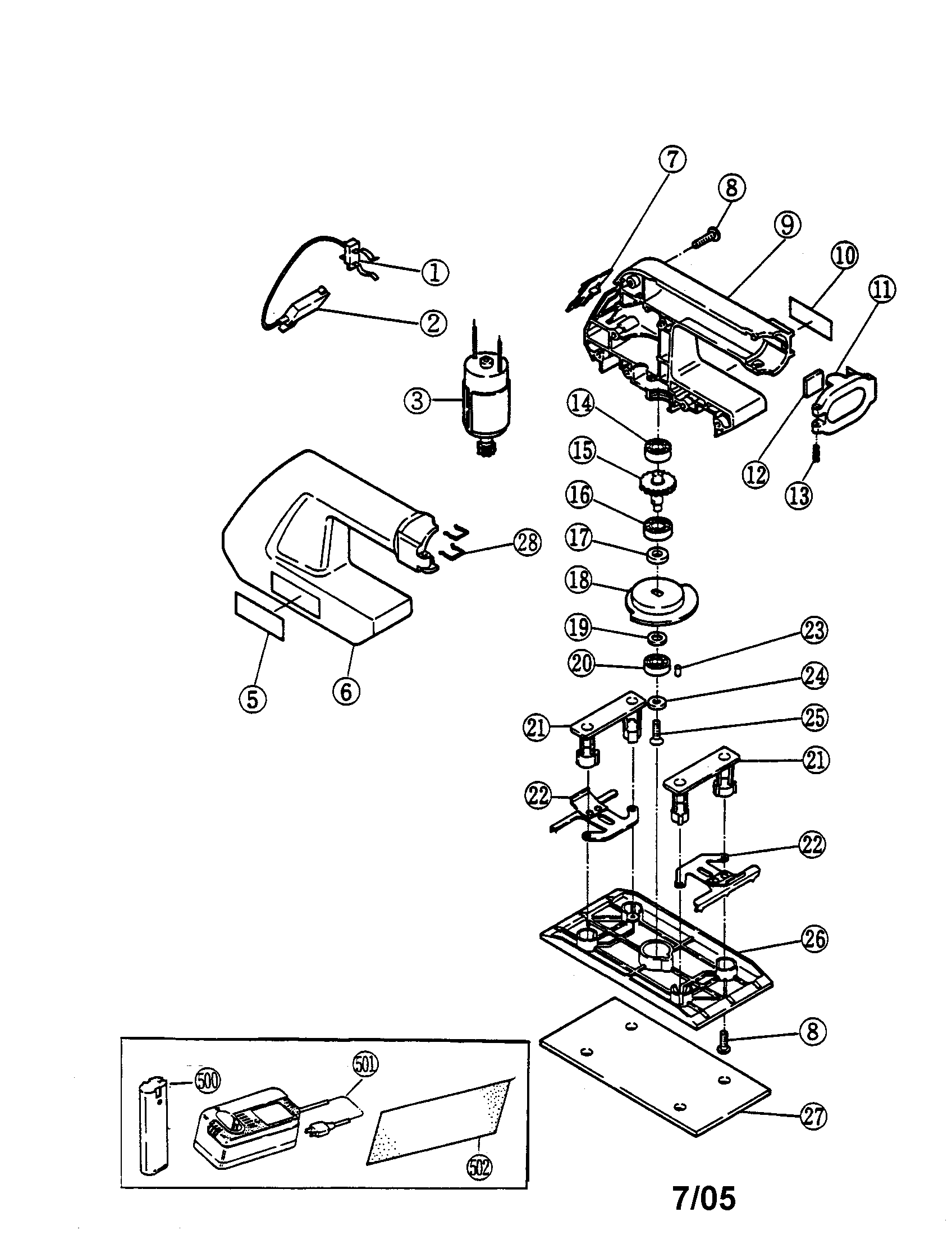

Sander diagram

Brand seal

Part #6921071

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 9674318

#NI01

All parts diagram

Lead wire

Part #9674318

The manufacturer no longer makes this part, and there's no substitute part

Clamper (2) 6090088
#22

Sander diagram

Clamper (2)

Part #6090088

The manufacturer no longer makes this part, and there's no substitute part

Collar (a) 6900729
#17

Sander diagram

Collar (a)

Part #6900729

The manufacturer no longer makes this part, and there's no substitute part

Band (2) 6180479
#28

Sander diagram

Band (2)

Part #6180479

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing #609zz 9820609
#16

Sander diagram

Ball bearing #609zz

Part #9820609

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing #627zz 9820627
#14

Sander diagram

Ball bearing #627zz

Part #9820627

The manufacturer no longer makes this part, and there's no substitute part

Pad 6360342
#26

Sander diagram

Pad

Part #6360342

The manufacturer no longer makes this part, and there's no substitute part

Terminal 6090117
#1

Sander diagram

Terminal

Part #6090117

The manufacturer no longer makes this part, and there's no substitute part

Guard Assembly (see Page 6)) N/P
#502

Sander diagram

Guard assembly (see page 6))

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
