Model # C8DNL075F16A1 Official ICP 80+ single-stage gas furnace

Here are the diagrams and repair parts for Official ICP C8DNL075F16A1 80+ single-stage gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#12

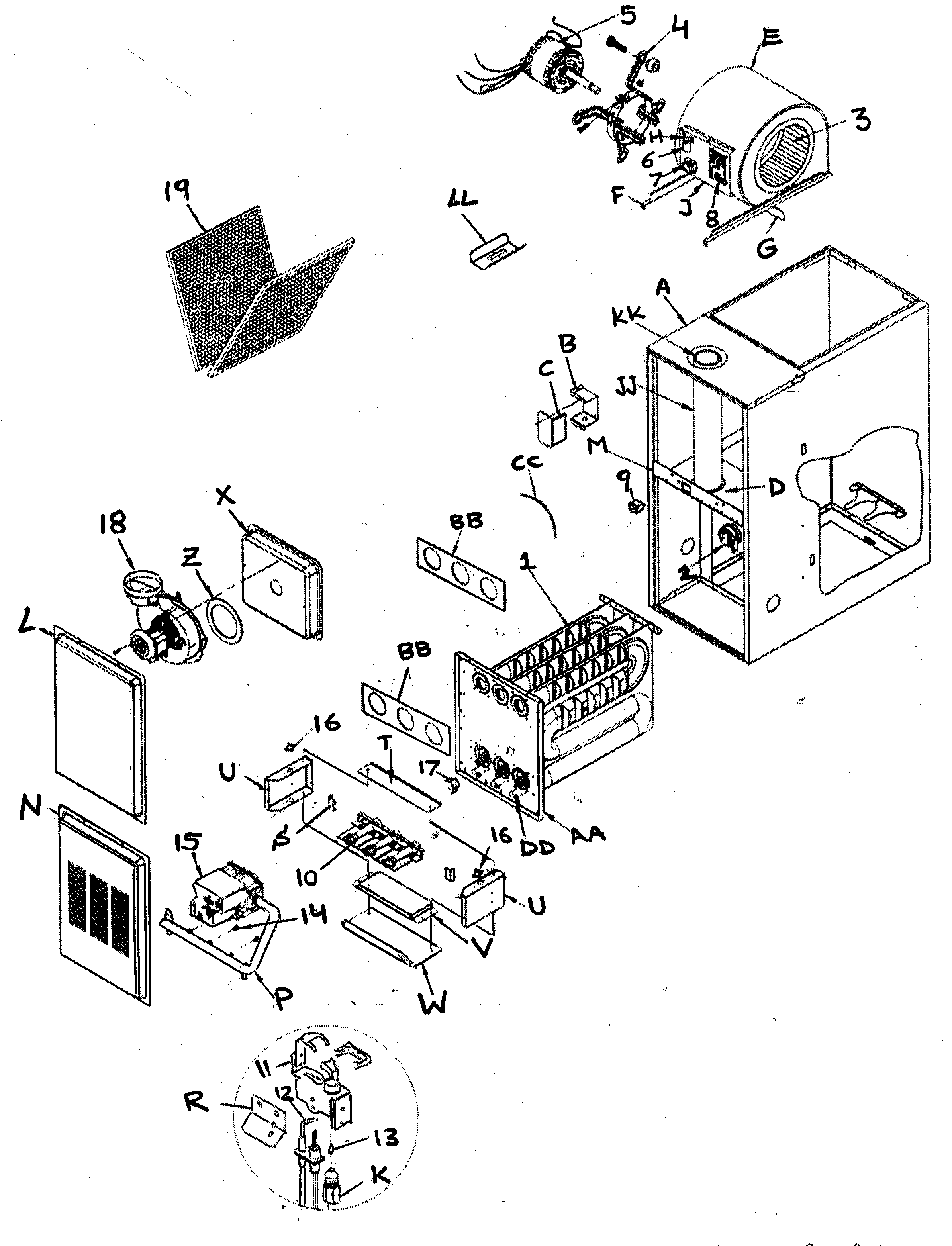

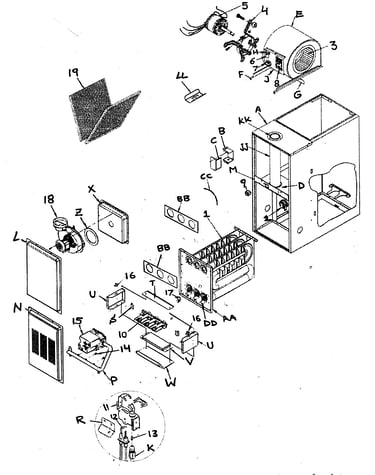

Cabinet parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Switch 1013529
#2

Cabinet parts diagram

Switch

Part #1013529

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1013529. Substitute parts can look different from the original.
$62.55 |
9% OFF Phone Price : $68.55
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#3

Cabinet parts diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
7% OFF Phone Price : $172.43
In Stock
Shield 1013975
#JJ

Cabinet parts diagram

Shield

Part #1013975

$56.11
In Stock
Gasket 1013540
#Z

Cabinet parts diagram

Gasket

Part #1013540

This item is not returnable
$3.23
In Stock
Manifold 1013479
#P

Cabinet parts diagram

Manifold

Part #1013479

$267.82
In Stock
Limit Switch 1009169
#17

Cabinet parts diagram

Limit switch

Part #1009169

$24.64
In Stock
Furnace Temperature Limit Switch 1013102
#16

Cabinet parts diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Blower Fan Motor (replaces 1172488) 1009052
#5

Cabinet parts diagram

Furnace blower fan motor (replaces 1172488)

Part #1009052

$493.80 |
$12.00 OFF Phone Price : $505.80
In Stock
Furnace Blower Fan Housing Hanger Bracket 1012328
#F

Cabinet parts diagram

Furnace blower fan housing hanger bracket

Part #1012328

$301.63 |
$12.00 OFF Phone Price : $313.63
In Stock
