Model # 143269012 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143269012 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Lawn Mower O-ring 631028
#25

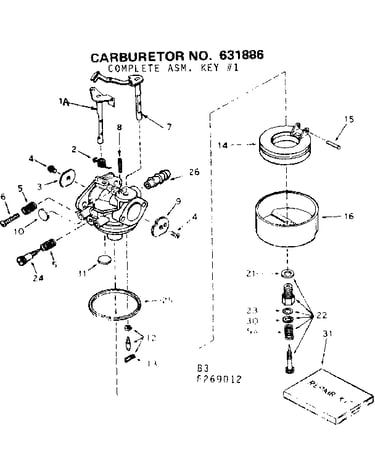

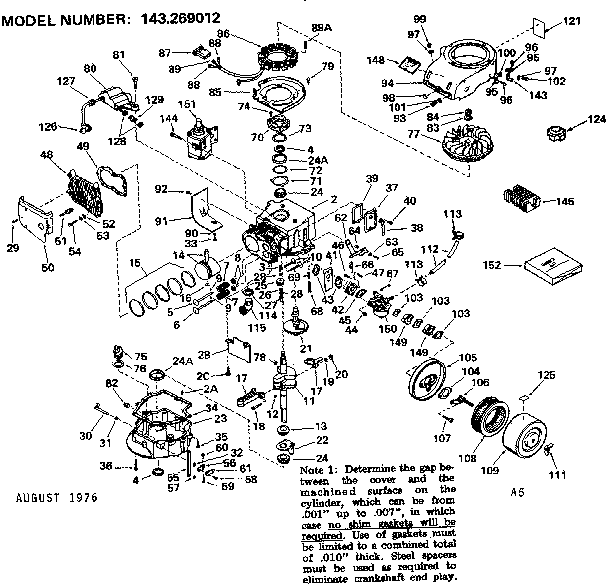

Carburetor diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Spark Plug 33636
#51

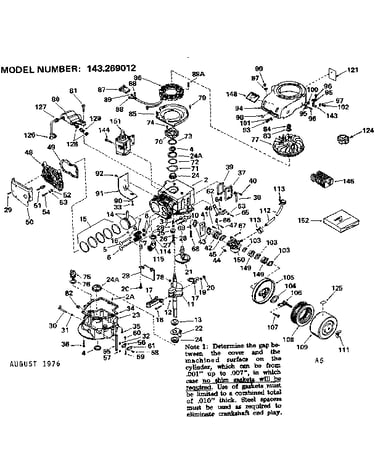

Engine diagram

Spark plug

Part #33636

Replaced by #861

?
Manufacturer substitution
This part replaces 33636. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Needle Seat 631021
#12

Carburetor diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Carburetor Float 631023
#14

Carburetor diagram

Carburetor float

Part #631023

Replaced by #632019A

?
Manufacturer substitution
This part replaces 631023. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Lauson Lawn & Garden Equipment Engine Fuel Line (replaces 30241, 430217, 503-1199, 503-1577, Tc-30962) 30962
#112

Engine diagram

Lauson lawn & garden equipment engine fuel line (replaces 30241, 430217, 503-1199, 503-1577, tc-30962)

Part #30962

This item is not returnable
$6.76 |
13% OFF Phone Price : $7.76
In Stock
Screw 30688
#92

Engine diagram

Screw

Part #30688

Replaced by #30063

?
Manufacturer substitution
This part replaces 30688. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Screw 28942
#96

Engine diagram

Lawn & garden equipment engine screw

Part #28942

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Screw 30564
#35

Engine diagram

Screw

Part #30564

Replaced by #650451

?
Manufacturer substitution
This part replaces 30564. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lauson Gear 33844
#5

Starter motor diagram

Lauson gear

Part #33844

$39.73
In Stock
Troybilt Lawn & Garden Equipment Engine Welch Plug (replaces 53-005) 631027
#11

Carburetor diagram

Troybilt lawn & garden equipment engine welch plug (replaces 53-005)

Part #631027

This item is not returnable
$2.16
In Stock
