Model # LC-60LE830U Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-60LE830U lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Cord QCNWN2731TPZZ
#21

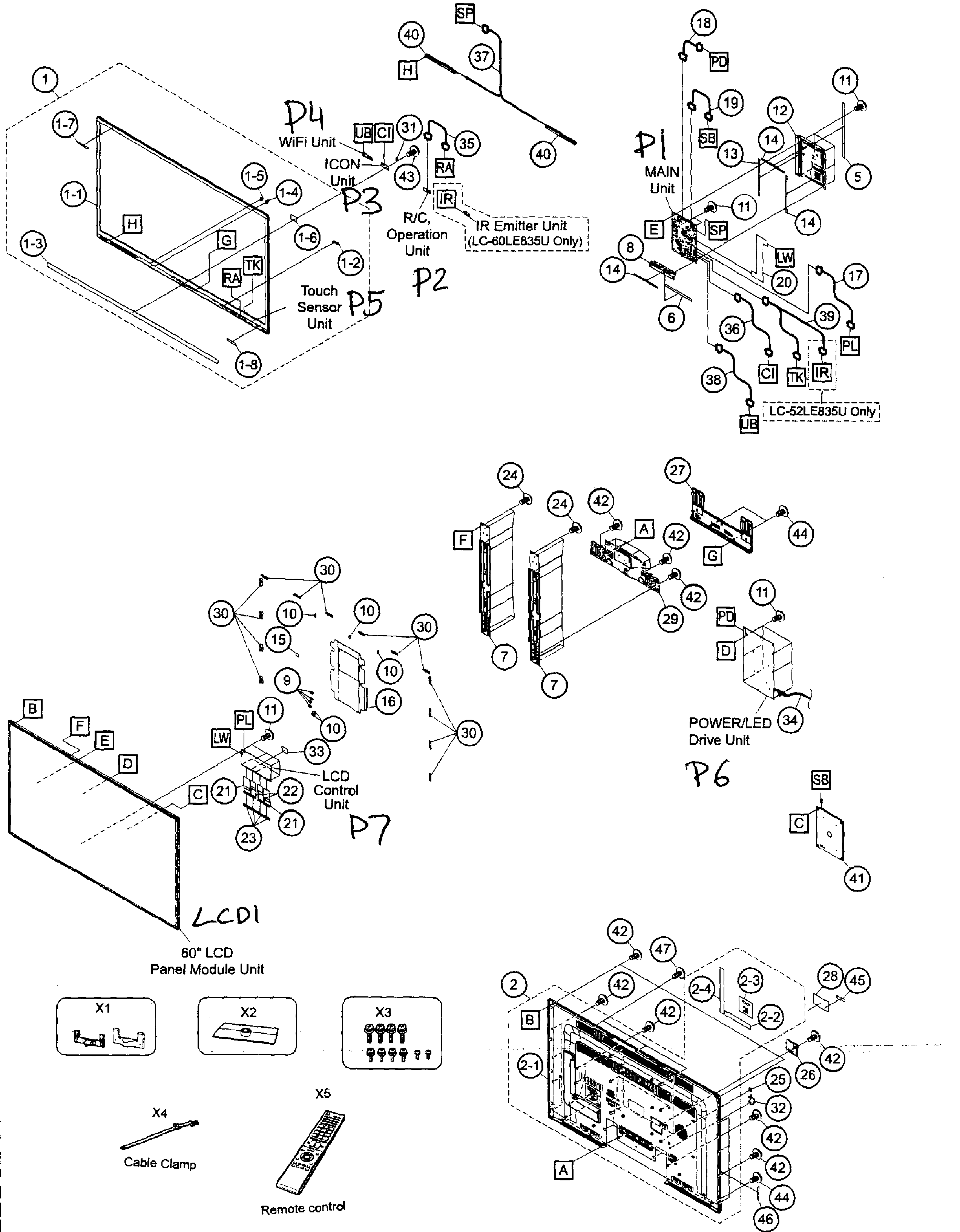

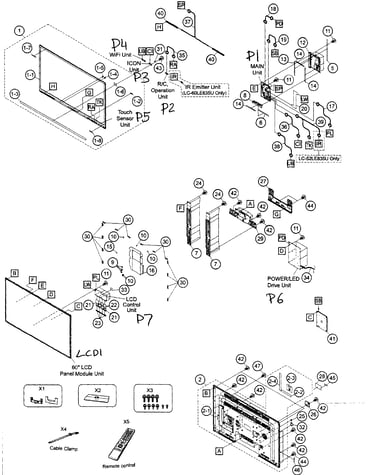

Cabinet parts diagram

Cord

Part #QCNWN2731TPZZ

The manufacturer no longer makes this part, and there's no substitute part

Cord QCNW-L608WJQZ
#18

Cabinet parts diagram

Cord

Part #QCNW-L608WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Wifi Unit RUNTKA810WJQZ
#P4

Cabinet parts diagram

Wifi unit

Part #RUNTKA810WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker RSP-ZA512WJQZ
#40

Cabinet parts diagram

Television speaker

Part #RSP-ZA512WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Rear Cabinet CCABBB888WJ31
#2

Cabinet parts diagram

Rear cabinet

Part #CCABBB888WJ31

The manufacturer no longer makes this part, and there's no substitute part

Cord QCNW-L620WJQZ
#19

Cabinet parts diagram

Cord

Part #QCNW-L620WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Cord QCNW-L613WJQZ
#37

Cabinet parts diagram

Cord

Part #QCNW-L613WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Hole Cover GCOVAC576WJKZ
#25

Cabinet parts diagram

Hole cover

Part #GCOVAC576WJKZ

The manufacturer no longer makes this part, and there's no substitute part

Sharp Cabinet Front CCABAC656WJ32
#1

Cabinet parts diagram

Sharp cabinet front

Part #CCABAC656WJ32

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Neck CANGKD137WJ01
#X1

Cabinet parts diagram

Television stand neck

Part #CANGKD137WJ01

The manufacturer no longer makes this part, and there's no substitute part
