Model # DSC-W180S Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W180S digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Screw 329513201
#63

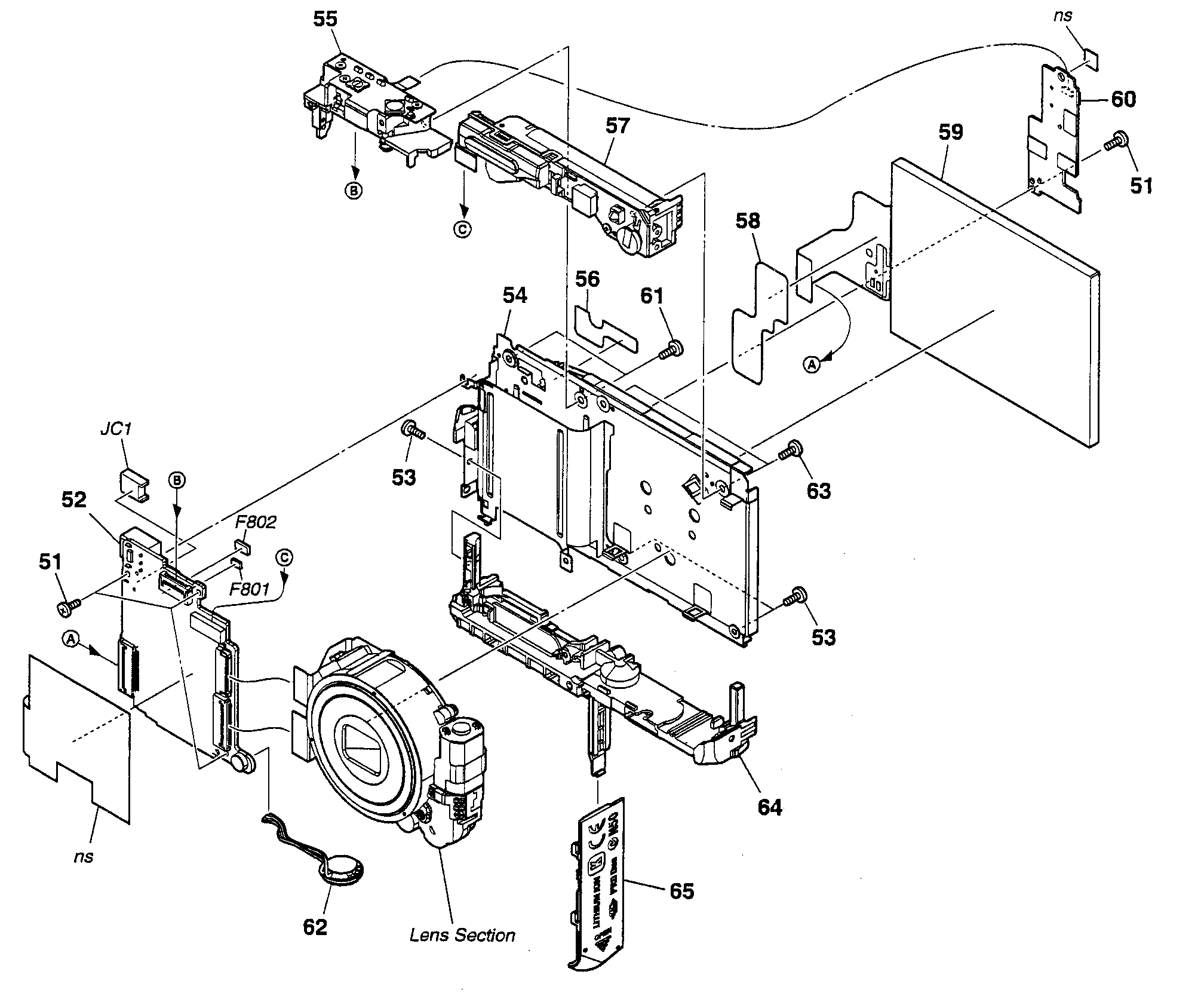

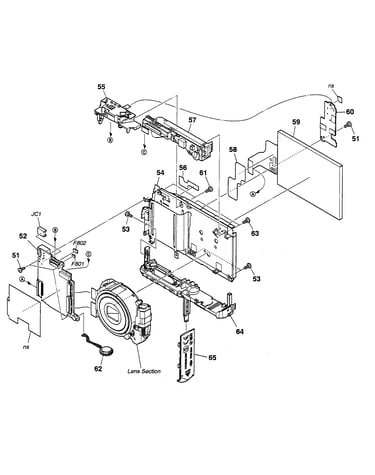

Main frame diagram

Screw

Part #329513201

In Stock
Sony Cabinet X23499901
#1

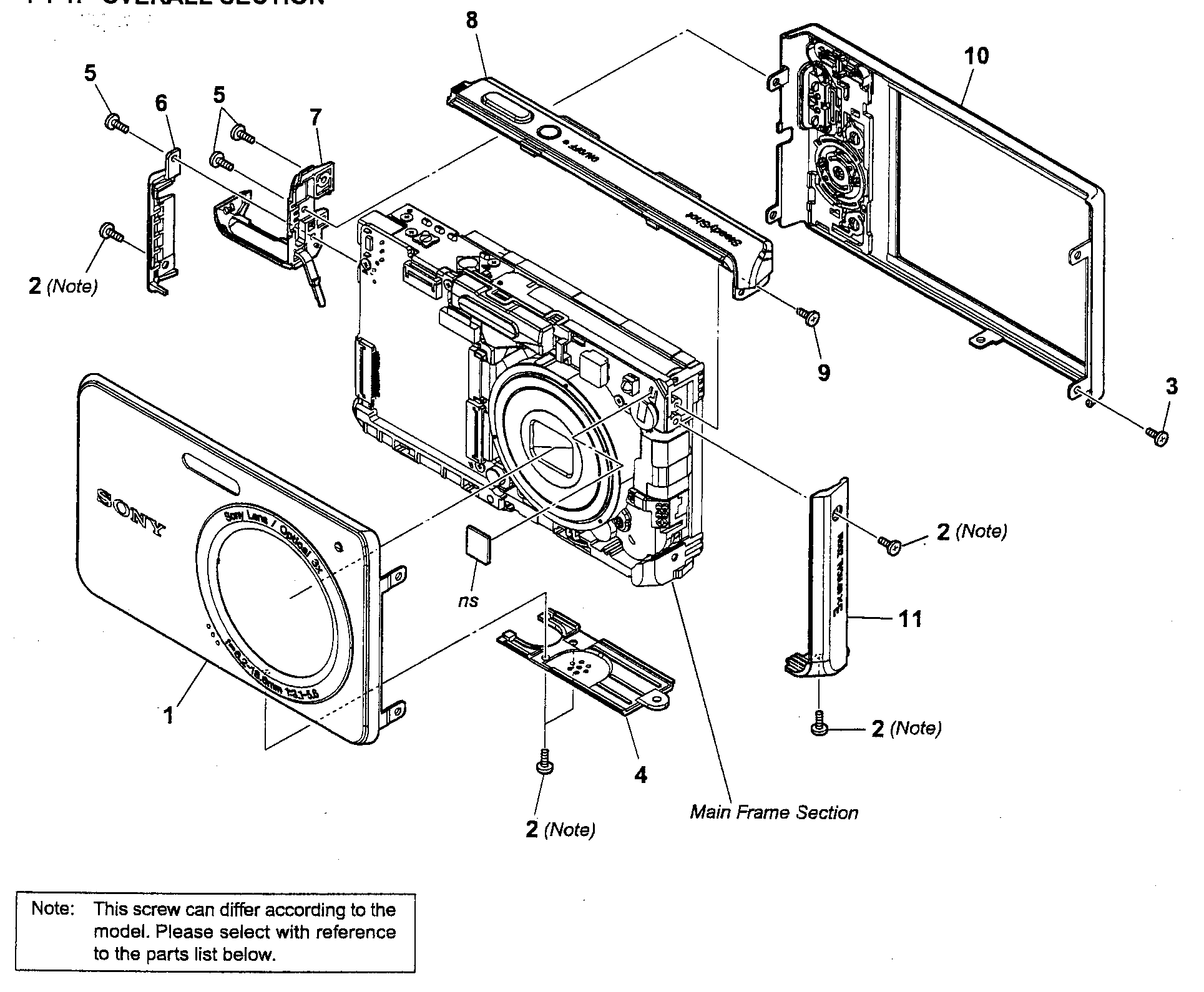

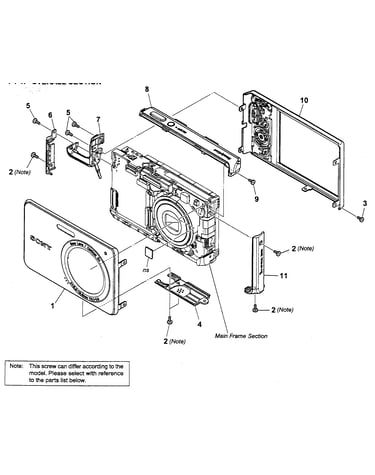

Cabinet parts diagram

Sony cabinet

Part #X23499901

In Stock
Sony Cabinet 415137801
#6

Cabinet parts diagram

Sony cabinet

Part #415137801

This item is not returnable
In Stock
Cd-rom 414337302
#NI

Cabinet parts diagram

Cd-rom

Part #414337302

In Stock
Lens Block A1732638A
#101

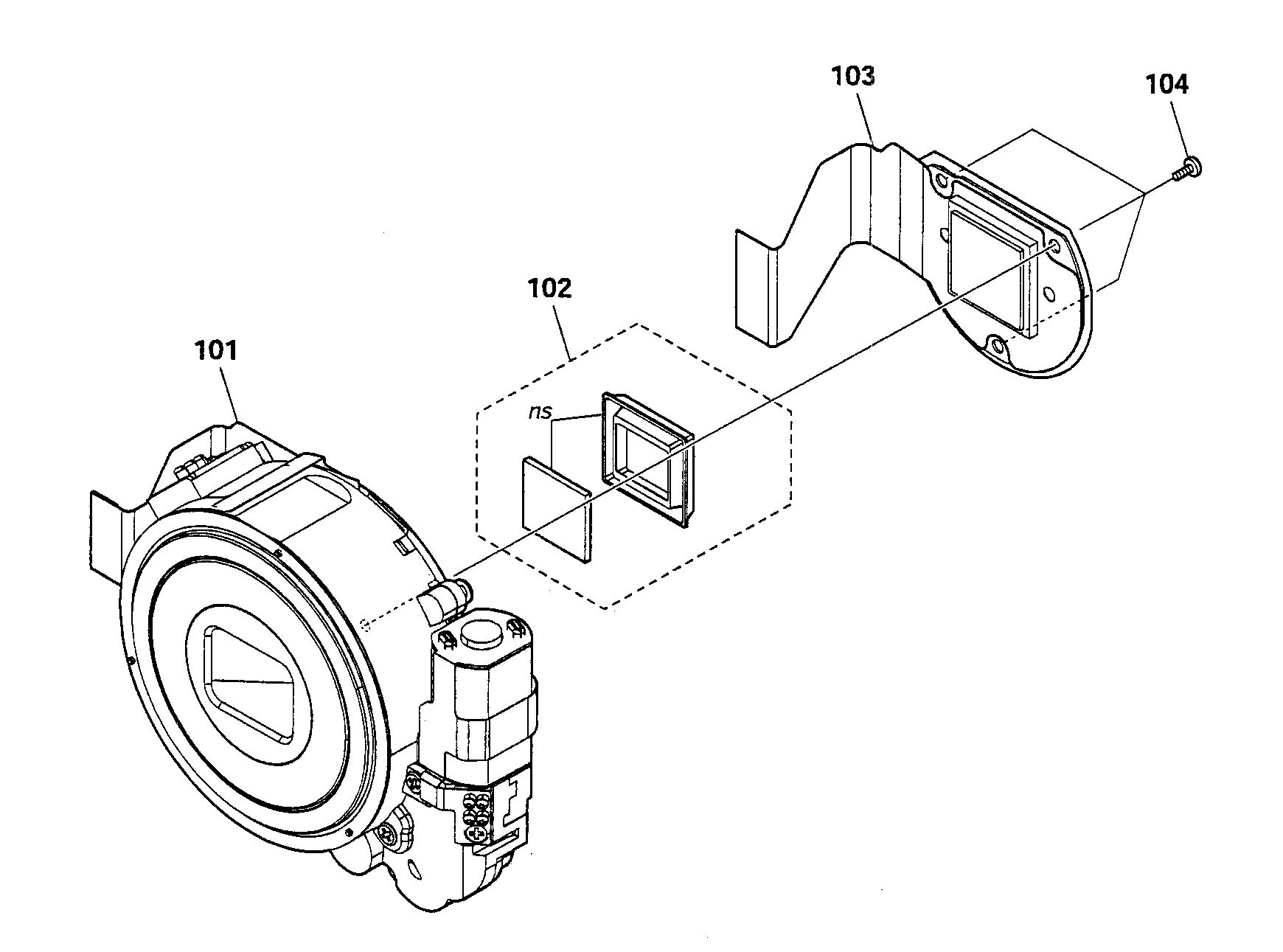

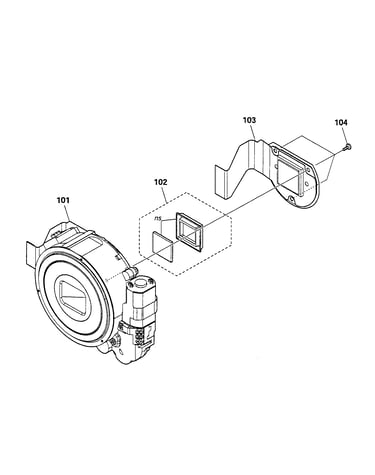

Lens diagram

Lens block

Part #A1732638A

In Stock
Screw,tp 311300101
#53

Main frame diagram

Screw,tp

Part #311300101

This item is not returnable
In Stock
Connector 182033311
#JC1

Main frame diagram

Connector

Part #182033311

In Stock
Main Frame X25141091
#54

Main frame diagram

Main frame

Part #X25141091

In Stock
Pcb A1732637A
#60

Main frame diagram

Pcb

Part #A1732637A

In Stock
Sony Cabinet X25141011
#11

Cabinet parts diagram

Sony cabinet

Part #X25141011

In Stock
