Model # 20829282 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 20829282 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Wand 60811
#36

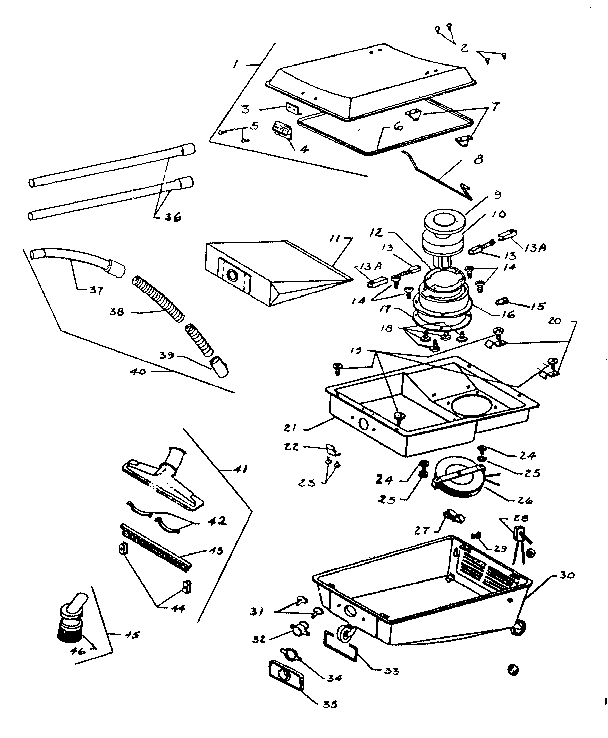

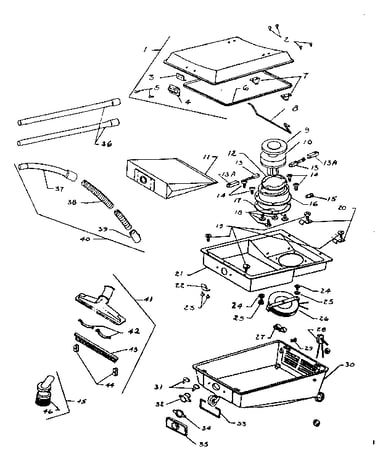

Unit parts diagram

Wand

Part #60811

The manufacturer no longer makes this part, and there's no substitute part

Cord Reel 61677
#26

Unit parts diagram

Cord reel

Part #61677

The manufacturer no longer makes this part, and there's no substitute part

Screw 60641
#24

Unit parts diagram

Screw

Part #60641

The manufacturer no longer makes this part, and there's no substitute part

Screw 61291
#31

Unit parts diagram

Screw

Part #61291

The manufacturer no longer makes this part, and there's no substitute part

Filter, 1-pack 61693
#9

Unit parts diagram

Filter, 1-pack

Part #61693

The manufacturer no longer makes this part, and there's no substitute part

Hinge 61821
#8

Unit parts diagram

Hinge

Part #61821

The manufacturer no longer makes this part, and there's no substitute part

Clip PIP-720624
#44

Unit parts diagram

Clip

Part #PIP-720624

The manufacturer no longer makes this part, and there's no substitute part

Screw 41523
#14

Unit parts diagram

Screw

Part #41523

The manufacturer no longer makes this part, and there's no substitute part

Lower Housing 61744-D
#30

Unit parts diagram

Lower housing

Part #61744-D

The manufacturer no longer makes this part, and there's no substitute part

Hose 60954-E
#38

Unit parts diagram

Hose

Part #60954-E

The manufacturer no longer makes this part, and there's no substitute part
