Weber
Gas Grill

Model # 92740301 Official Weber gas grill

Here are the diagrams and repair parts for Official Weber 92740301 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Match Holder 81544
#59

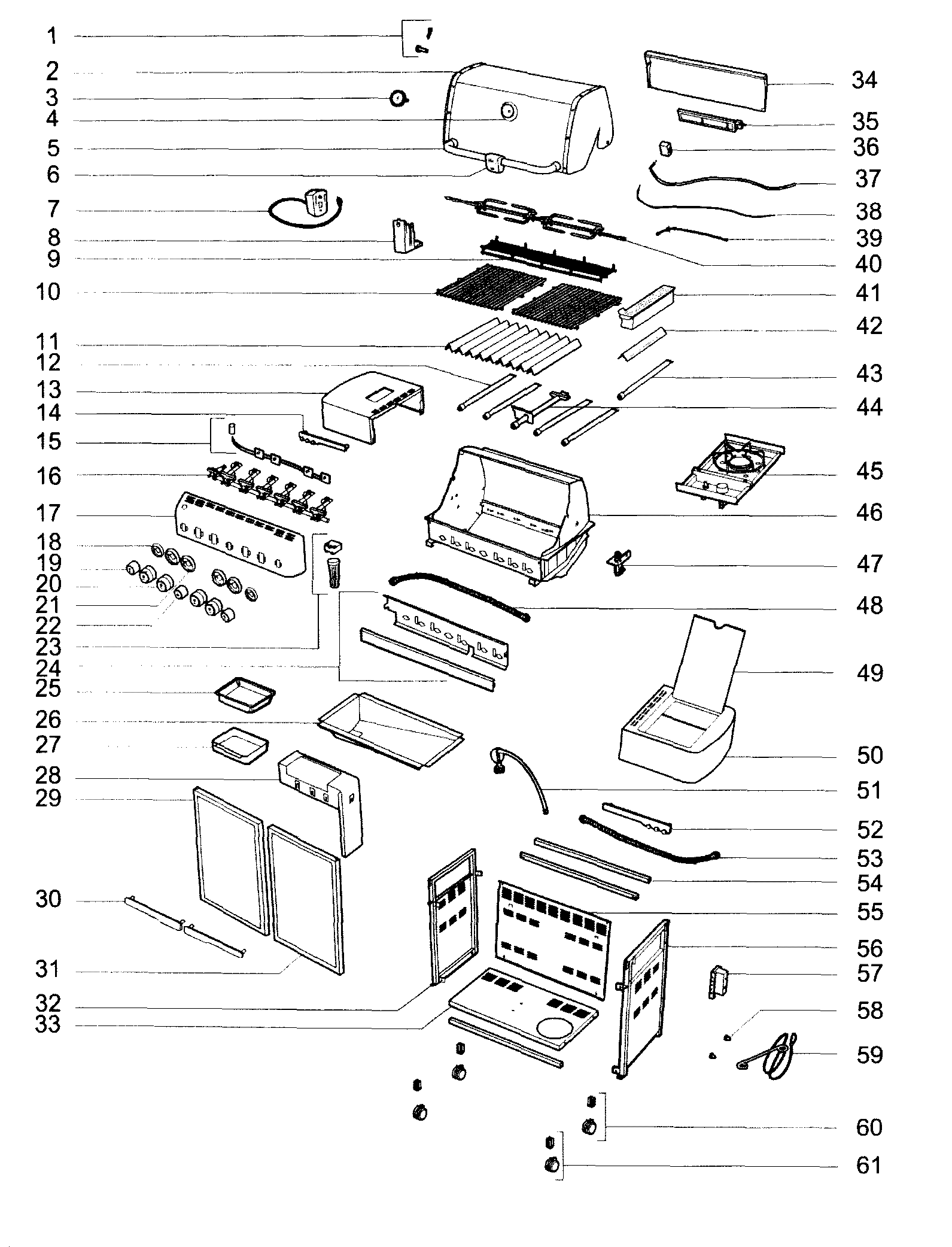

Grill parts diagram

Match holder

Part #81544

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Main Burner 70306
#12

Grill parts diagram

Gas grill main burner

Part #70306

The manufacturer no longer makes this part, and there's no substitute part

Hardware 67719
#49A

Grill parts diagram

Hardware

Part #67719

The manufacturer no longer makes this part, and there's no substitute part

Burner Hose 70282
#39

Grill parts diagram

Burner hose

Part #70282

The manufacturer no longer makes this part, and there's no substitute part

Hardware 81803
Hardware

Part #81803

The manufacturer no longer makes this part, and there's no substitute part

Burner,lp,side 70396
#45

Grill parts diagram

Burner,lp,side

Part #70396

The manufacturer no longer makes this part, and there's no substitute part

Hardware 88212
#47A

Grill parts diagram

Hardware

Part #88212

The manufacturer no longer makes this part, and there's no substitute part

Grate 70372
#10

Grill parts diagram

Grate

Part #70372

The manufacturer no longer makes this part, and there's no substitute part

Back Panel 70352
#55

Grill parts diagram

Back panel

Part #70352

The manufacturer no longer makes this part, and there's no substitute part

Switch 40264001
#15

Grill parts diagram

Switch

Part #40264001

The manufacturer no longer makes this part, and there's no substitute part

Symptoms for gas grills

Choose a symptom to see related gas grill repairs.

View all

Why don't the burners on my gas grill get gas?

Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…

Read more

Why won't some burners light on my gas grill?

Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…

Read more

Why is my gas grill not hot enough?

Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…

Read more

What should I do about grease flare-ups in my gas grill?

Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…

Read more

Do I have to replace a broken wheel on a gas grill?

Main cause: worn wheel…

Read more

Repair guides for gas grills

These step-by-step repair guides will help you safely fix what’s broken on your gas grill.

View all
How to replace a gas grill burner

How to replace a gas grill burner

Replace a damaged burner on your gas grill in less than 15 minutes and with just pliers and a screwdriver for tools.…

Read more
Repair difficulty
Time required
 15 minutes or less
How to replace a gas grill igniter electrode

How to replace a gas grill igniter electrode

Replace the igniter electrode on your gas grill if it won’t light the burner.…

Read more
Repair difficulty
Time required
 15 minutes or less
How to replace a gas grill pressure regulator

How to replace a gas grill pressure regulator

You can install a new pressure regulator on your gas grill if the pressure regulator won’t let gas flow.…

Read more
Repair difficulty
Time required
 15 minutes or less
