Model # 73849601 Official Sears one-piece toilet

Here are the diagrams and repair parts for Official Sears 73849601 one-piece toilet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Ballcock P-1.97
#55

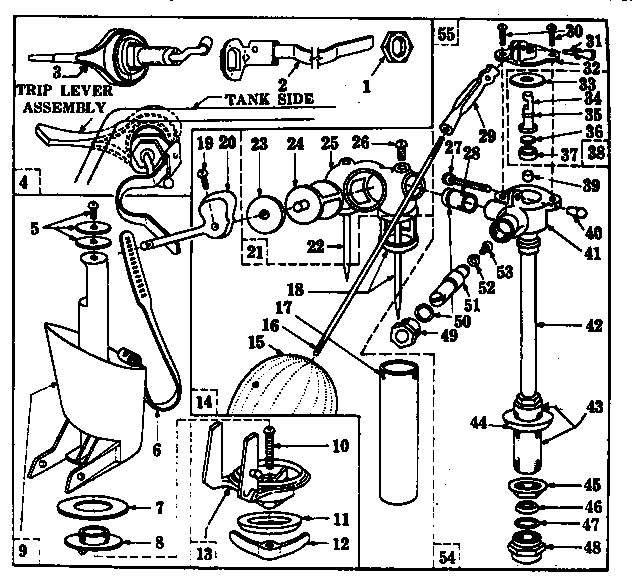

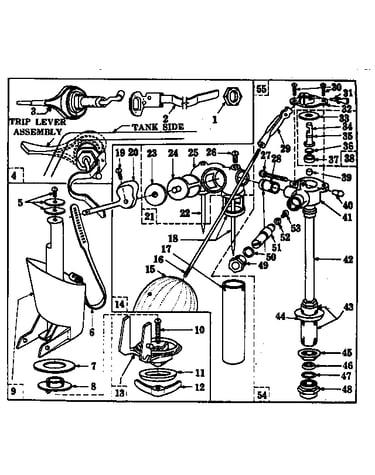

Functional replacement parts diagram

Ballcock

Part #P-1.97

The manufacturer no longer makes this part, and there's no substitute part

Bumper A-347
#40

Functional replacement parts diagram

Bumper

Part #A-347

The manufacturer no longer makes this part, and there's no substitute part

Lever Screw A-219
#31

Functional replacement parts diagram

Lever screw

Part #A-219

The manufacturer no longer makes this part, and there's no substitute part

Ballcock P-1.92A
#54

Functional replacement parts diagram

Ballcock

Part #P-1.92A

The manufacturer no longer makes this part, and there's no substitute part

Valve Body A-212
#21

Functional replacement parts diagram

Valve body

Part #A-212

The manufacturer no longer makes this part, and there's no substitute part

Washer A-359
#35

Functional replacement parts diagram

Washer

Part #A-359

The manufacturer no longer makes this part, and there's no substitute part

Valve Body A-318
#41

Functional replacement parts diagram

Valve body

Part #A-318

The manufacturer no longer makes this part, and there's no substitute part

Screw A-303
#27

Functional replacement parts diagram

Screw

Part #A-303

The manufacturer no longer makes this part, and there's no substitute part

Plunger A-343
#34

Functional replacement parts diagram

Plunger

Part #A-343

The manufacturer no longer makes this part, and there's no substitute part

Float Ball A-228
#15

Functional replacement parts diagram

Float ball

Part #A-228

The manufacturer no longer makes this part, and there's no substitute part
