Hoover
Upright Vacuum

Model # U7069 Official Hoover conquest commercial vacuum

Here are the diagrams and repair parts for Official Hoover U7069 conquest commercial vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

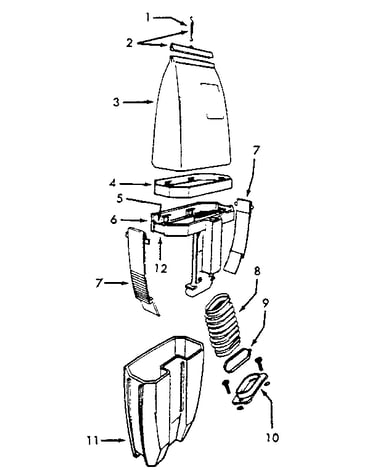

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Bellows 38671008
#53

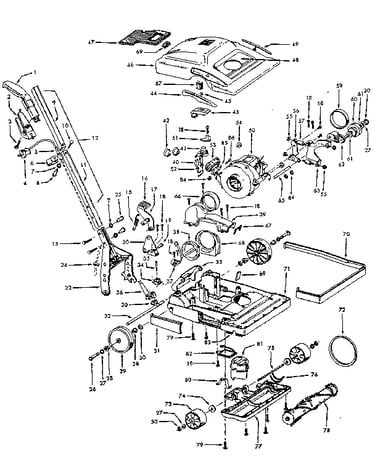

Main assembly diagram

Bellows

Part #38671008

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 37191090
#23

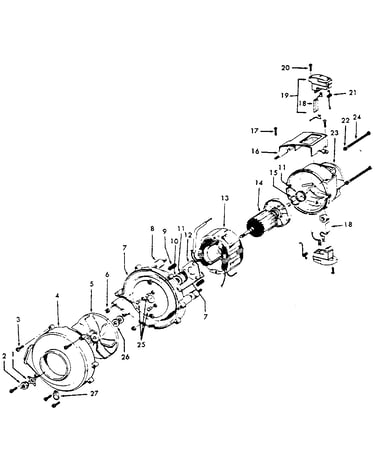

Motor diagram

Motor housing

Part #37191090

The manufacturer no longer makes this part, and there's no substitute part

Spring 38381005
#80

Main assembly diagram

Spring

Part #38381005

The manufacturer no longer makes this part, and there's no substitute part

Axle 32543005
#75

Main assembly diagram

Axle

Part #32543005

The manufacturer no longer makes this part, and there's no substitute part

Nut 21641557
#6

Motor diagram

Nut

Part #21641557

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Clamp Bolt 21631301
#10

Main assembly diagram

Kenmore clamp bolt

Part #21631301

The manufacturer no longer makes this part, and there's no substitute part

Lever Support 35214009
#20

Main assembly diagram

Lever support

Part #35214009

The manufacturer no longer makes this part, and there's no substitute part

Fan Chamber 43588018
#7

Motor diagram

Fan chamber

Part #43588018

The manufacturer no longer makes this part, and there's no substitute part

Agitator Sht 32873007
#7

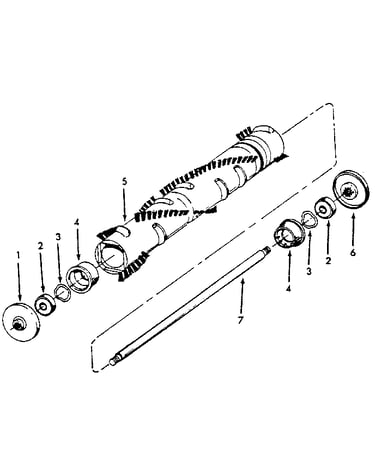

Agitator diagram

Agitator sht

Part #32873007

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut 21364102
#45

Main assembly diagram

Speed nut

Part #21364102

The manufacturer no longer makes this part, and there's no substitute part
