Onan
Lawn & Garden Engine

Model # BG-MS3270A Official Onan engine

Here are the diagrams and repair parts for Official Onan BG-MS3270A engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

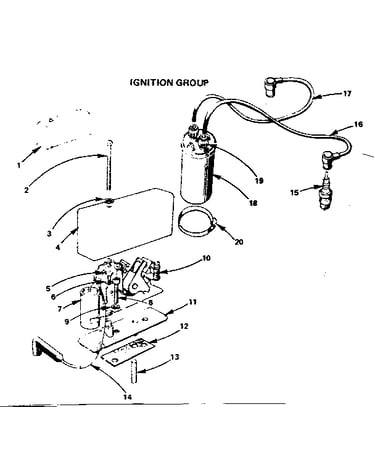

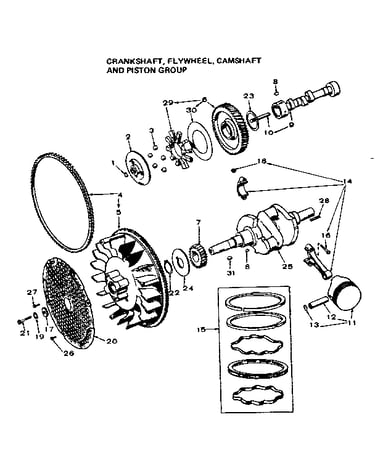

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 267 parts  |
Pre-clner 140-1259
#20

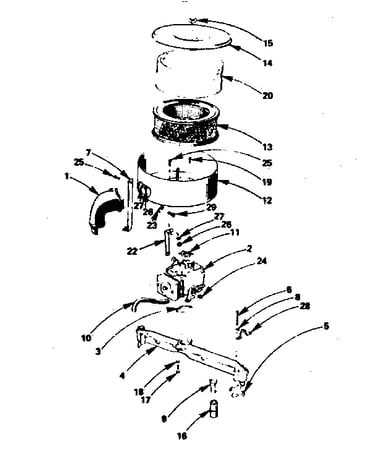

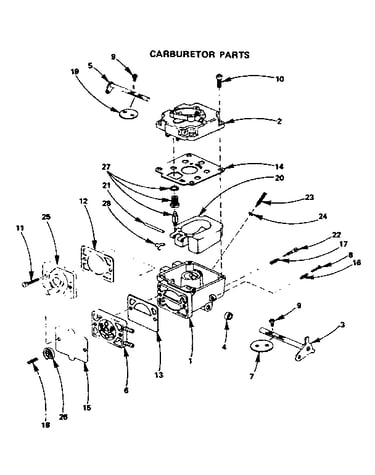

Fuel system diagram

Pre-clner

Part #140-1259

Replaced by #45-083-01-S

?
Manufacturer substitution
This part replaces 140-1259. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Flat Washer 526-0214
#28

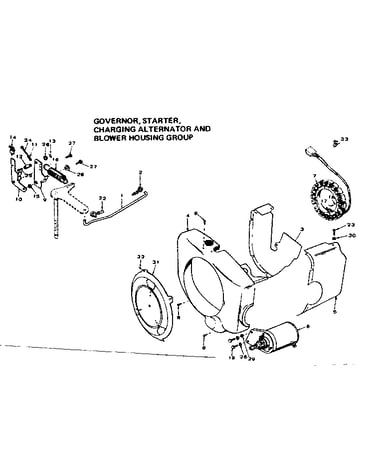

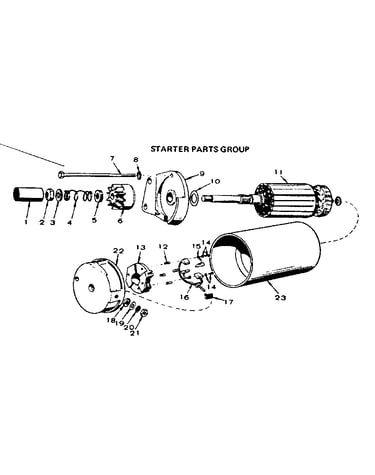

Governor, starter charging alternator & blower housing grp. diagram

Flat washer

Part #526-0214

The manufacturer no longer makes this part, and there's no substitute part

Element 140-1216
#13

Fuel system diagram

Element

Part #140-1216

Replaced by #45-083-02-S

?
Manufacturer substitution
This part replaces 140-1216. Substitute parts can look different from the original.
This item is not returnable
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Flat Washer 526-0018
#5

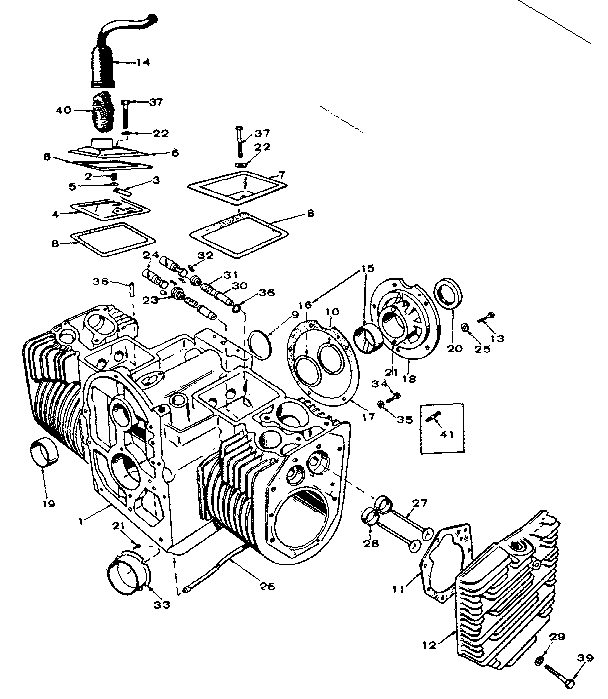

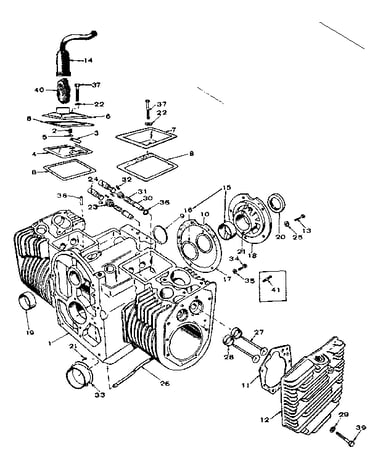

Cylinder block diagram

Flat washer

Part #526-0018

The manufacturer no longer makes this part, and there's no substitute part

Screw 800-0545
#38A

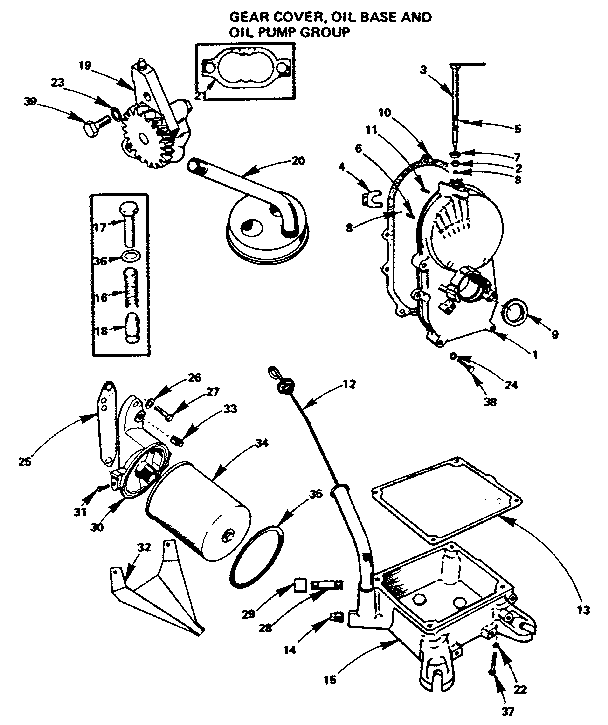

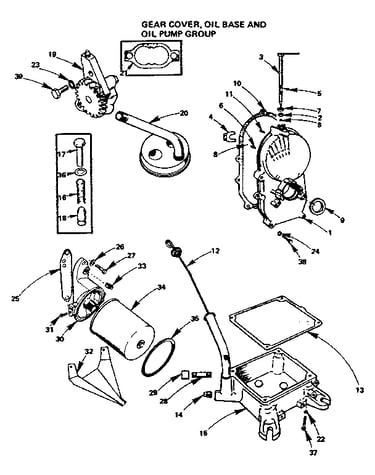

Gear cover, oil base and oil pump group diagram

Screw

Part #800-0545

The manufacturer no longer makes this part, and there's no substitute part

Screw 815-0290
#23

Governor, starter charging alternator & blower housing grp. diagram

Screw

Part #815-0290

The manufacturer no longer makes this part, and there's no substitute part

Screw 815-0377
#19

Fuel system diagram

Screw

Part #815-0377

The manufacturer no longer makes this part, and there's no substitute part

Screw 800-0540
#39A

Cylinder block diagram

Screw

Part #800-0540

The manufacturer no longer makes this part, and there's no substitute part

Plug 505-0056
#14

Gear cover, oil base and oil pump group diagram

Plug

Part #505-0056

The manufacturer no longer makes this part, and there's no substitute part

Brush 191-1041

#NI

All parts diagram

Brush

Part #191-1041

The manufacturer no longer makes this part, and there's no substitute part
