Model # WEBE09420 Official Weider 120 weight system

Here are the diagrams and repair parts for Official Weider WEBE09420 120 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Healthrider Internal Square End Cap, 1-in 120696
#22

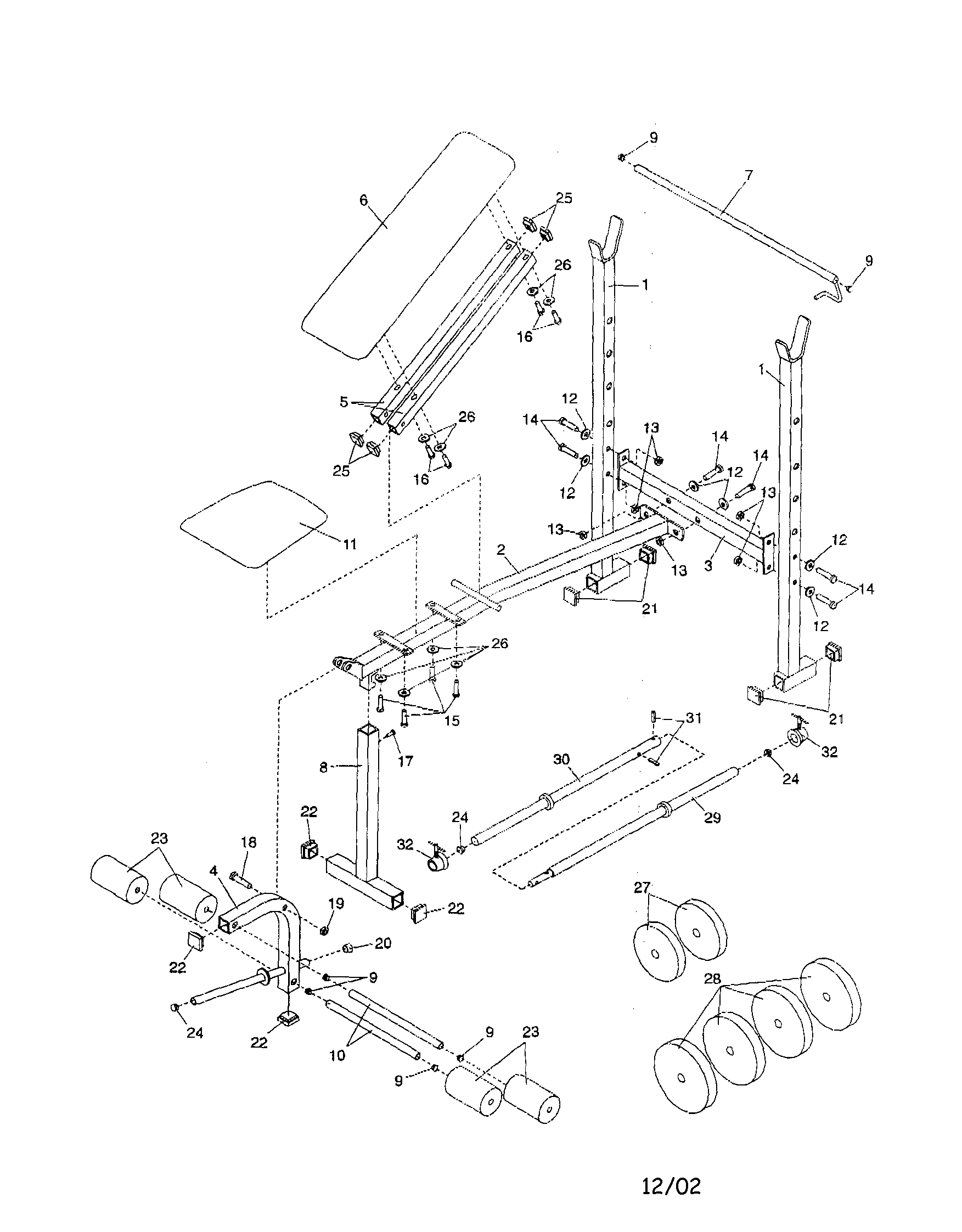

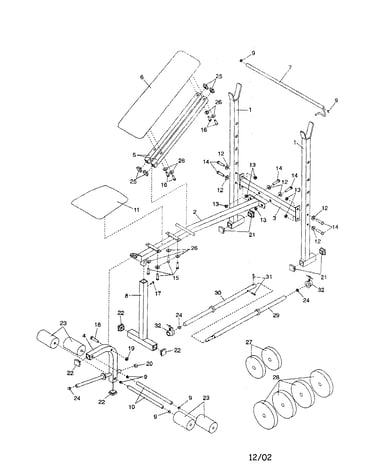

Weider 120 diagram

Healthrider internal square end cap, 1-in

Part #120696

This item is not returnable
In Stock
Image Exercise Equipment Washer 014003
#26

Weider 120 diagram

Image exercise equipment washer

Part #014003

This item is not returnable
In Stock
Reebok Internal Round End Cap, 3/4-in 115366
#9

Weider 120 diagram

Reebok internal round end cap, 3/4-in

Part #115366

This item is not returnable
In Stock
Nordictrack Exercise Equipment Nut 012002
#13

Weider 120 diagram

Nordictrack exercise equipment nut

Part #012002

This item is not returnable
In Stock
Image Exercise Equipment Screw 140739
#16

Weider 120 diagram

Image exercise equipment screw

Part #140739

This item is not returnable
In Stock
Weider Tube,rnd,pad 193221
#10

Weider 120 diagram

Weider tube,rnd,pad

Part #193221

In Stock
Tube,custom, 192185
#30

Weider 120 diagram

Tube,custom,

Part #192185

In Stock
Weight 139992
#27

Weider 120 diagram

Weight

Part #139992

In Stock
Weight 139993
#28

Weider 120 diagram

Weight

Part #139993

In Stock
Exercise Equipment Hex Nut 012033
#19

Weider 120 diagram

Exercise equipment hex nut

Part #012033

This item is not returnable
In Stock
