Model # DV-705 Official Kenwood dvd player

Here are the diagrams and repair parts for Official Kenwood DV-705 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Badge B43-0302-04
#606

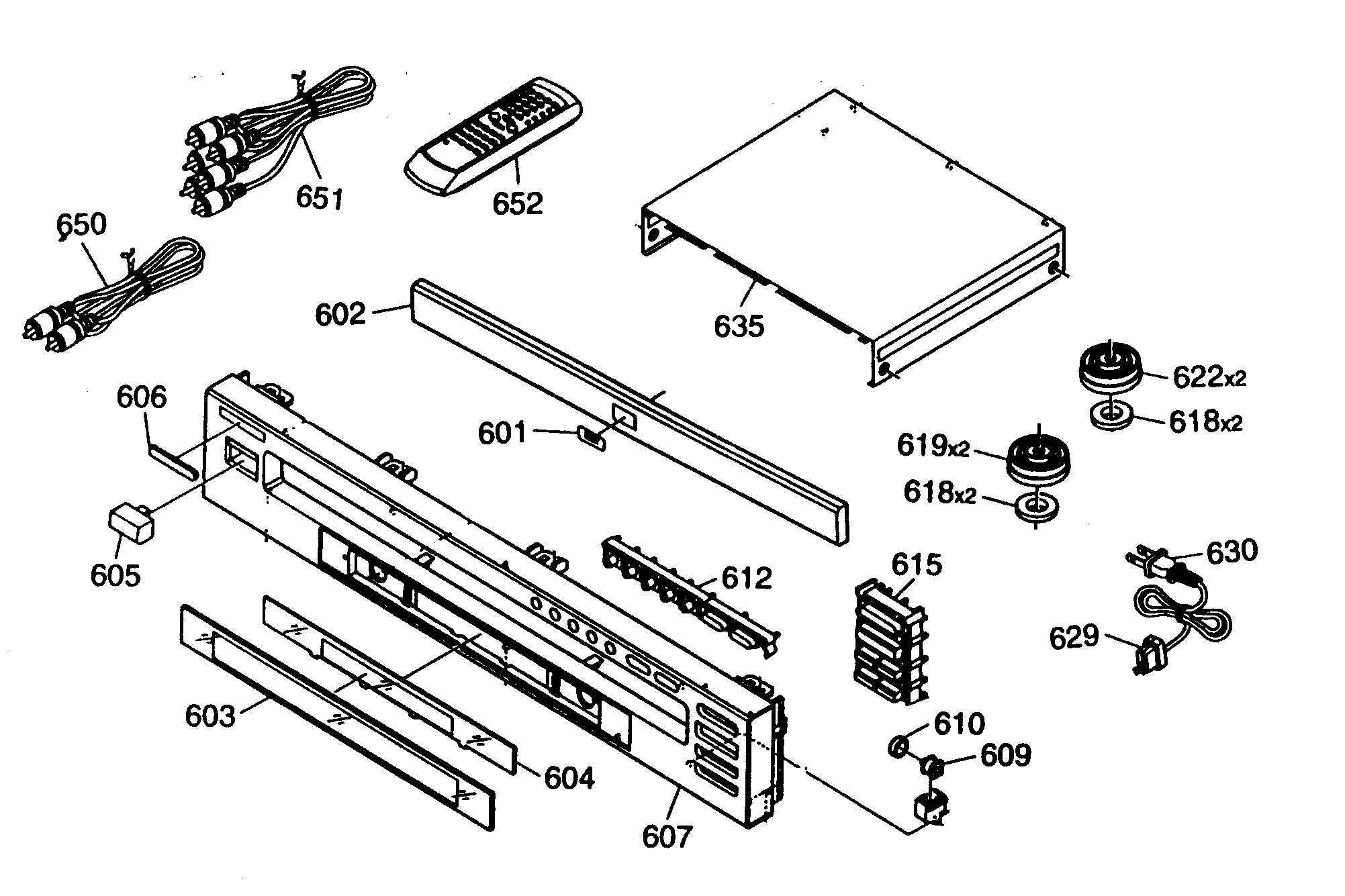

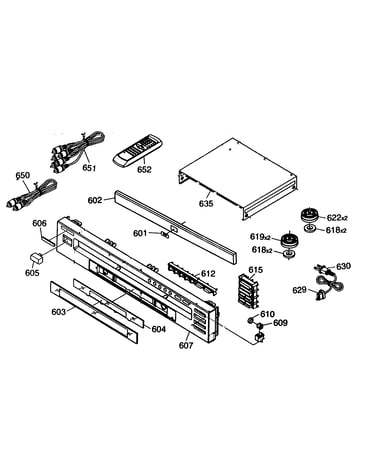

Cabinet parts diagram

Badge

Part #B43-0302-04

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate B43-0333-08
#601

Cabinet parts diagram

Logo plate

Part #B43-0333-08

The manufacturer no longer makes this part, and there's no substitute part

Gear Main D13-2645-08
#NI

Cabinet parts diagram

Gear main

Part #D13-2645-08

The manufacturer no longer makes this part, and there's no substitute part

Crystal B11-1587-08
#604

Cabinet parts diagram

Crystal

Part #B11-1587-08

The manufacturer no longer makes this part, and there's no substitute part

17,cd Platter J99-0852-08
#NI

Cabinet parts diagram

17,cd platter

Part #J99-0852-08

The manufacturer no longer makes this part, and there's no substitute part

8,cushion B(traverse) D39-0357-08
#NI

Cabinet parts diagram

8,cushion b(traverse)

Part #D39-0357-08

The manufacturer no longer makes this part, and there's no substitute part

Ic22,ic - Eeprom M24C02WMN6
#NI

Cabinet parts diagram

Ic22,ic - eeprom

Part #M24C02WMN6

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit KIA7805API
#NI

Cabinet parts diagram

Integrated circuit

Part #KIA7805API

The manufacturer no longer makes this part, and there's no substitute part

Door Trim A29-1225-08
#602

Cabinet parts diagram

Door trim

Part #A29-1225-08

The manufacturer no longer makes this part, and there's no substitute part

Cabinet A60-2371-08
#607

Cabinet parts diagram

Cabinet

Part #A60-2371-08

The manufacturer no longer makes this part, and there's no substitute part
