Model # DCR-SX63R Official Sony camcorder

Here are the diagrams and repair parts for Official Sony DCR-SX63R camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

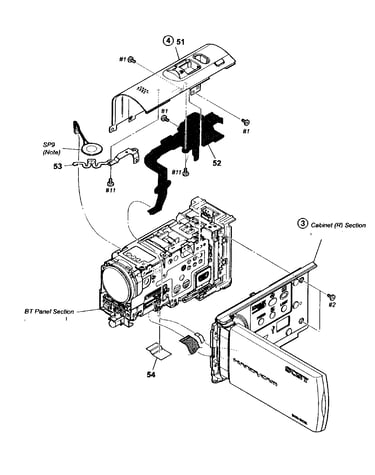

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Holder Usb 416637701
#151

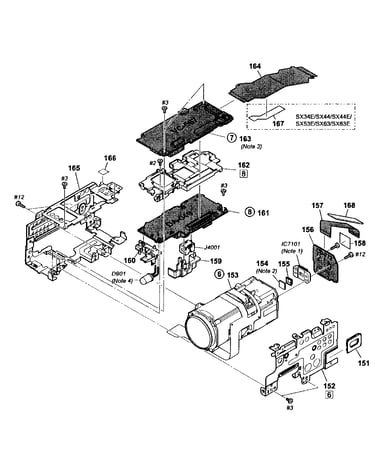

Lens assy diagram

Holder usb

Part #416637701

The manufacturer no longer makes this part, and there's no substitute part

Vc-587 Pcb A1751647A
#163

Lens assy diagram

Vc-587 pcb

Part #A1751647A

The manufacturer no longer makes this part, and there's no substitute part

Fts Block A1748996A
#LCD1

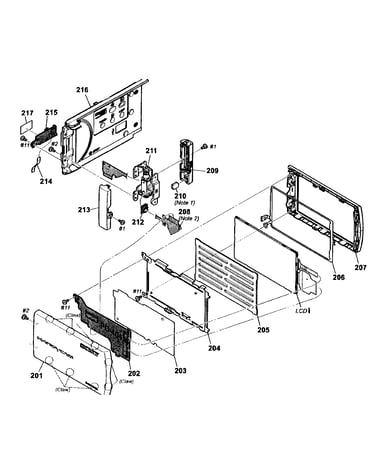

Cabinet right diagram

Fts block

Part #A1748996A

The manufacturer no longer makes this part, and there's no substitute part

Pcb,da-049 A1751652A
#161

Lens assy diagram

Pcb,da-049

Part #A1751652A

The manufacturer no longer makes this part, and there's no substitute part

Pcb,fp-116 188015011
#157

Lens assy diagram

Pcb,fp-116

Part #188015011

The manufacturer no longer makes this part, and there's no substitute part

Sheet,radi 418378001
#158

Lens assy diagram

Sheet,radi

Part #418378001

The manufacturer no longer makes this part, and there's no substitute part

Rechrg Bat A1738740A
#NI

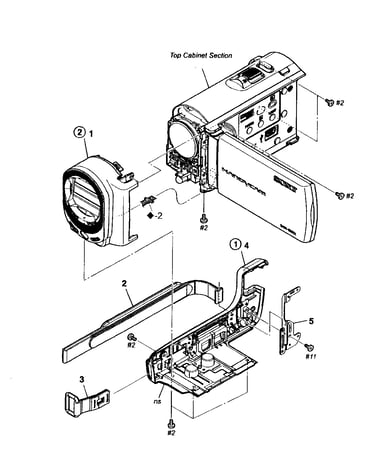

Cabinet left diagram

Rechrg bat

Part #A1738740A

The manufacturer no longer makes this part, and there's no substitute part

Led Holder 416641201
#160

Lens assy diagram

Led holder

Part #416641201

The manufacturer no longer makes this part, and there's no substitute part

Flex Clamp 416645101
#212

Cabinet right diagram

Flex clamp

Part #416645101

The manufacturer no longer makes this part, and there's no substitute part

Panel Assembly A1761277A
#104

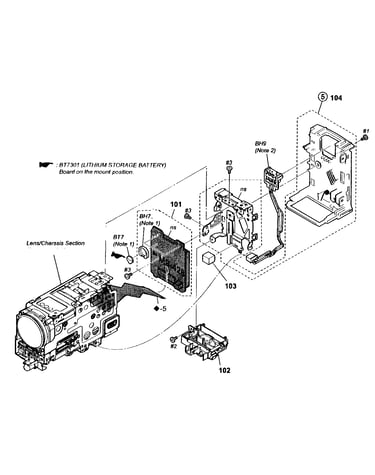

Bt section diagram

Panel assembly

Part #A1761277A

The manufacturer no longer makes this part, and there's no substitute part
