Model # 3545-1 Official Bissell powerglide upright vacuum

Here are the diagrams and repair parts for Official Bissell 3545-1 powerglide upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

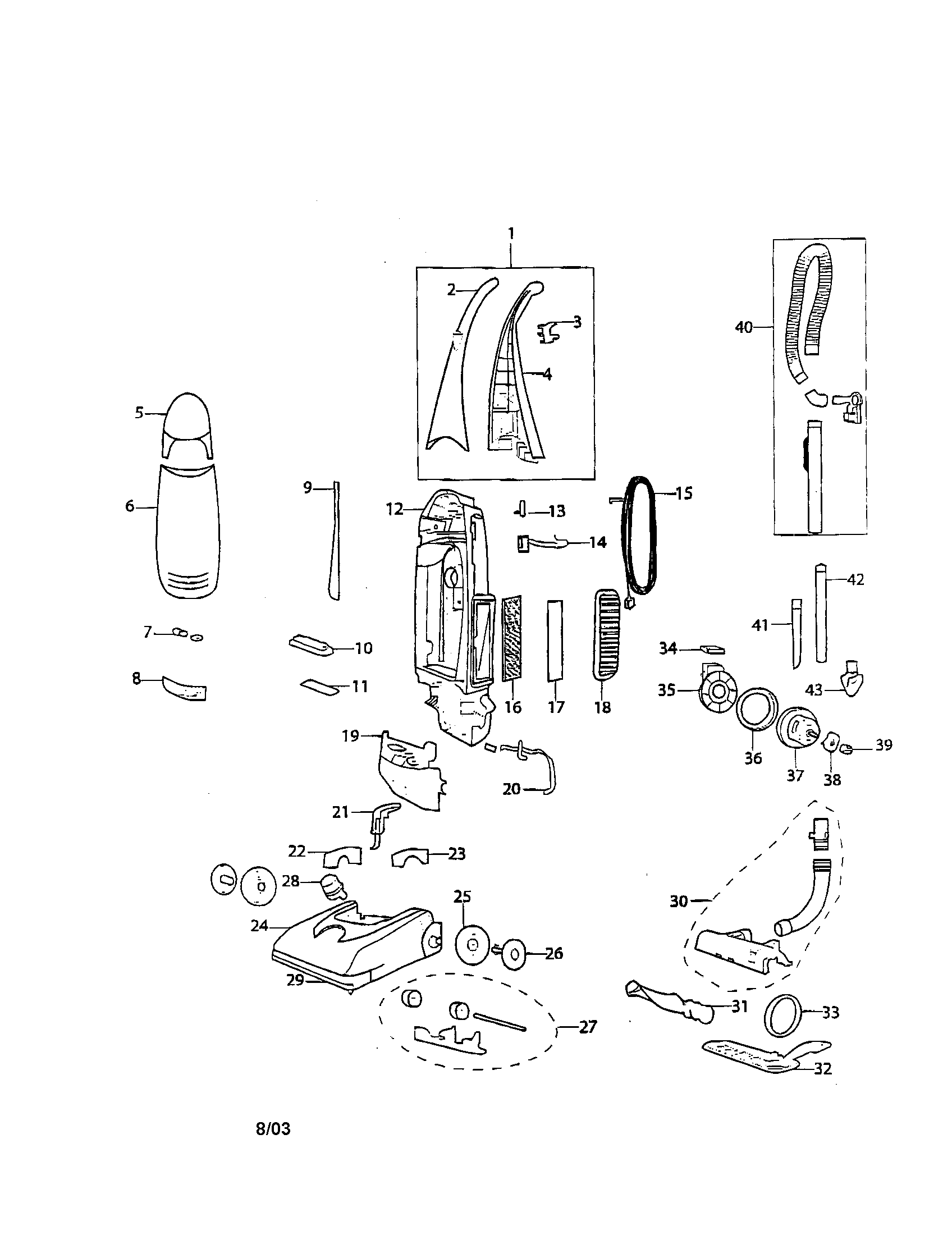

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Vacuum Grille Filter 203-1014
#10

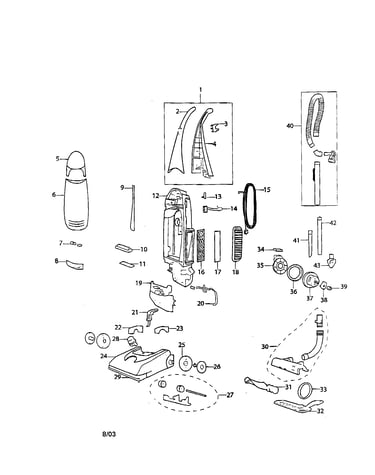

Upright vac diagram

Vacuum grille filter

Part #203-1014

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Pedal 203-1044
#21

Upright vac diagram

Vacuum handle release pedal

Part #203-1044

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord, 35-ft 203-1067
#15B

Upright vac diagram

Vacuum power cord, 35-ft

Part #203-1067

The manufacturer no longer makes this part, and there's no substitute part

Pre-filter 203-1013
#11

Upright vac diagram

Pre-filter

Part #203-1013

The manufacturer no longer makes this part, and there's no substitute part

Motor Filter 203-1009
#17

Upright vac diagram

Motor filter

Part #203-1009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 203-1023
#43

Upright vac diagram

Vacuum dust brush

Part #203-1023

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Brush 203-1039
#23

Upright vac diagram

Vacuum brush

Part #203-1039

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 32074
#33

Upright vac diagram

Vacuum beater bar belt

Part #32074

The manufacturer no longer makes this part, and there's no substitute part

Lamp 203-1007
#7

Upright vac diagram

Lamp

Part #203-1007

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Grille Filter 203-1011
#18

Upright vac diagram

Vacuum grille filter

Part #203-1011

The manufacturer no longer makes this part, and there's no substitute part
