Model # NN-SN667W Official Panasonic microwave

Here are the diagrams and repair parts for Official Panasonic NN-SN667W microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

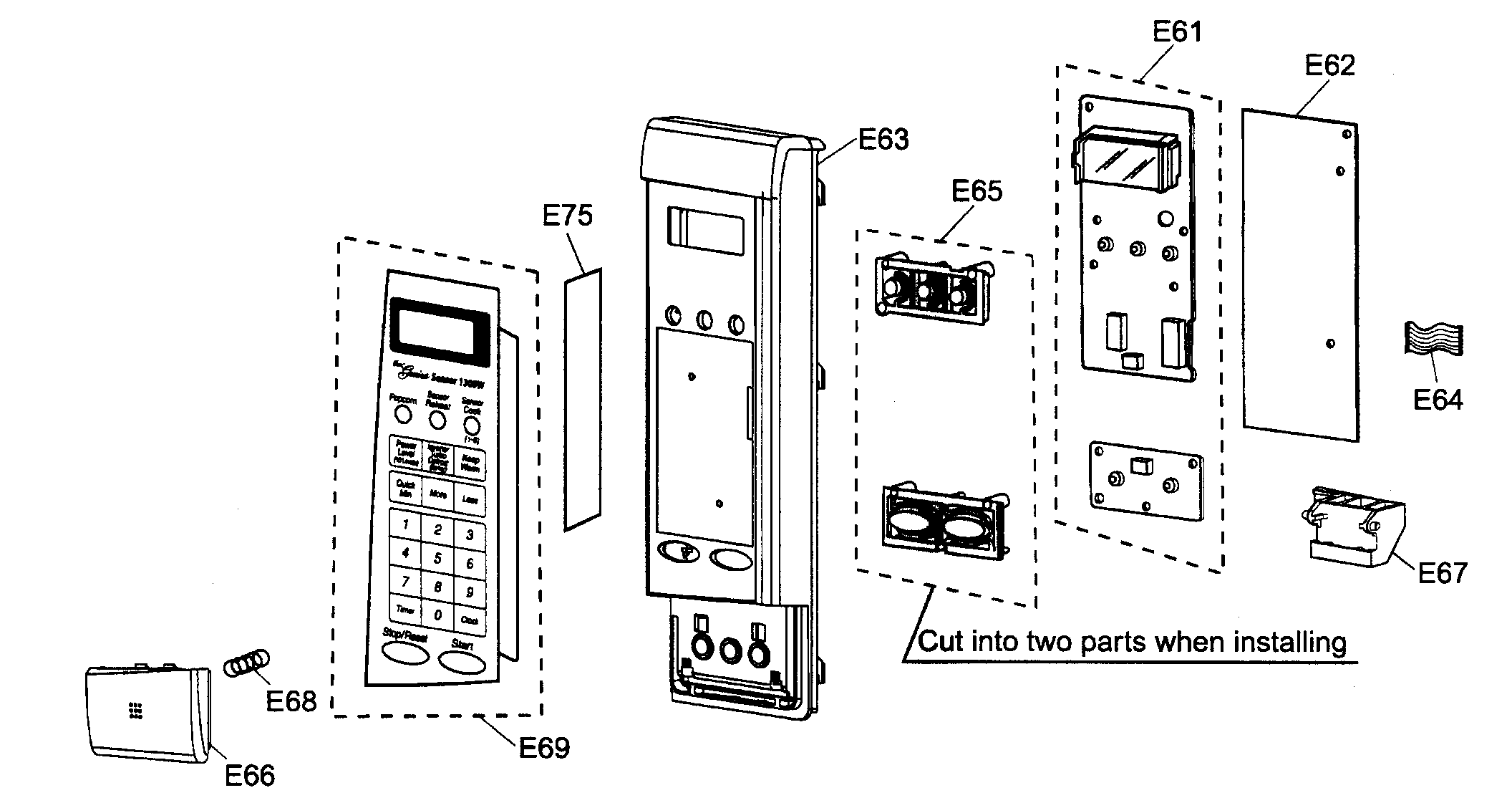

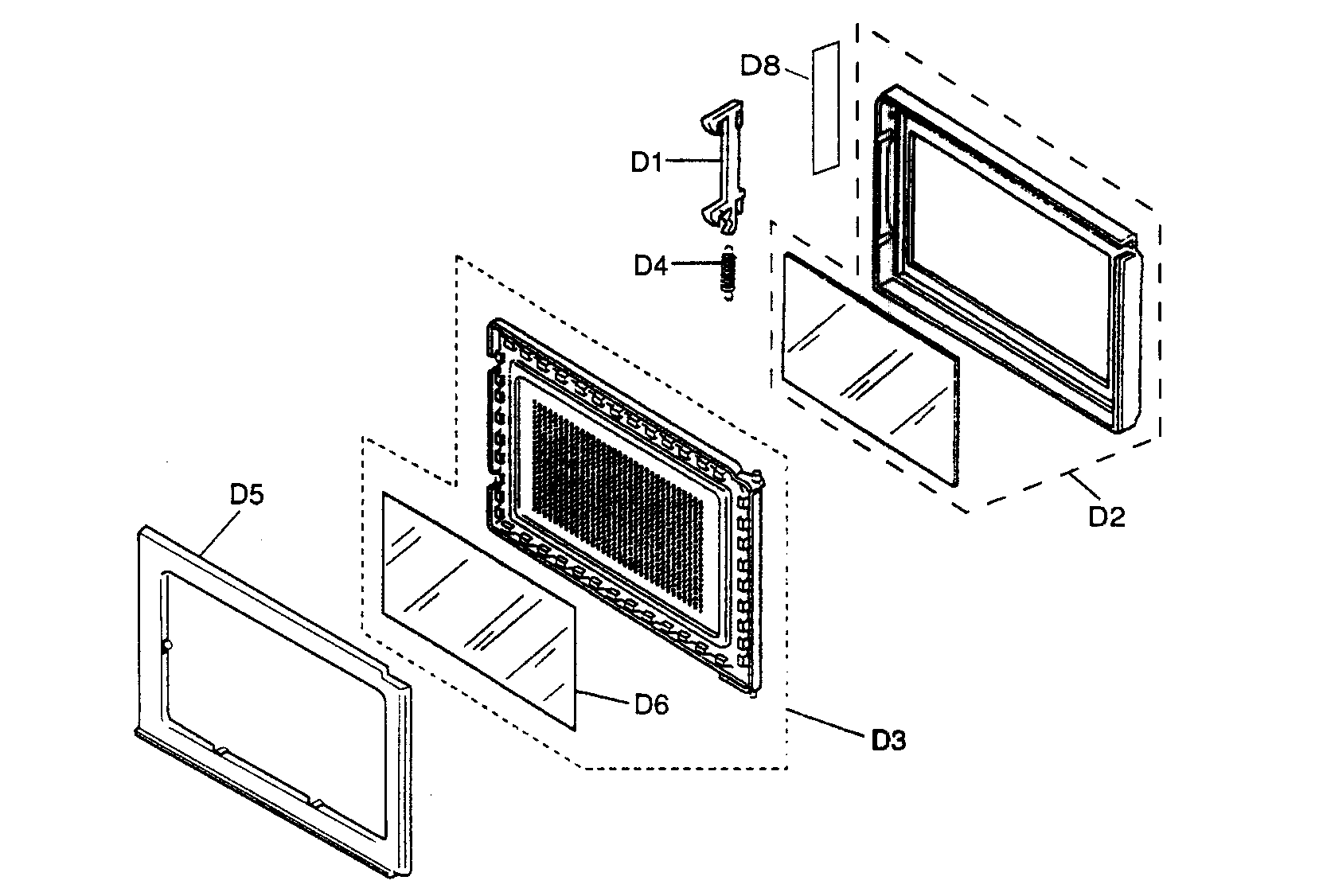

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Panasonic Door Hook F30206G30AP
#12

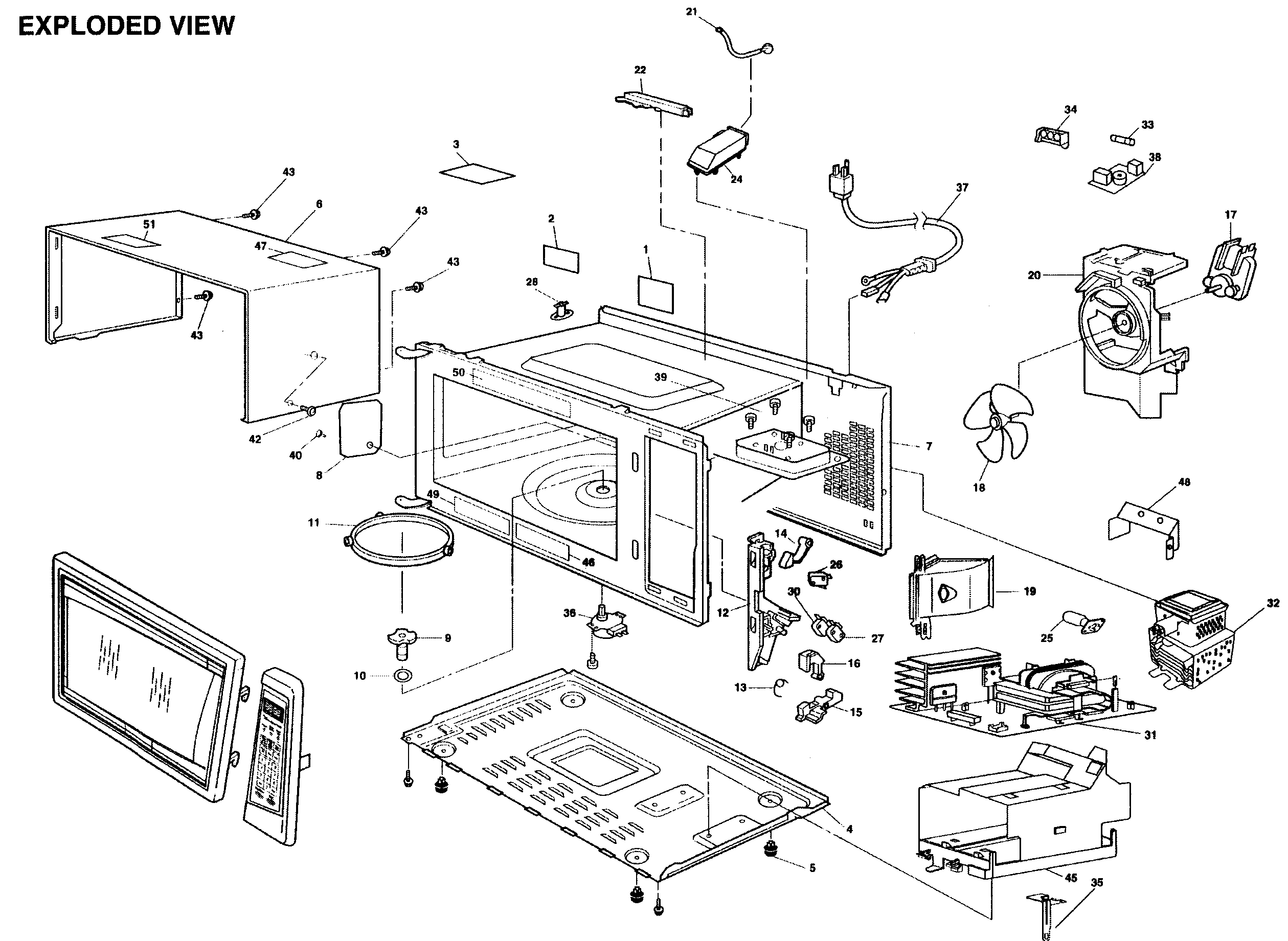

Cabinet assy diagram

Panasonic door hook

Part #F30206G30AP

$15.99
11% OFF Phone Price : $17.99
In Stock
Panasonic Micro Sw J61415G10XN
#26

Cabinet assy diagram

Panasonic micro sw

Part #J61415G10XN

$25.29
19% OFF Phone Price : $31.29
In Stock
Panasonic Cutout F61456N60AP
#28

Cabinet assy diagram

Panasonic cutout

Part #F61456N60AP

This item is not returnable
$16.59
11% OFF Phone Price : $18.59
In Stock
Panasonic Motor F63265G60AP
#36

Cabinet assy diagram

Panasonic motor

Part #F63265G60AP

$33.09
15% OFF Phone Price : $39.09
In Stock
Panasonic Inverter F606Y8M00AP
#31

Cabinet assy diagram

Panasonic inverter

Part #F606Y8M00AP

In Stock
Panasonic Fan Blade F40084T00AP
#18

Cabinet assy diagram

Panasonic fan blade

Part #F40084T00AP

In Stock
Panasonic Foot F10084T00AP
#5

Cabinet assy diagram

Panasonic foot

Part #F10084T00AP

This item is not returnable
In Stock
Panasonic Fuse F62308F20AP
#33

Cabinet assy diagram

Panasonic fuse

Part #F62308F20AP

In Stock
Panasonic Bracket F65856K50AP
#45

Cabinet assy diagram

Panasonic bracket

Part #F65856K50AP

In Stock
Panasonic Magnetron 2M261-M32KLP
#32

Cabinet assy diagram

Panasonic magnetron

Part #2M261-M32KLP

In Stock
