Model # 4685AT-1 Official Eureka vacuum

Here are the diagrams and repair parts for Official Eureka 4685AT-1 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

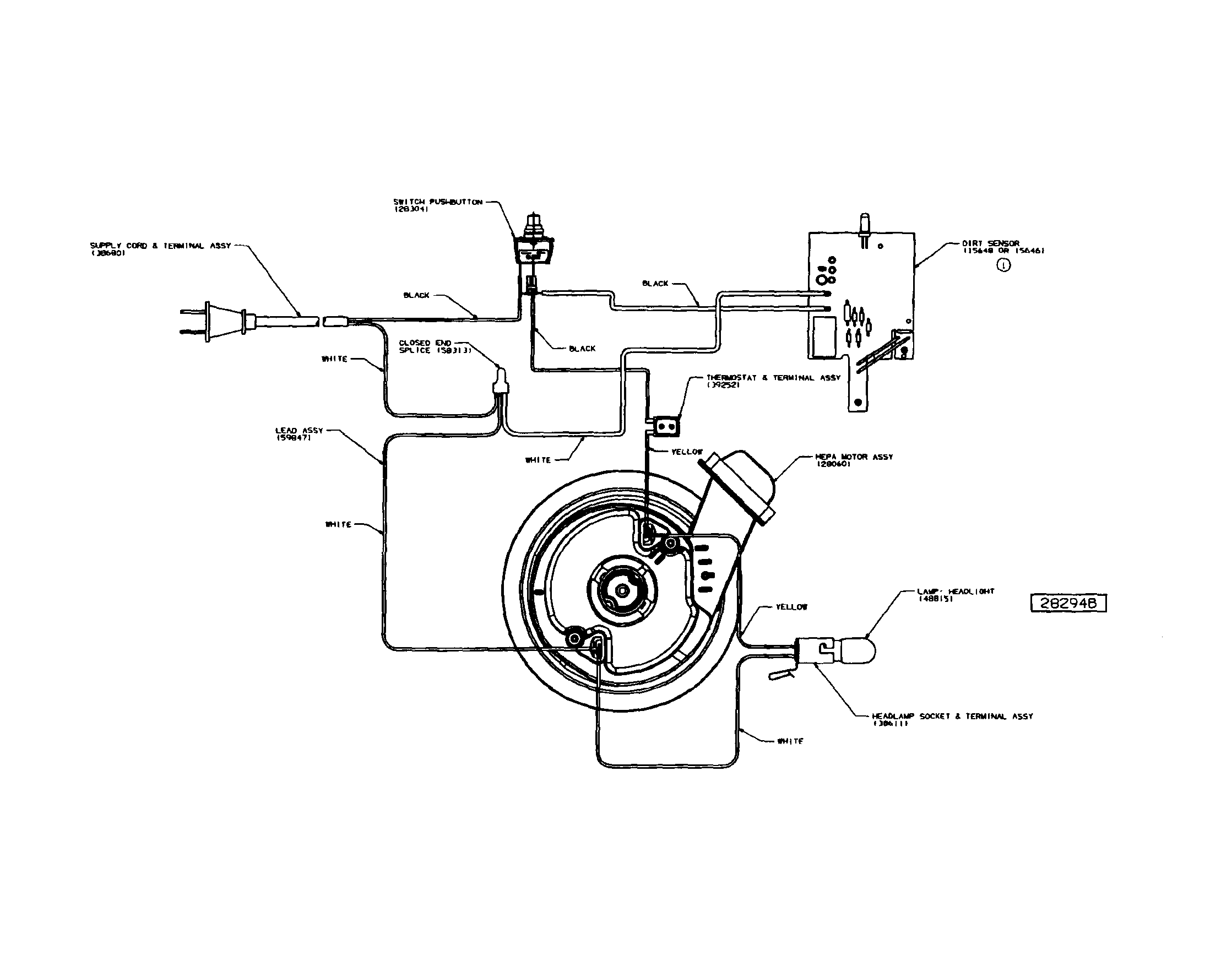

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |

Tube 59362B
#16

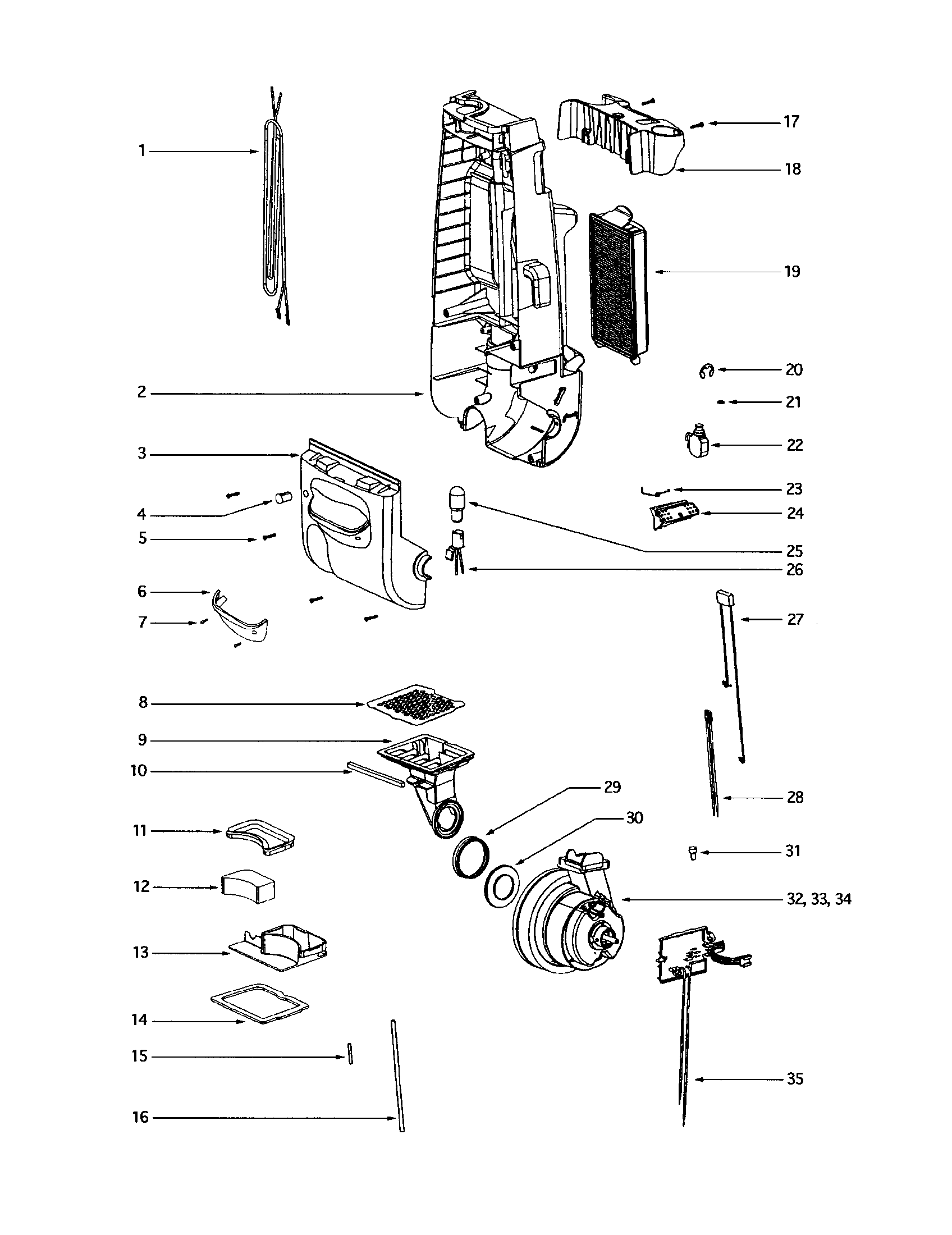

Motor cover diagram

Tube

Part #59362B

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle Bracket 14993C-119N
#21

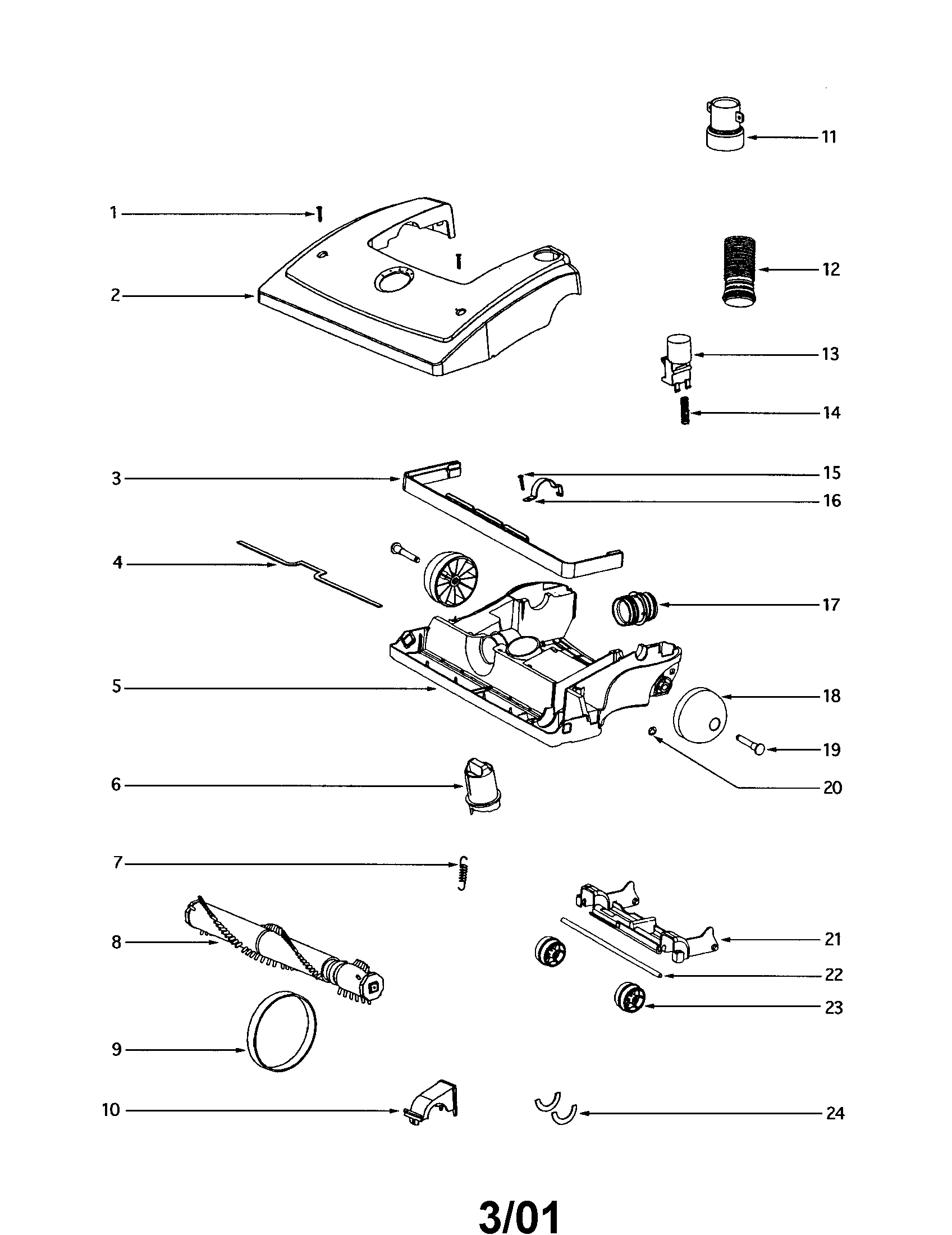

Base diagram

Vacuum wheel axle bracket

Part #14993C-119N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 39351
#21

Cyclone diagram

Gasket

Part #39351

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 39252-2
#27

Motor cover diagram

Thermostat

Part #39252-2

The manufacturer no longer makes this part, and there's no substitute part

Hardware 70790-1
#4

Hose diagram

Hardware

Part #70790-1

The manufacturer no longer makes this part, and there's no substitute part

Plenum 28461-288N
#18

Cyclone diagram

Plenum

Part #28461-288N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 28304A
#22

Motor cover diagram

Vacuum on/off switch

Part #28304A

The manufacturer no longer makes this part, and there's no substitute part

Gasket 39350
#20

Cyclone diagram

Gasket

Part #39350

The manufacturer no longer makes this part, and there's no substitute part

Wand 58728B
#3

Hose diagram

Wand

Part #58728B

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27171A
#29

Motor cover diagram

Gasket

Part #27171A

The manufacturer no longer makes this part, and there's no substitute part
