Tecumseh
Lawn & Garden Engine

Model # AH600-1627B Official Tecumseh gas engine

Here are the diagrams and repair parts for Official Tecumseh AH600-1627B gas engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Lawn & Garden Equipment Engine Oil Seal 510319
#10

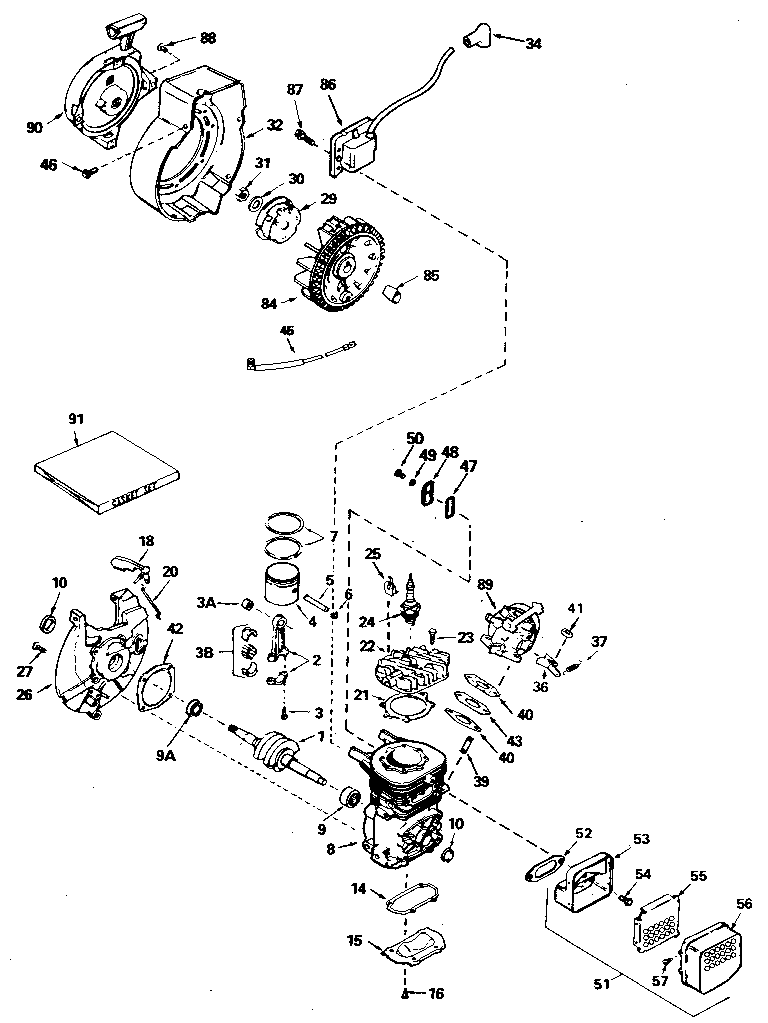

Replacement parts diagram

Lawn & garden equipment engine oil seal

Part #510319

$8.20
In Stock
Adjustment Lever 570645
#36

Replacement parts diagram

Adjustment lever

Part #570645

This item is not returnable
$2.16
In Stock
Screw 650814
#87

Replacement parts diagram

Screw

Part #650814

Replaced by #651007

?
Manufacturer substitution
This part replaces 650814. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Gasket 510326
#40

Replacement parts diagram

Gasket

Part #510326

Replaced by #510326A

?
Manufacturer substitution
This part replaces 510326. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Carburetor 632410
#89

Replacement parts diagram

Carburetor

Part #632410

Replaced by #640092A

?
Manufacturer substitution
This part replaces 632410. Substitute parts can look different from the original.
$94.99 |
6% OFF Phone Price : $100.99
In Stock
Housing Base 350422
#26

Replacement parts diagram

Housing base

Part #350422

$44.93
In Stock
Screw 650477
#23

Replacement parts diagram

Screw

Part #650477

This item is not returnable
$2.16
In Stock
Sleeve 611032
#85

Replacement parts diagram

Sleeve

Part #611032

$9.11
In Stock
Screw 650579
Screw

Part #650579

This item is not returnable
$2.16
In Stock
Stud 650527
#39

Replacement parts diagram

Stud

Part #650527

This item is not returnable
$2.16
In Stock
