Model # GR-DVL725U Official JVC digital video camera

Here are the diagrams and repair parts for Official JVC GR-DVL725U digital video camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Camcorder Speaker QAS0048-001
#109

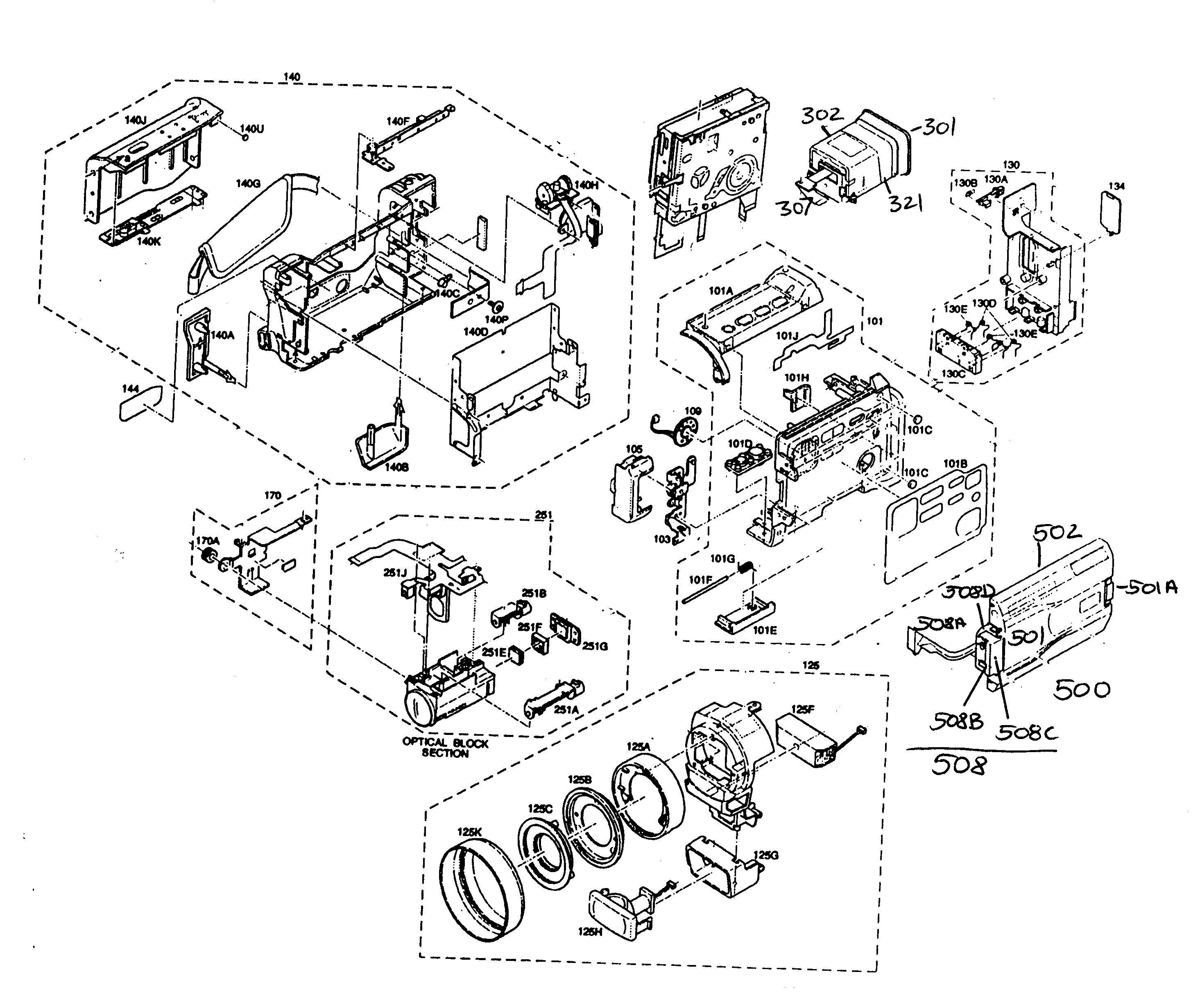

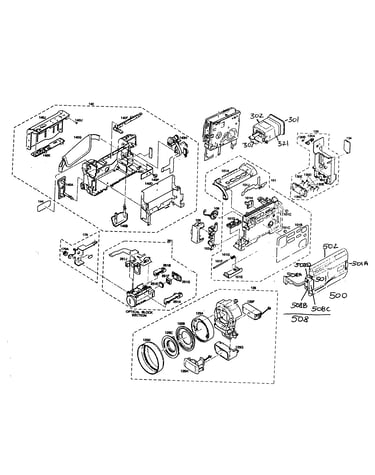

Cabinet parts 2 diagram

Camcorder speaker

Part #QAS0048-001

The manufacturer no longer makes this part, and there's no substitute part

Spacer LY40664-001A
#101C

Cabinet parts 2 diagram

Spacer

Part #LY40664-001A

The manufacturer no longer makes this part, and there's no substitute part

Ring LY32687-001B
#125B

Cabinet parts 2 diagram

Ring

Part #LY32687-001B

The manufacturer no longer makes this part, and there's no substitute part

Opt Lpf LY43384-001A
#251E

Cabinet parts 2 diagram

Opt lpf

Part #LY43384-001A

The manufacturer no longer makes this part, and there's no substitute part

Case A LY20766-001A
#302

Cabinet parts 2 diagram

Case a

Part #LY20766-001A

The manufacturer no longer makes this part, and there's no substitute part

Light QLL0121-001
#NI

Cabinet parts 1 diagram

Light

Part #QLL0121-001

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Plate LY43256-001A
#144

Cabinet parts 2 diagram

Adjustment plate

Part #LY43256-001A

The manufacturer no longer makes this part, and there's no substitute part

Cover(sd) LY32375-001A
#101E

Cabinet parts 2 diagram

Cover(sd)

Part #LY32375-001A

The manufacturer no longer makes this part, and there's no substitute part

Lcd Module QLD0154-001
#NI

Cabinet parts 1 diagram

Lcd module

Part #QLD0154-001

The manufacturer no longer makes this part, and there's no substitute part

Arm Assembly LY20770-001A
#140D

Cabinet parts 2 diagram

Arm assembly

Part #LY20770-001A

The manufacturer no longer makes this part, and there's no substitute part
