Model # 20M100 (0133-1416) Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 20M100-0133-1416 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

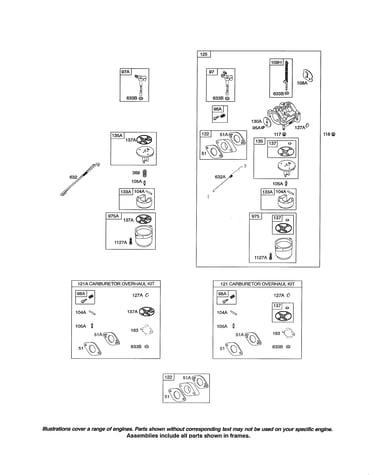

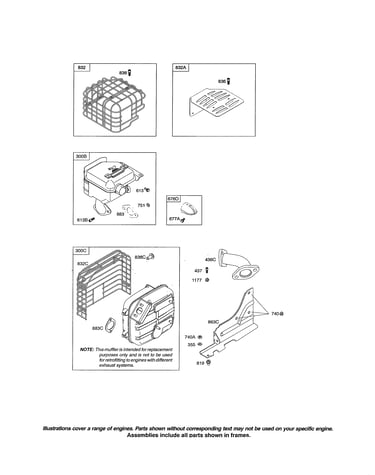

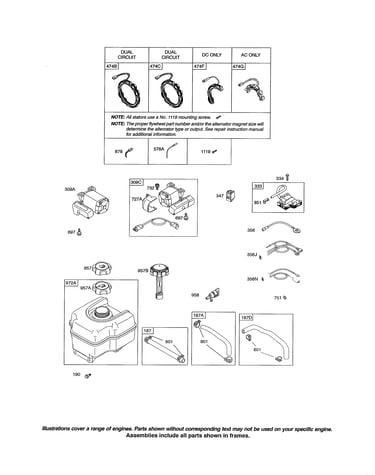

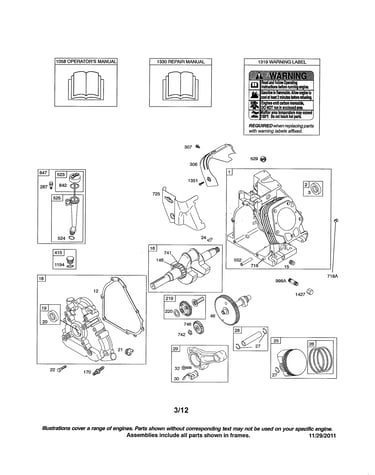

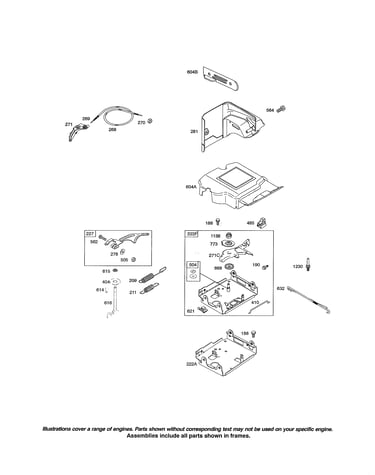

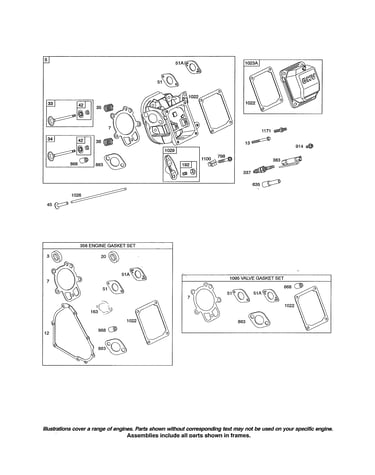

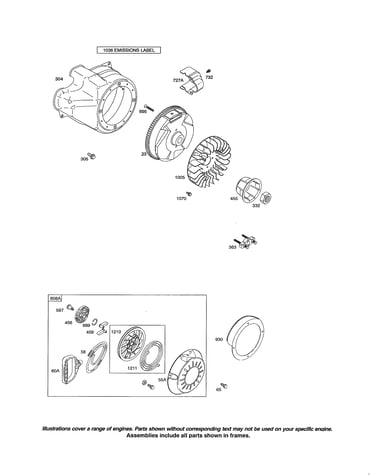

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 236 parts  |
Lawn & Garden Equipment Engine Fuel Line (replaces 1734994sm, 327290ma, 691050, 7012638yp, 7032016yp, 7032956yp, 7041996yp, 7076272yp, 7077351yp, 791866, 798512, 809322, 809499) 791766

#187

All parts diagram

Lawn & garden equipment engine fuel line (replaces 1734994sm, 327290ma, 691050, 7012638yp, 7032016yp, 7032956yp, 7041996yp, 7076272yp, 7077351yp, 791866, 798512, 809322, 809499)

Part #791766

BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Lawn & Garden Equipment Engine Spark Plug (replaces Bs-691043) 691043

#337A

All parts diagram

Lawn & garden equipment engine spark plug (replaces bs-691043)

Part #691043

BEST SELLER

Get free shipping with Automatic Reorder

$7.27 |
12% OFF Phone Price : $8.27
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pulley (replaces 263074, 281504, Bs-498144) 498144
Lawn & garden equipment engine recoil starter pulley (replaces 263074, 281504, bs-498144)

Part #498144

BEST SELLER
$23.76 |
20% OFF Phone Price : $29.76
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl Friction Plate (replaces 281503, Bs-692299) 692299

#456

All parts diagram

Lawn & garden equipment engine recoil starter pawl friction plate (replaces 281503, bs-692299)

Part #692299

This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
Lawn & Garden Equipment Engine Fuel Shut-off Valve (replaces 692586, 698181) 698180

#958

All parts diagram

Lawn & garden equipment engine fuel shut-off valve (replaces 692586, 698181)

Part #698180

This item is not returnable
$19.94 |
9% OFF Phone Price : $21.94
In Stock
Lawn & Garden Equipment Engine Carburetor Primer Hose (replaces 399256, 696751, Bs-793006) 793006

#528

All parts diagram

Lawn & garden equipment engine carburetor primer hose (replaces 399256, 696751, bs-793006)

Part #793006

This item is not returnable
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Lawn & Garden Equipment Engine Carburetor Primer Assembly (replaces 790221, Bs-793382) 793382

#976

All parts diagram

Lawn & garden equipment engine carburetor primer assembly (replaces 790221, bs-793382)

Part #793382

This item is not returnable
$14.63 |
12% OFF Phone Price : $16.63
In Stock
Lawn & Garden Equipment Engine Safety Key (replaces 1501214, 695756, Bs-695756, Bs-794696) 794696

#990A

All parts diagram

Lawn & garden equipment engine safety key (replaces 1501214, 695756, bs-695756, bs-794696)

Part #794696

$10.74 |
16% OFF Phone Price : $12.74
In Stock
Lawn & Garden Equipment Engine Fuel Line Clamp 791850

#601

All parts diagram

Lawn & garden equipment engine fuel line clamp

Part #791850

This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Lawn & Garden Equipment Engine Recoil Starter Friction Spring (replaces 263073, Bs-691855) 691855

#689

All parts diagram

Lawn & garden equipment engine recoil starter friction spring (replaces 263073, bs-691855)

Part #691855

This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
