Model # R-20ET Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-20ET microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Temperature Fuse QFS-TA013WRE0
#110

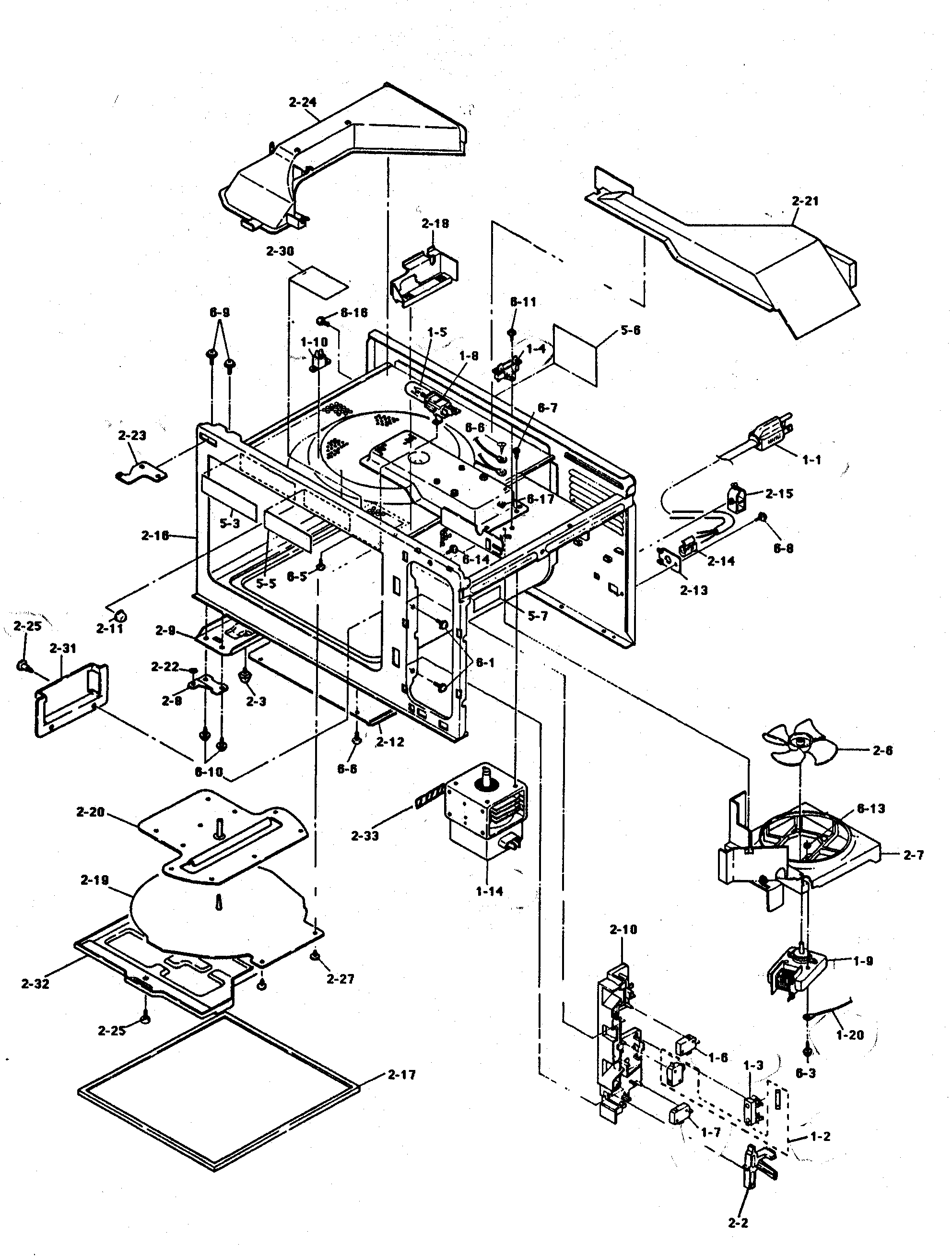

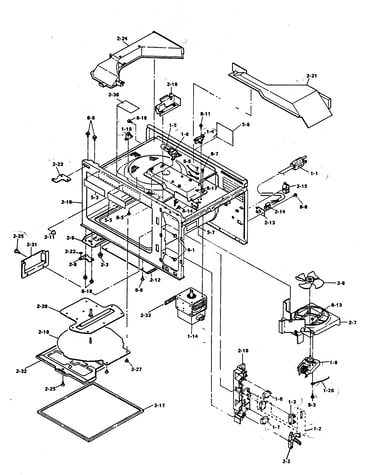

Cavity assy diagram

Temperature fuse

Part #QFS-TA013WRE0

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Switch QSW-MA018WRE0
#17

Cavity assy diagram

Kenmore switch

Part #QSW-MA018WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Interlock Switch And Fuse FFSBA015KIT
#12

Cavity assy diagram

Microwave door interlock switch and fuse

Part #FFSBA015KIT

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA022WRE0
#16

Cavity assy diagram

Switch

Part #QSW-MA022WRE0

The manufacturer no longer makes this part, and there's no substitute part

Clip PCLIC0020MRE0
#227

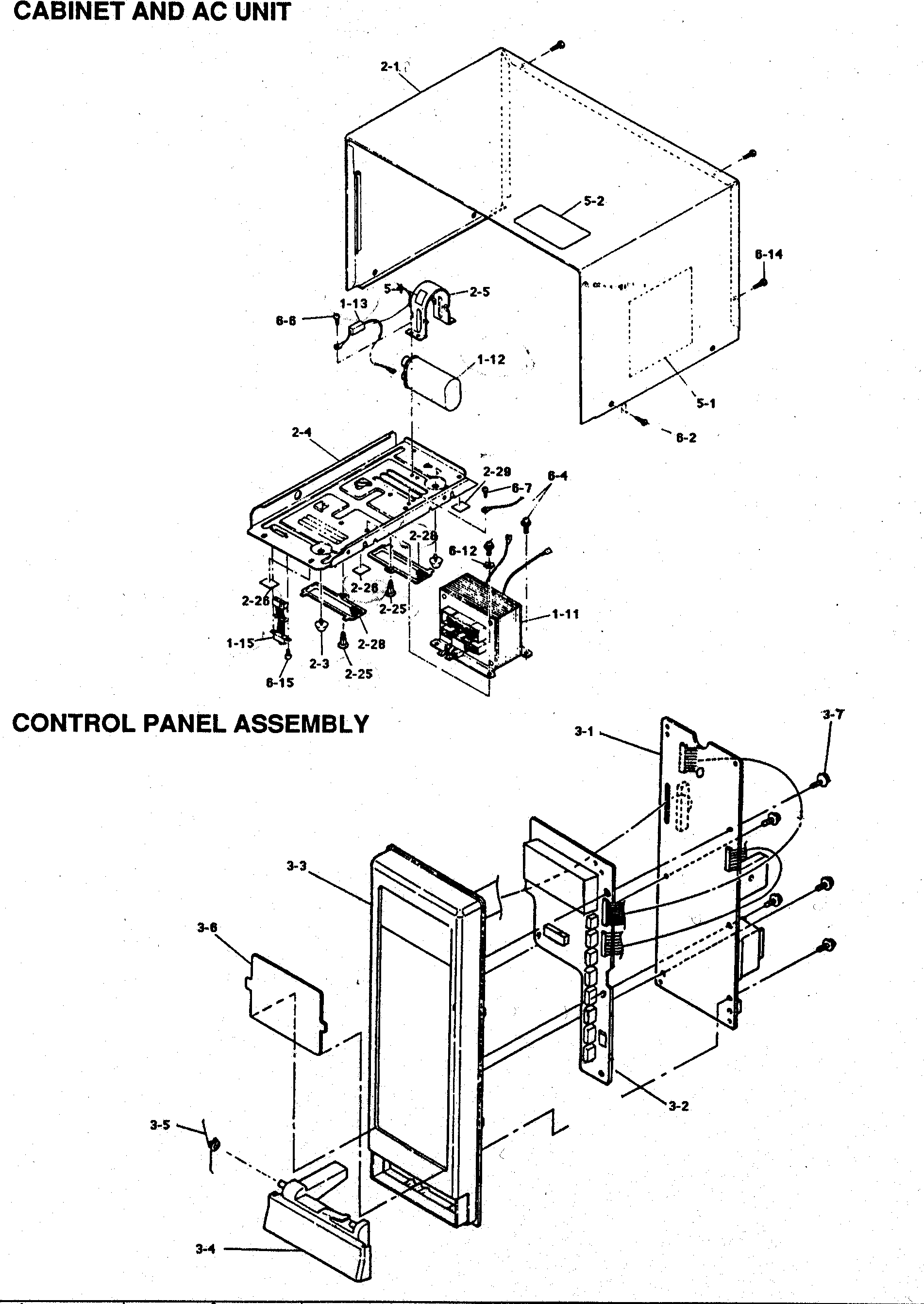

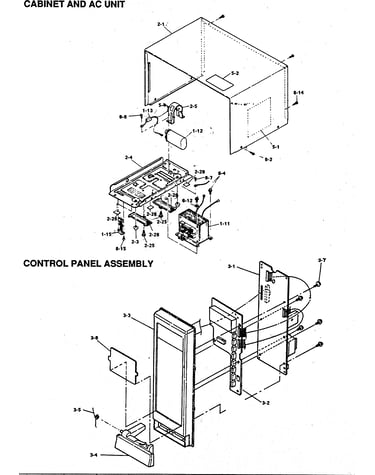

Cabinet/ac unit/control panel assy diagram

Clip

Part #PCLIC0020MRE0

The manufacturer no longer makes this part, and there's no substitute part

Filter Lamp PFILWA016WRP0
#230

Cavity assy diagram

Filter lamp

Part #PFILWA016WRP0

The manufacturer no longer makes this part, and there's no substitute part

Fuse QFS-T0018MRE0
#14

Cavity assy diagram

Fuse

Part #QFS-T0018MRE0

The manufacturer no longer makes this part, and there's no substitute part

Hook PHOK-B001MRF0
#210

Cabinet/ac unit/control panel assy diagram

Hook

Part #PHOK-B001MRF0

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTA046WRE0
#43

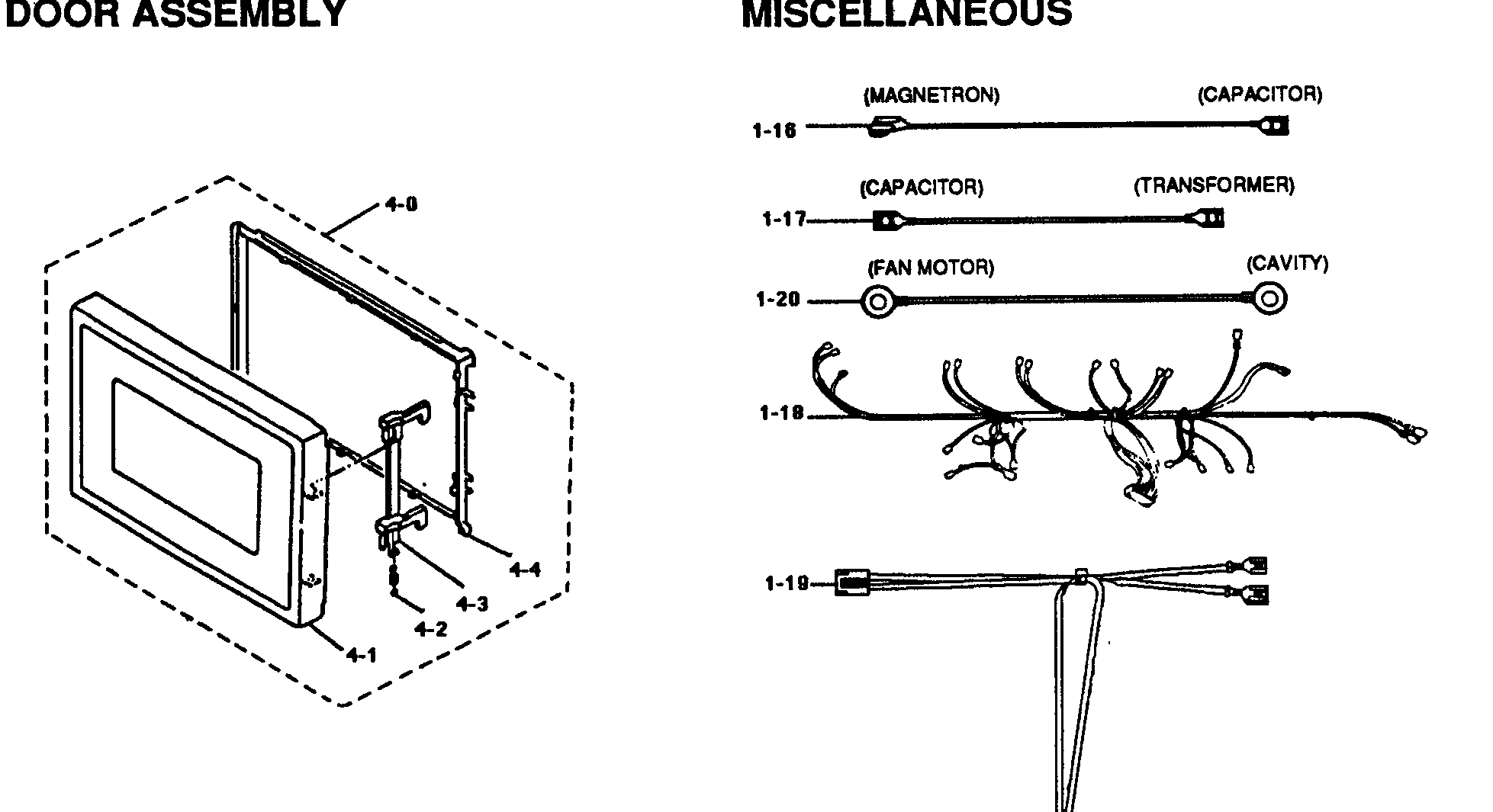

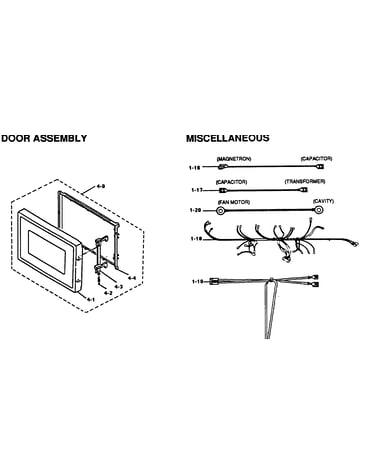

Door assy/miscellaneous diagram

Spring

Part #MSPRTA046WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPT0003YBE0
#15

Cavity assy diagram

Microwave lamp

Part #RLMPT0003YBE0

The manufacturer no longer makes this part, and there's no substitute part
