Model # PG8MAA036070AAJA Official Payne furnace

Here are the diagrams and repair parts for Official Payne PG8MAA036070AAJA furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

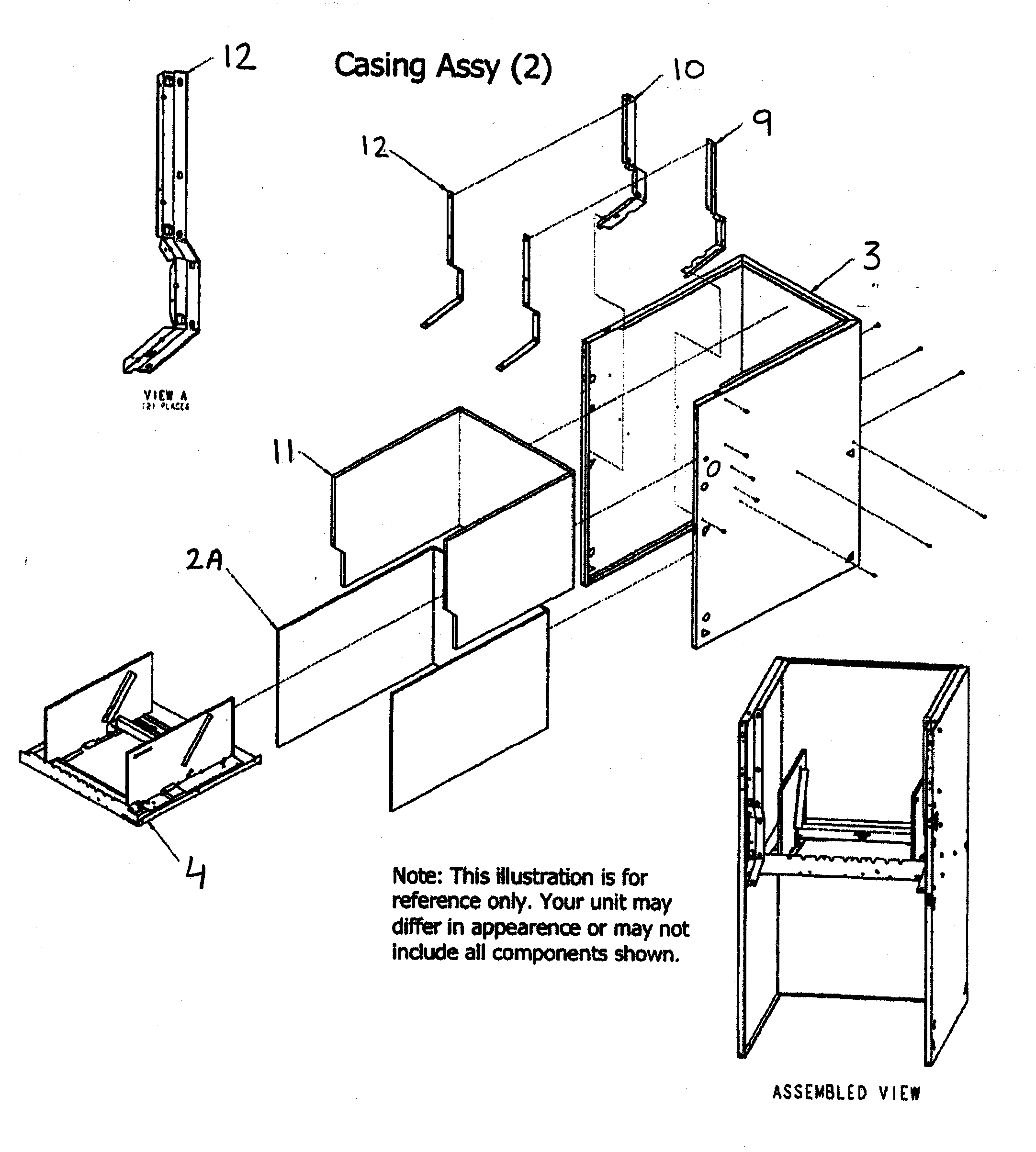

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Capactr Run P291-0753
#56A

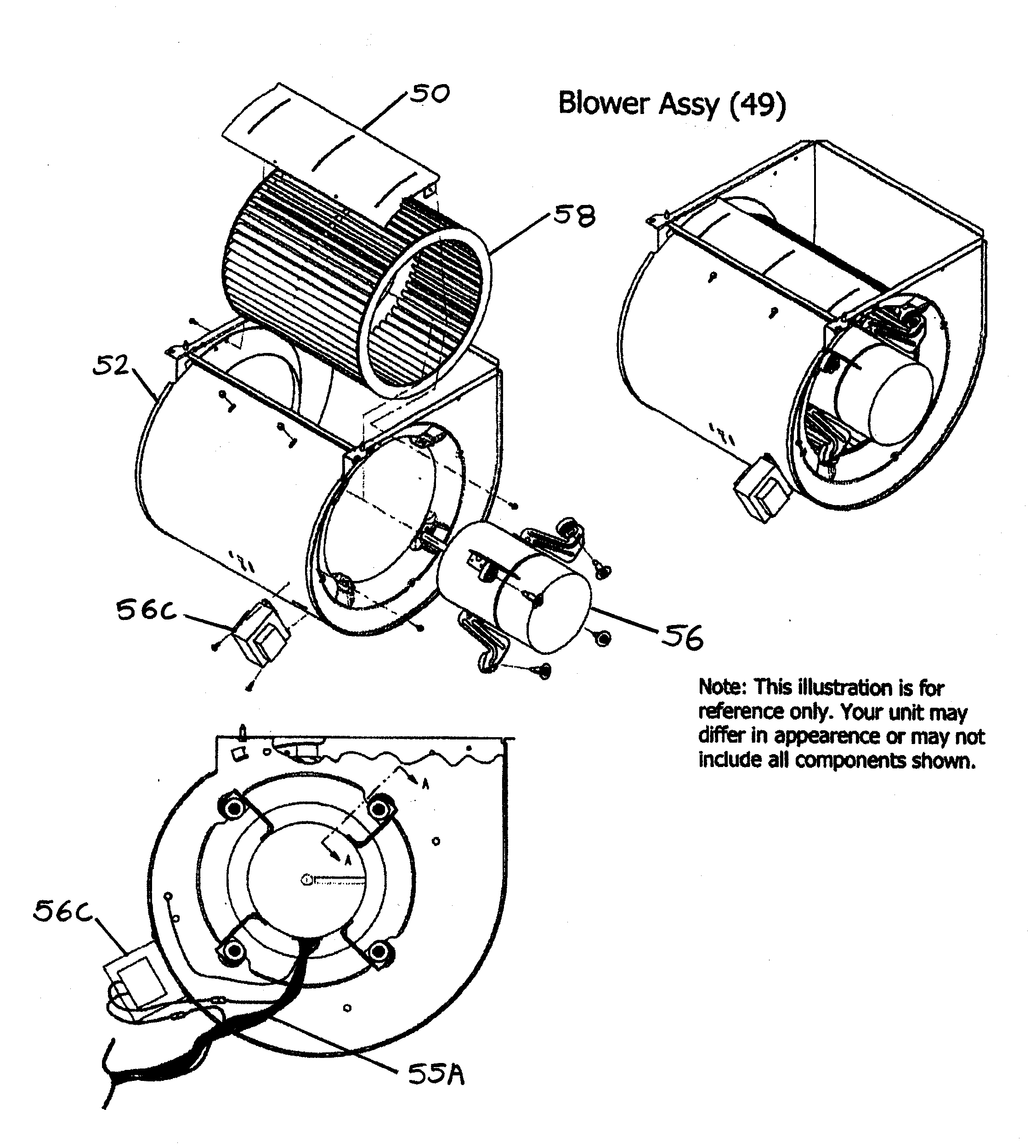

Blower assy diagram

Capactr run

Part #P291-0753

Replaced by #12907

?
Manufacturer substitution
This part replaces P291-0753. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Control Board HK42FZ013
#46

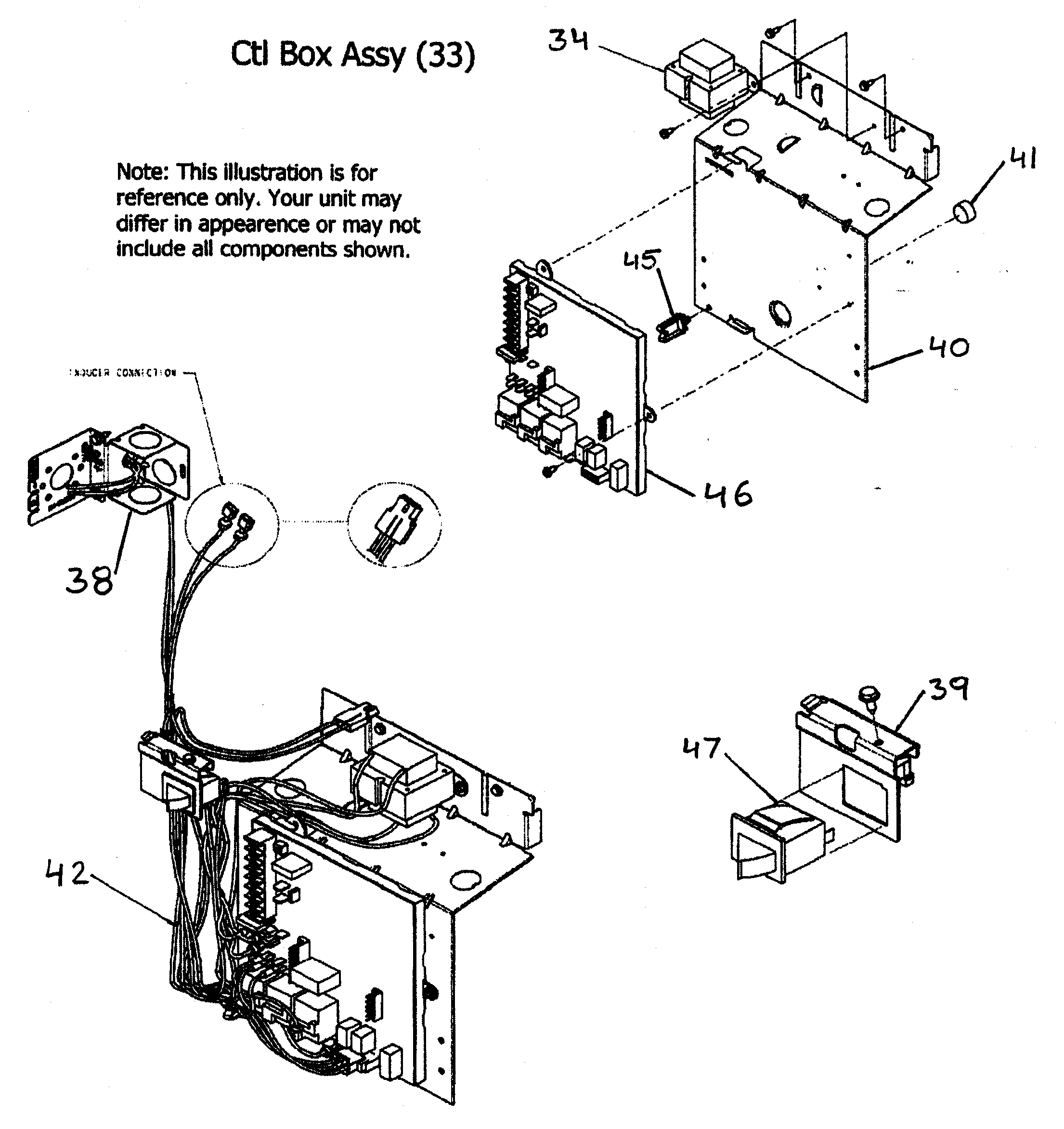

Control box assy diagram

Control board

Part #HK42FZ013

Replaced by #HK42FZ034

?
Manufacturer substitution
This part replaces HK42FZ013. Substitute parts can look different from the original.
This item is not returnable
$557.60
In Stock
Furnace Burner Igniter (replaces 331930-751, 41-403) LH33ZS004
#90

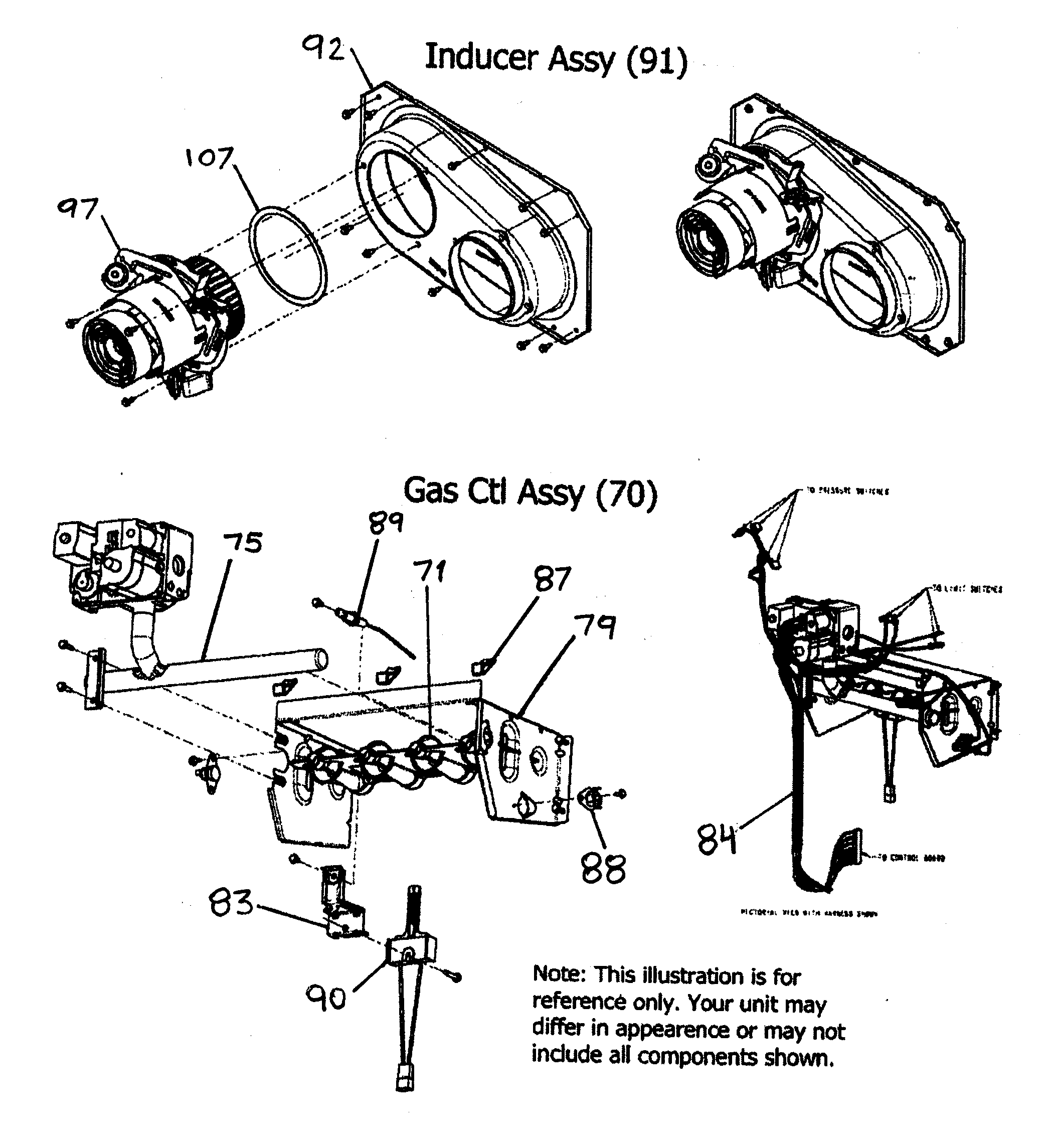

Inducer assy diagram

Furnace burner igniter (replaces 331930-751, 41-403)

Part #LH33ZS004

$47.08 |
11% OFF Phone Price : $53.08
In Stock
Furnace Heat Exchanger 326600-751
#60

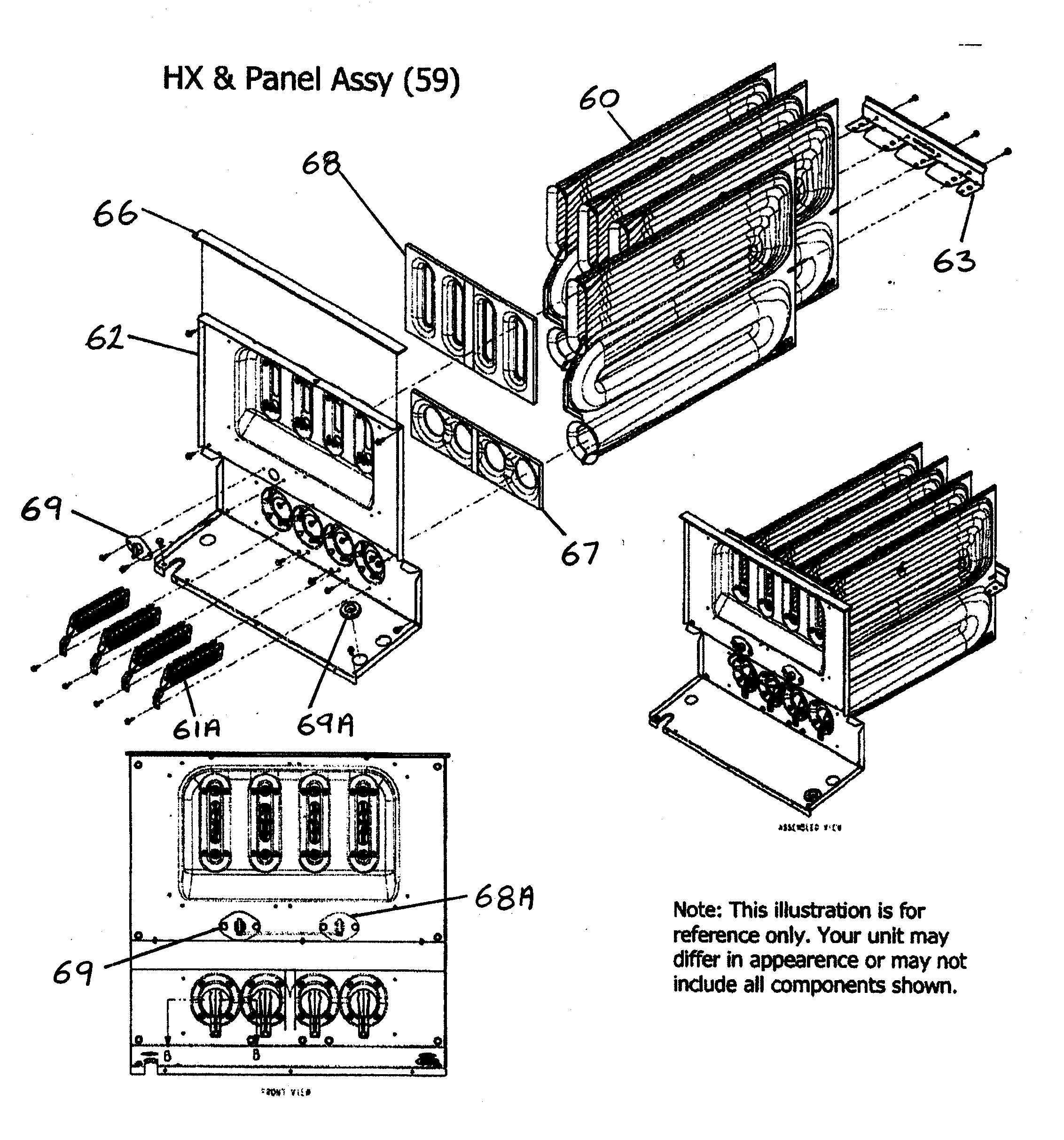

Hx/panel assy diagram

Furnace heat exchanger

Part #326600-751

$139.71 |
8% OFF Phone Price : $151.71
In Stock
Furnace Burner Flame Sensor LH680-014
#89

Inducer assy diagram

Furnace burner flame sensor

Part #LH680-014

$51.20
In Stock
Furnace Temperature Limit Switch HH18HA499
#69

Hx/panel assy diagram

Furnace temperature limit switch

Part #HH18HA499

$15.90 |
11% OFF Phone Price : $17.90
In Stock
Furnace Screw Grommet AS88PD005
#23B

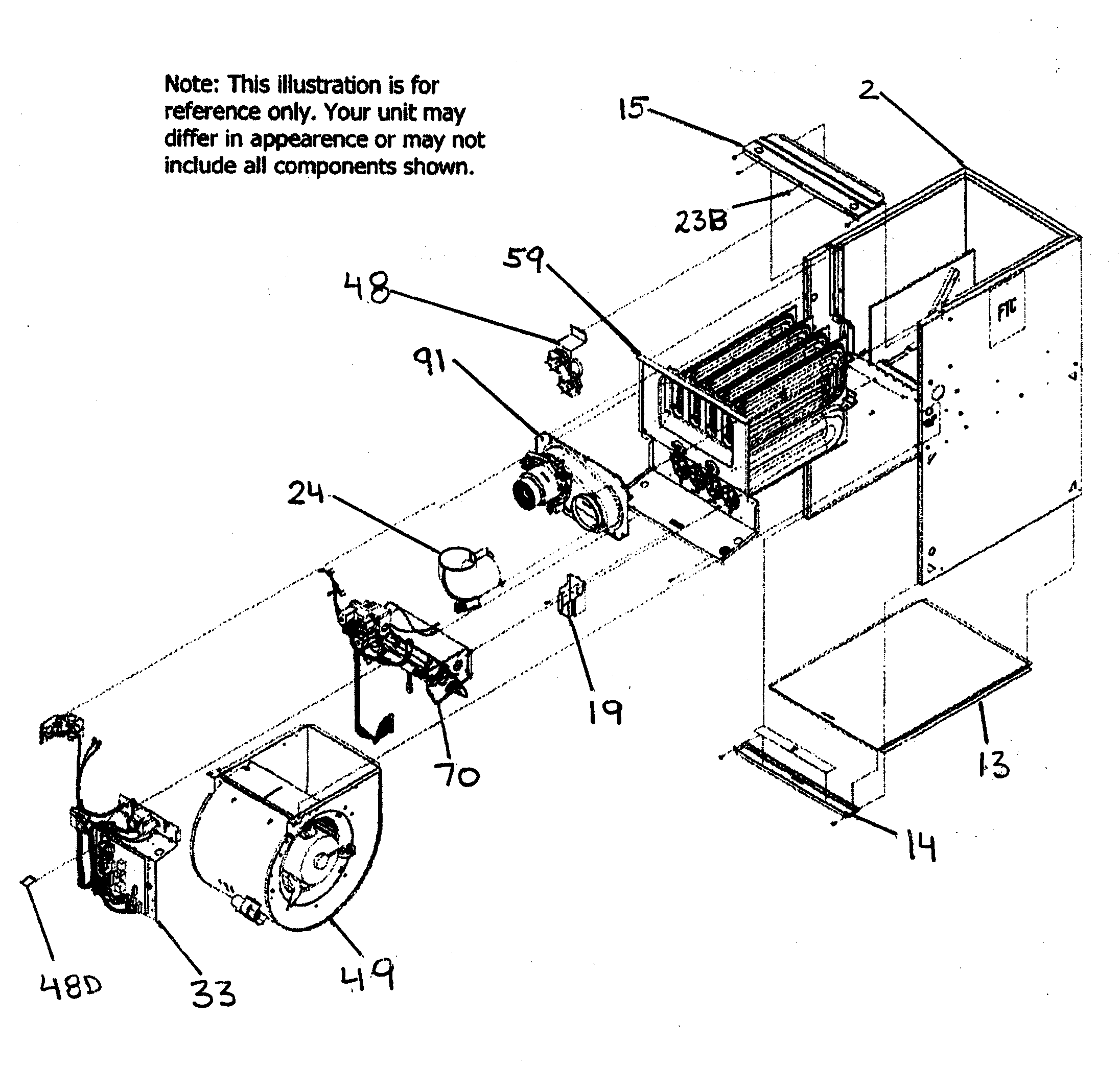

Cabinet assy diagram

Furnace screw grommet

Part #AS88PD005

This item is not returnable
$8.23
In Stock
Furnace Temperature Limit Switch HH18HA493
#32

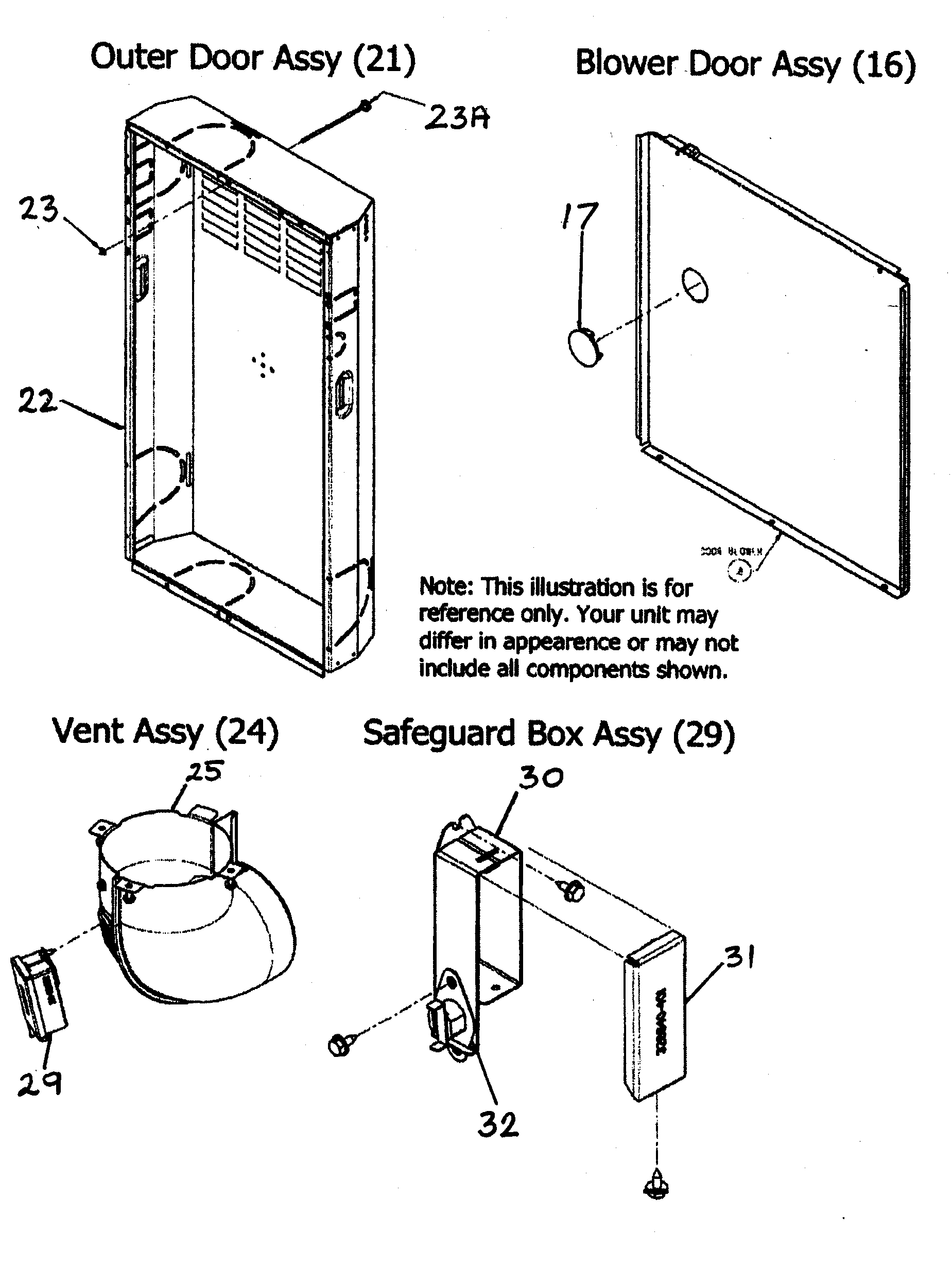

Outer door/vent assy diagram

Furnace temperature limit switch

Part #HH18HA493

This item is not returnable
$18.83
In Stock
Furnace Burner 326643-702
#71

Inducer assy diagram

Furnace burner

Part #326643-702

$37.40
In Stock
Furnace Inducer Vent Motor HC21ZE121
#97A

Inducer assy diagram

Furnace inducer vent motor

Part #HC21ZE121

$152.14 |
7% OFF Phone Price : $164.14
In Stock
