Kenmore
Countertop Microwave

Model # 72169079900 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72169079900 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

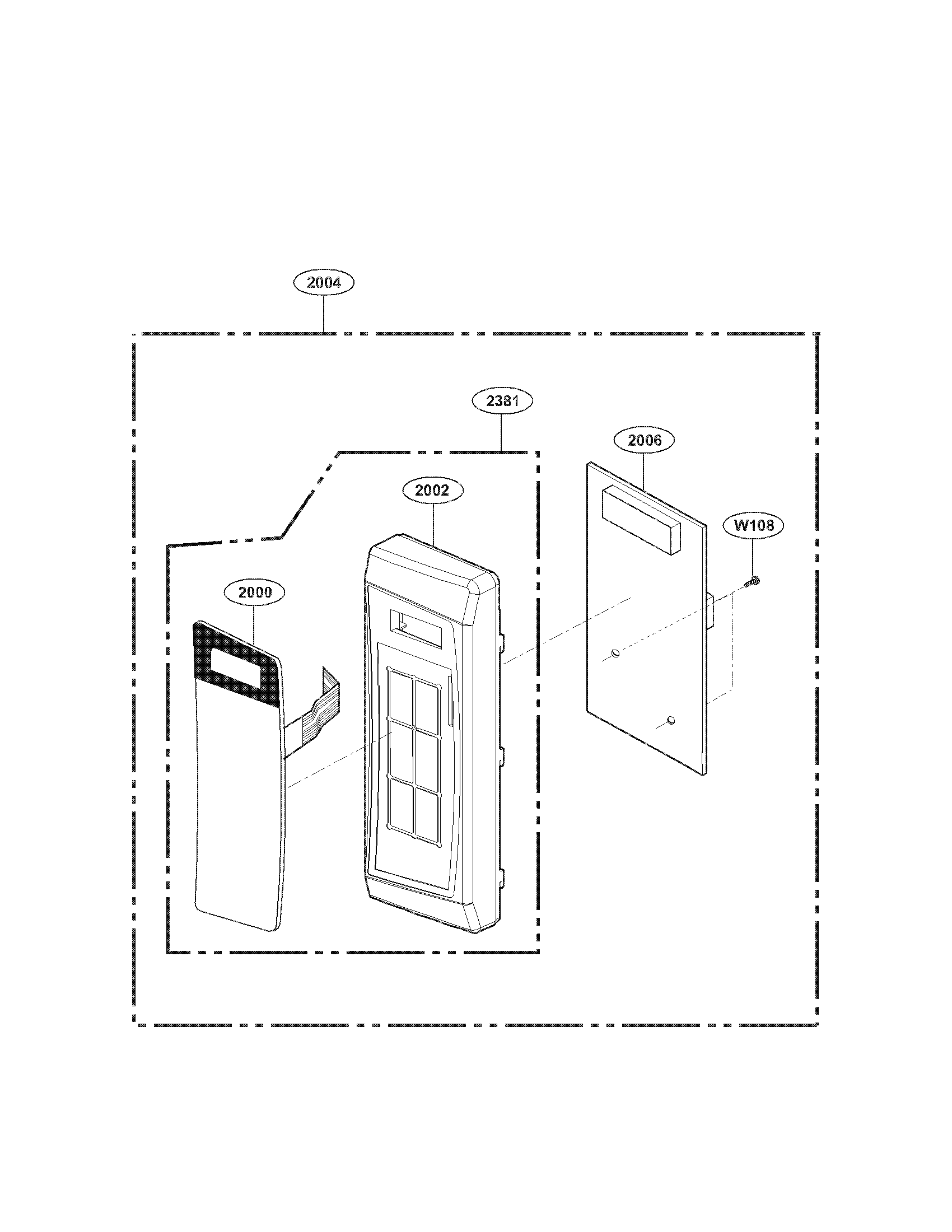

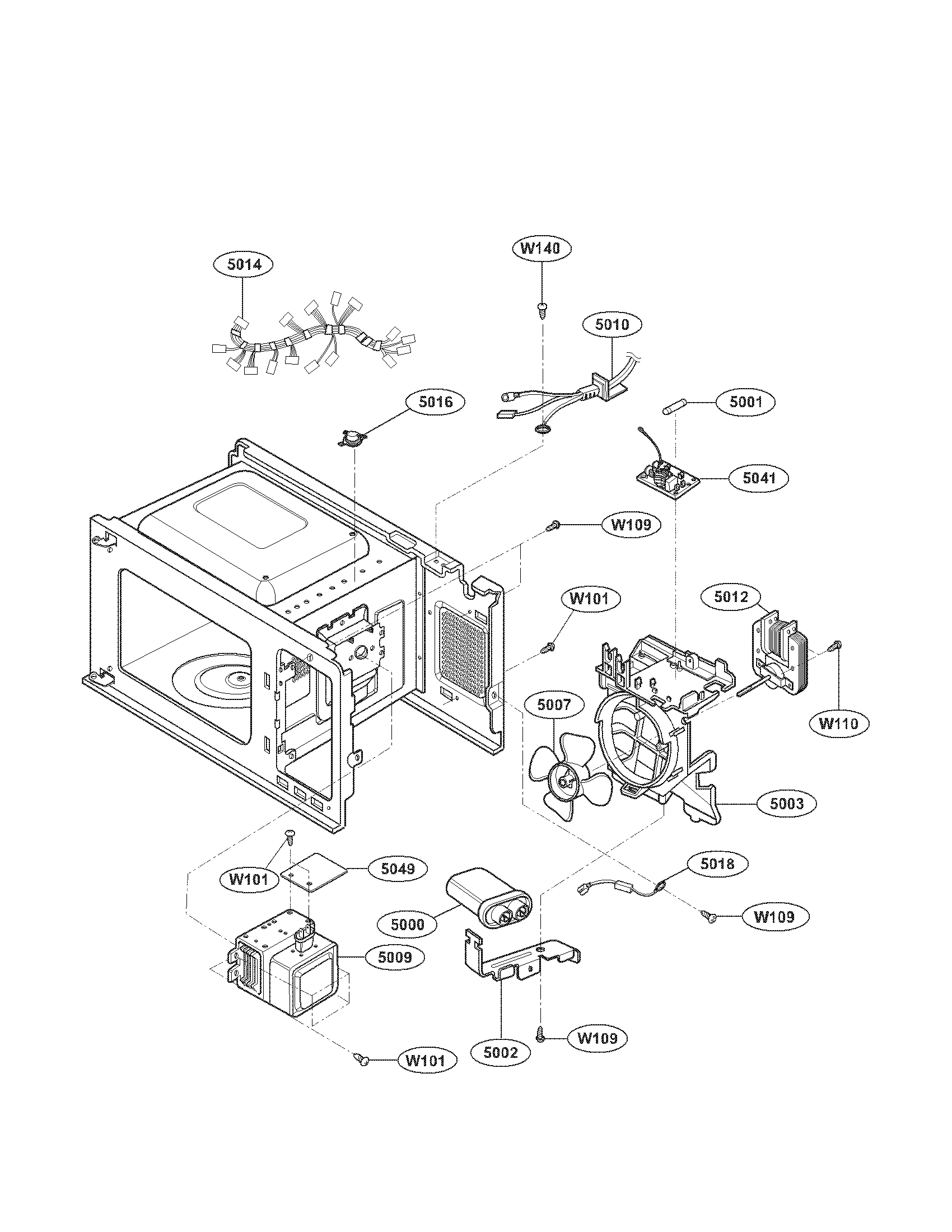

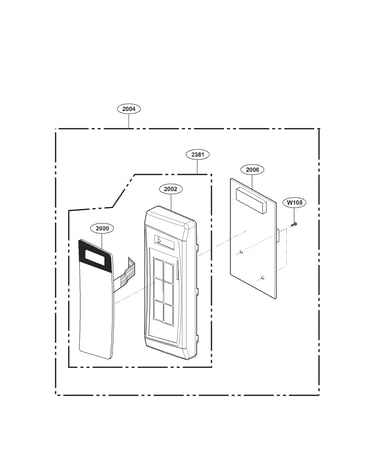

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

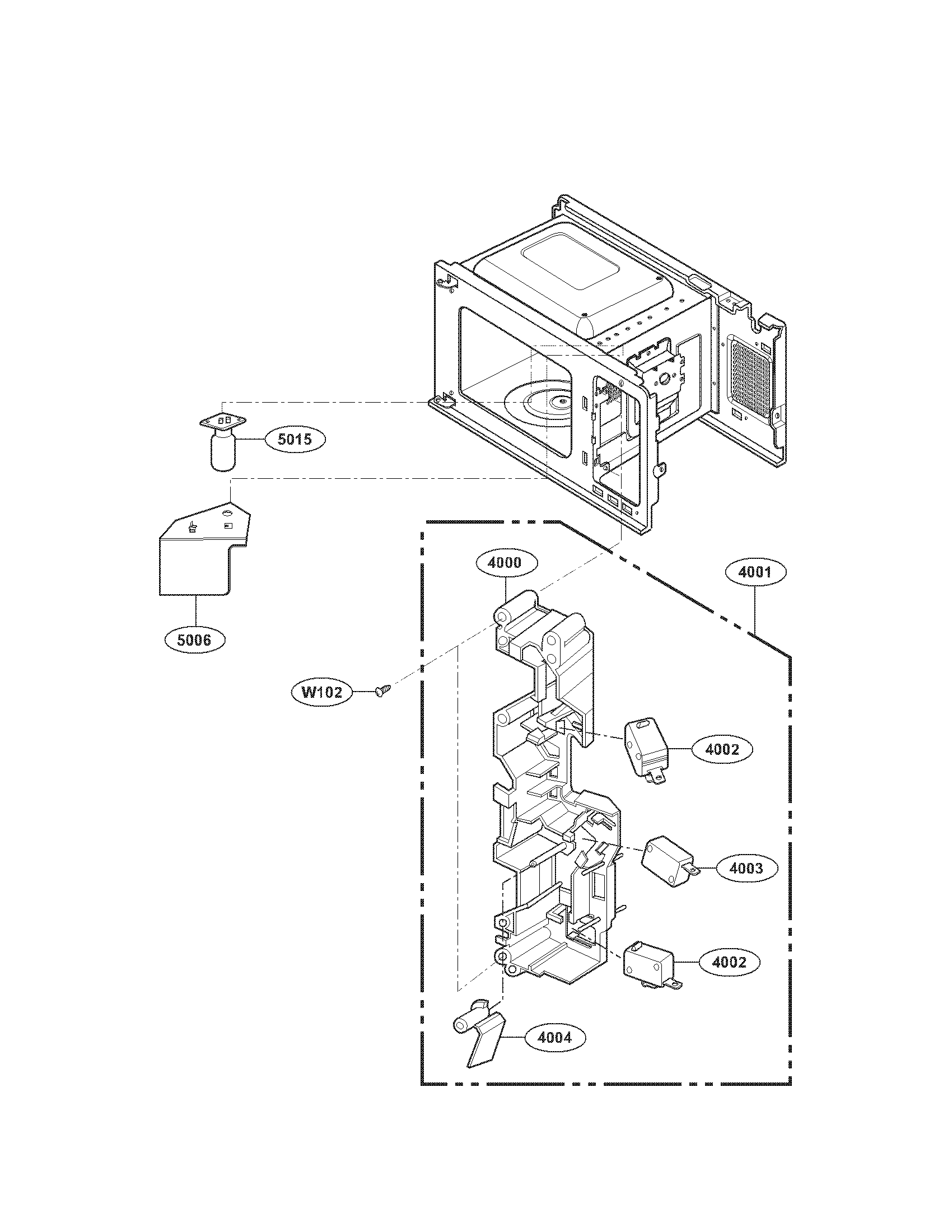

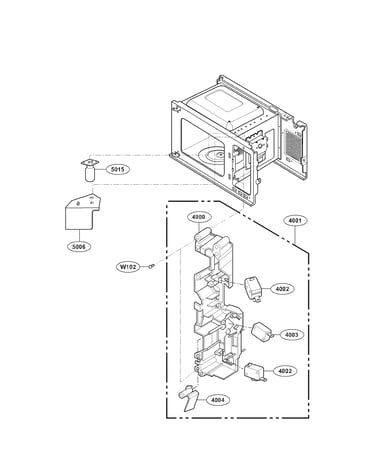

Latchboard parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Spring 4970WRA001D
#1007

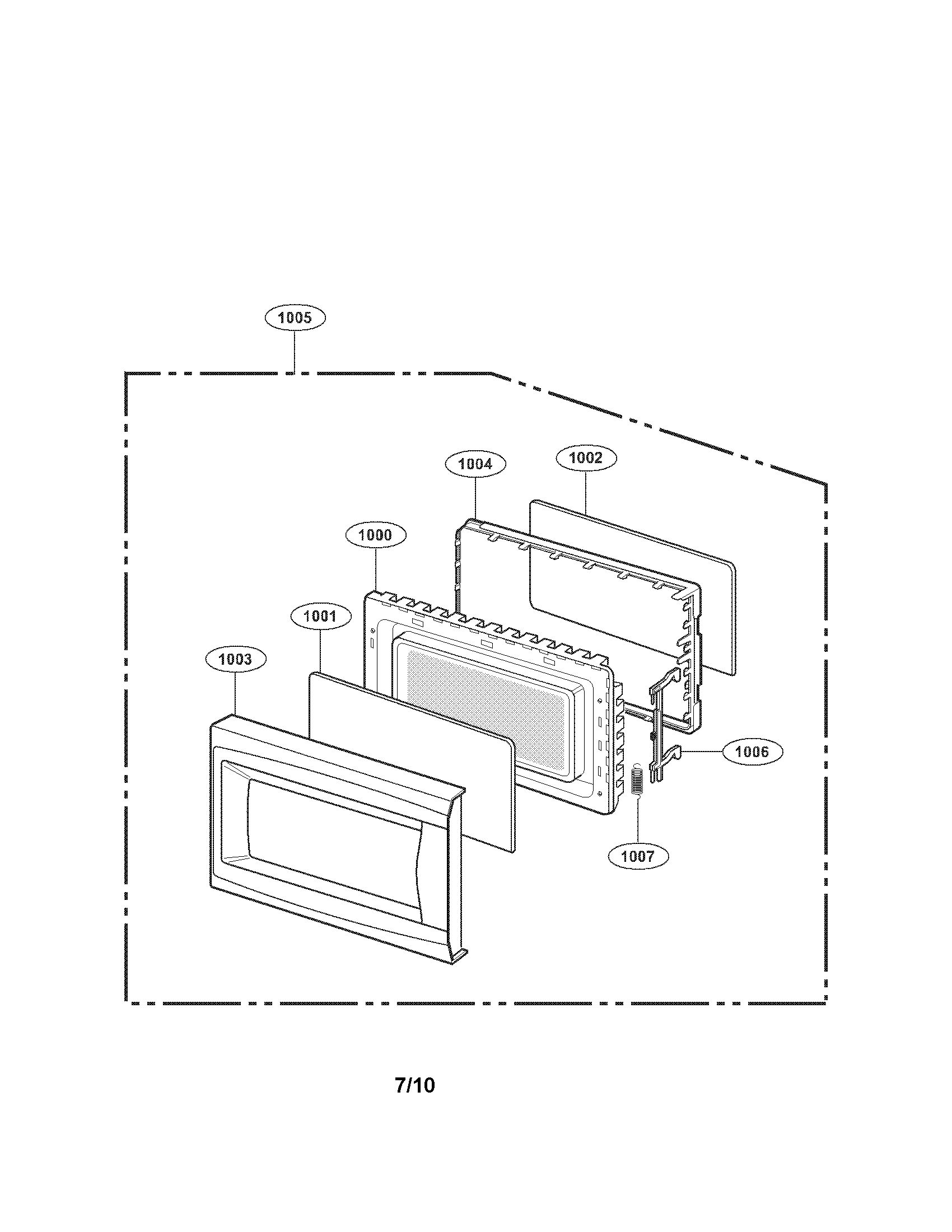

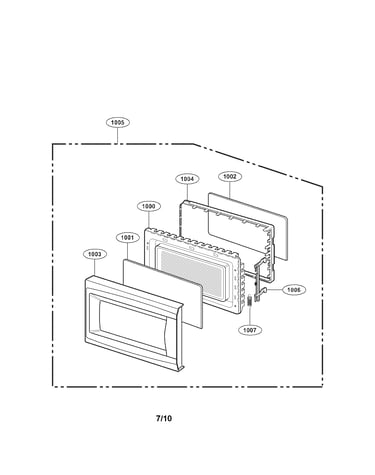

Door parts diagram

Spring

Part #4970WRA001D

Replaced by #4970WRA001G

?
Manufacturer substitution
This part replaces 4970WRA001D. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Turntable Motor (replaces 6549w1s011c, 6549w1s017a) 6549W1S011B
#3009

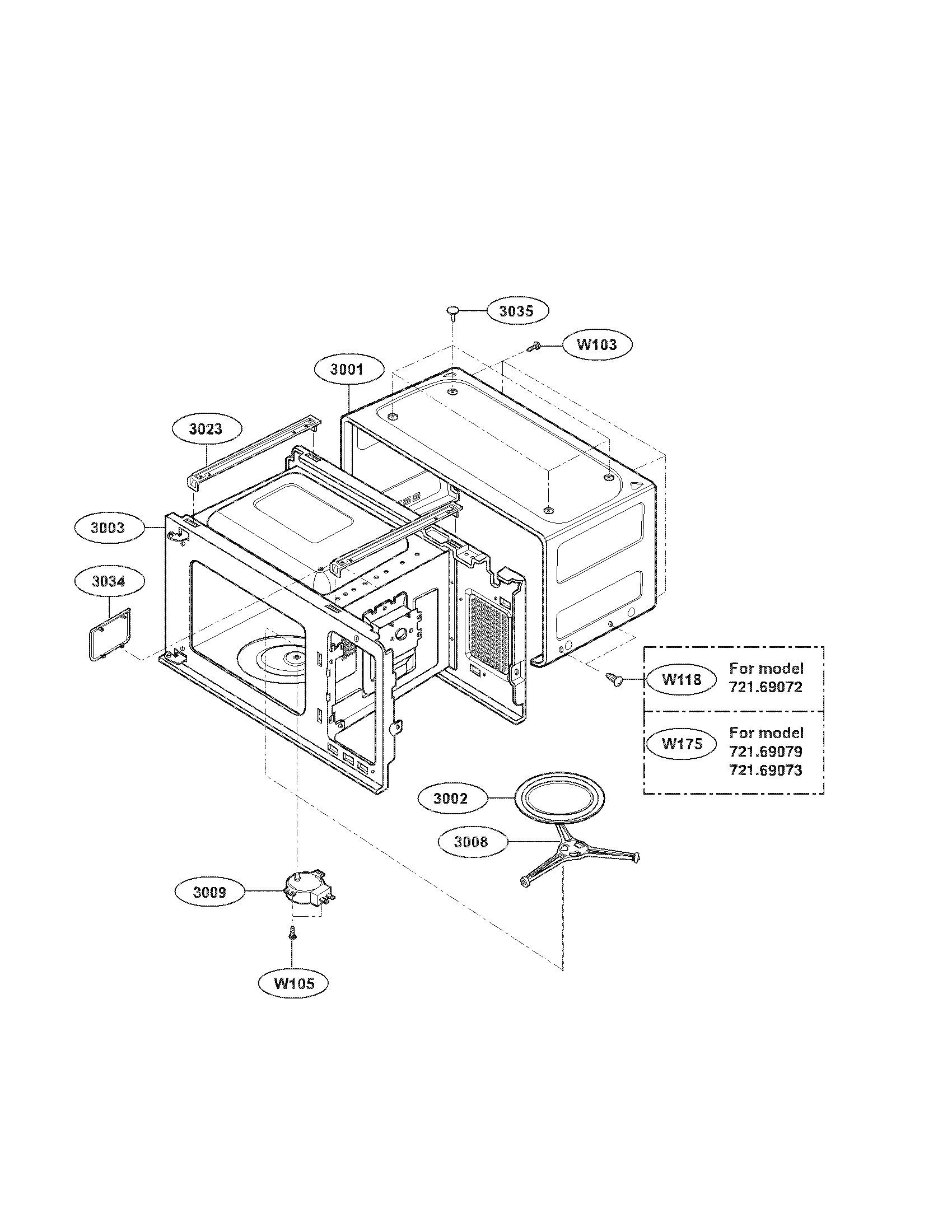

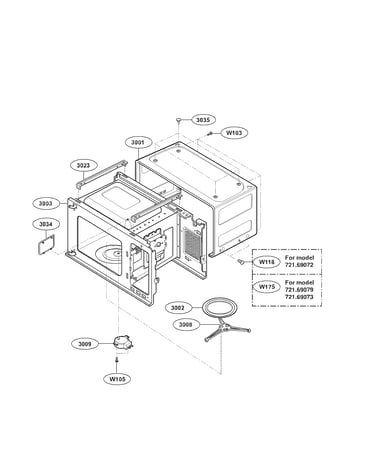

Oven cavity parts diagram

Microwave turntable motor (replaces 6549w1s011c, 6549w1s017a)

Part #6549W1S011B

BEST SELLER
This item is not returnable
$21.20 |
22% OFF Phone Price : $27.20
In Stock
Microwave Glass Turntable Tray 3390W1A035D
#3002

Oven cavity parts diagram

Microwave glass turntable tray

Part #3390W1A035D

This item is not returnable
$14.36 |
12% OFF Phone Price : $16.36
In Stock
Us Pressed Steel Microwave Screw 4B70188C
#W102

Latchboard parts diagram

Us pressed steel microwave screw

Part #4B70188C

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Screw 1SBF0402418
#W101

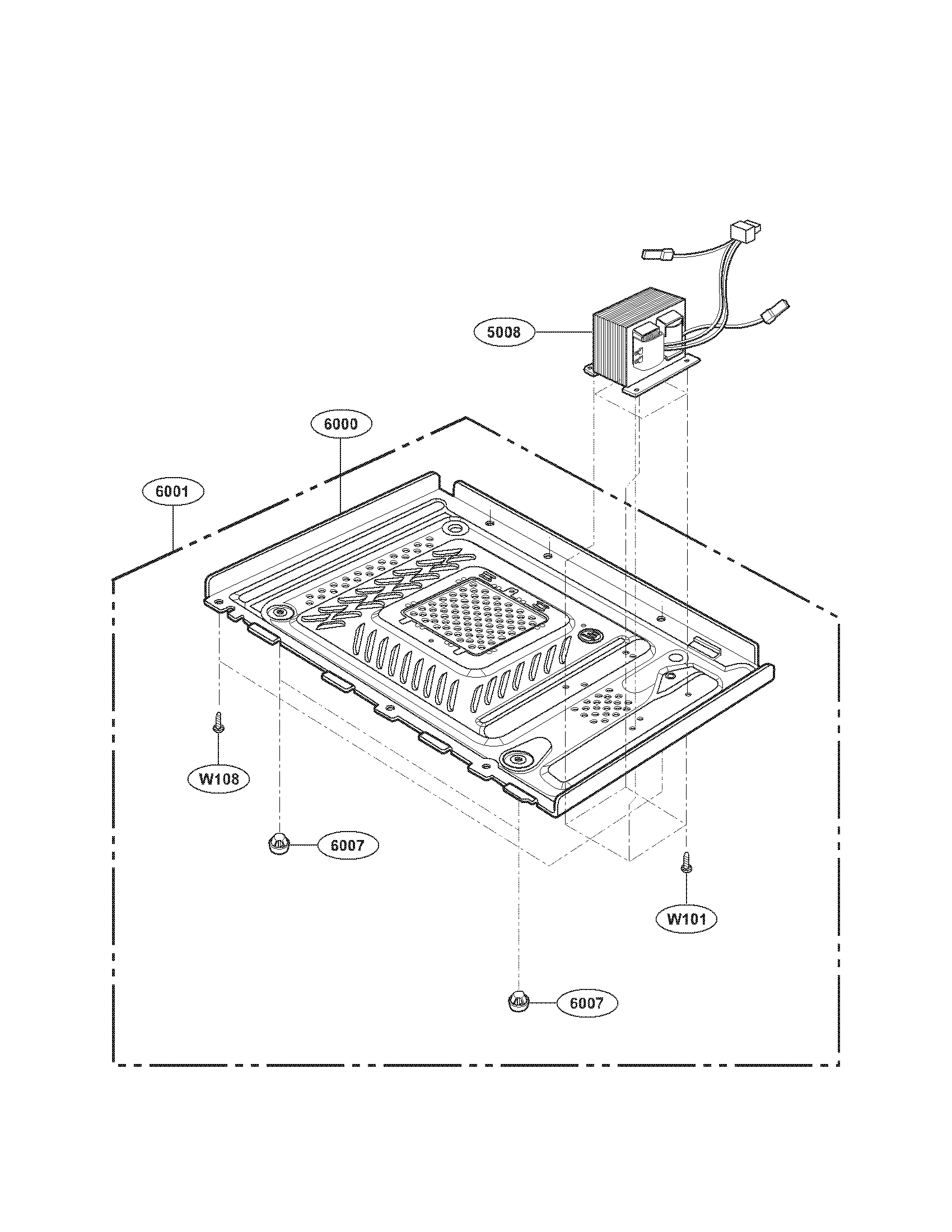

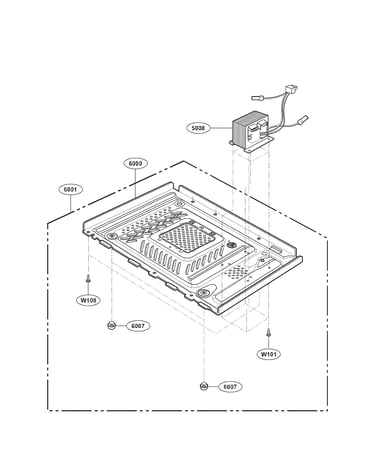

Base plate parts diagram

Microwave screw

Part #1SBF0402418

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Screw 1TTL0402418
#W108

Base plate parts diagram

Screw

Part #1TTL0402418

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 1TTL0402418. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Lever 4510W3A012A
#4004

Latchboard parts diagram

Lever

Part #4510W3A012A

$7.89
In Stock
Microwave Light Bulb 6912W3B002K
#5015

Latchboard parts diagram

Microwave light bulb

Part #6912W3B002K

This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Seal Tape 3536W1A010A
#1002

Door parts diagram

Seal tape

Part #3536W1A010A

$7.89
In Stock
