Model # WS-73711 Official Mitsubishi television

Here are the diagrams and repair parts for Official Mitsubishi WS-73711 television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Ic-se110n 267P062050
#NI

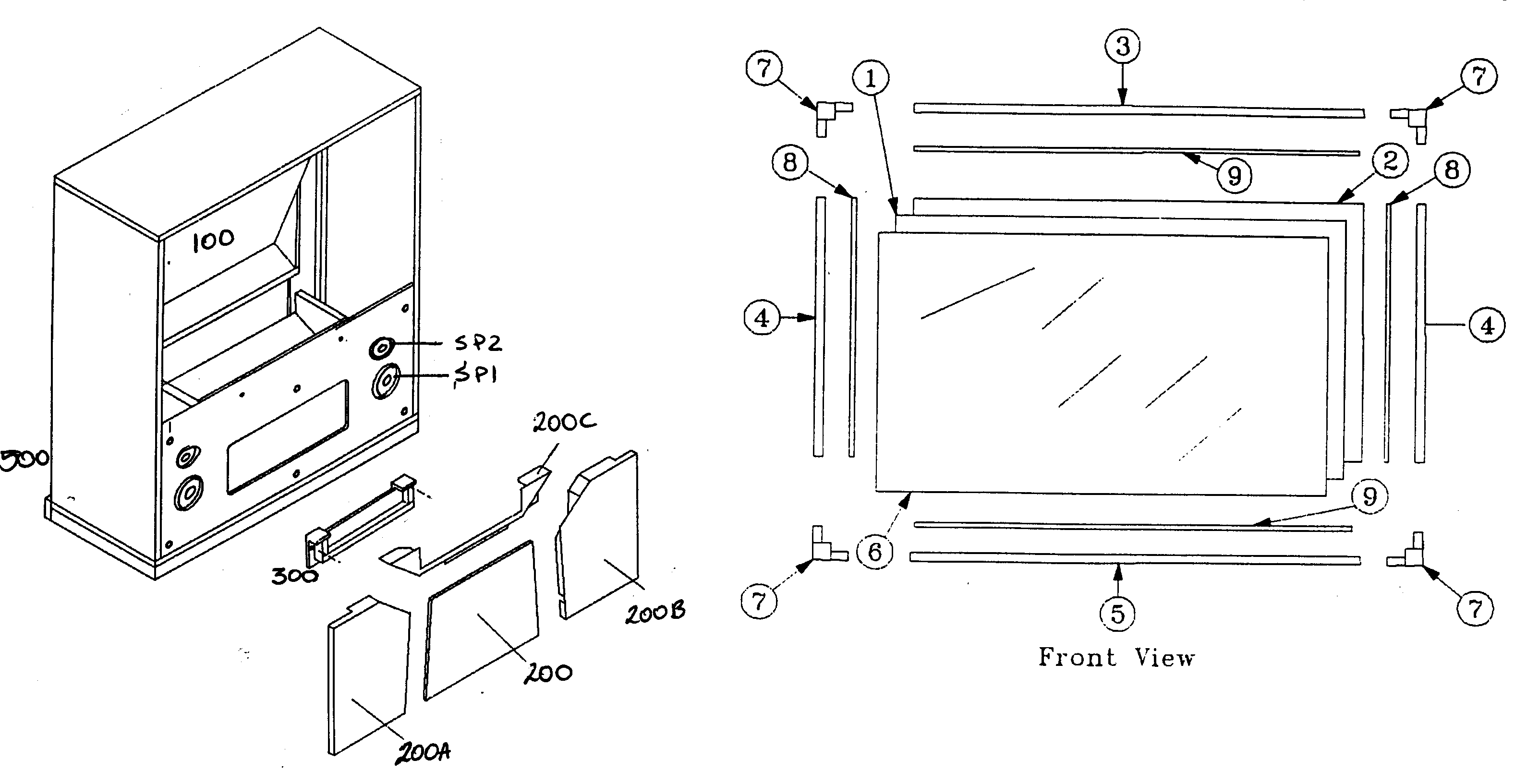

Cabinet parts diagram

Ic-se110n

Part #267P062050

The manufacturer no longer makes this part, and there's no substitute part

1m 1/2w J 109C010010
#NI

Cabinet parts diagram

1m 1/2w j

Part #109C010010

The manufacturer no longer makes this part, and there's no substitute part

Ic2p01,ic Njm78m09dla 270P575030
#NI

Cabinet parts diagram

Ic2p01,ic njm78m09dla

Part #270P575030

The manufacturer no longer makes this part, and there's no substitute part

Ic7a00,ic M306vome-178fp 275P770040
#NI

Cabinet parts diagram

Ic7a00,ic m306vome-178fp

Part #275P770040

The manufacturer no longer makes this part, and there's no substitute part

Grille Speaker Top 752A003030
#200

Cabinet parts diagram

Grille speaker top

Part #752A003030

The manufacturer no longer makes this part, and there's no substitute part

Cap Anode B And G, Ws73905 453B035040
#NI

Cabinet parts diagram

Cap anode b and g, ws73905

Part #453B035040

The manufacturer no longer makes this part, and there's no substitute part

Grille 73" Lt, Ws73907 761A186010
#200A

Cabinet parts diagram

Grille 73" lt, ws73907

Part #761A186010

The manufacturer no longer makes this part, and there's no substitute part

Cap Corner 768C065010
#7

Cabinet parts diagram

Cap corner

Part #768C065010

The manufacturer no longer makes this part, and there's no substitute part

Cap Anode Red, Ws73905 453B035030
#NI

Cabinet parts diagram

Cap anode red, ws73905

Part #453B035030

The manufacturer no longer makes this part, and there's no substitute part

Grille 73" Rt, Ws73907 761A186020
#200B

Cabinet parts diagram

Grille 73" rt, ws73907

Part #761A186020

The manufacturer no longer makes this part, and there's no substitute part
