Dirt Devil
Canister Vacuum

Model # SD40000 Official Dirt Devil vacuum

Here are the diagrams and repair parts for Official Dirt Devil SD40000 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |

Wheel Univ 1KQ0110000
#5

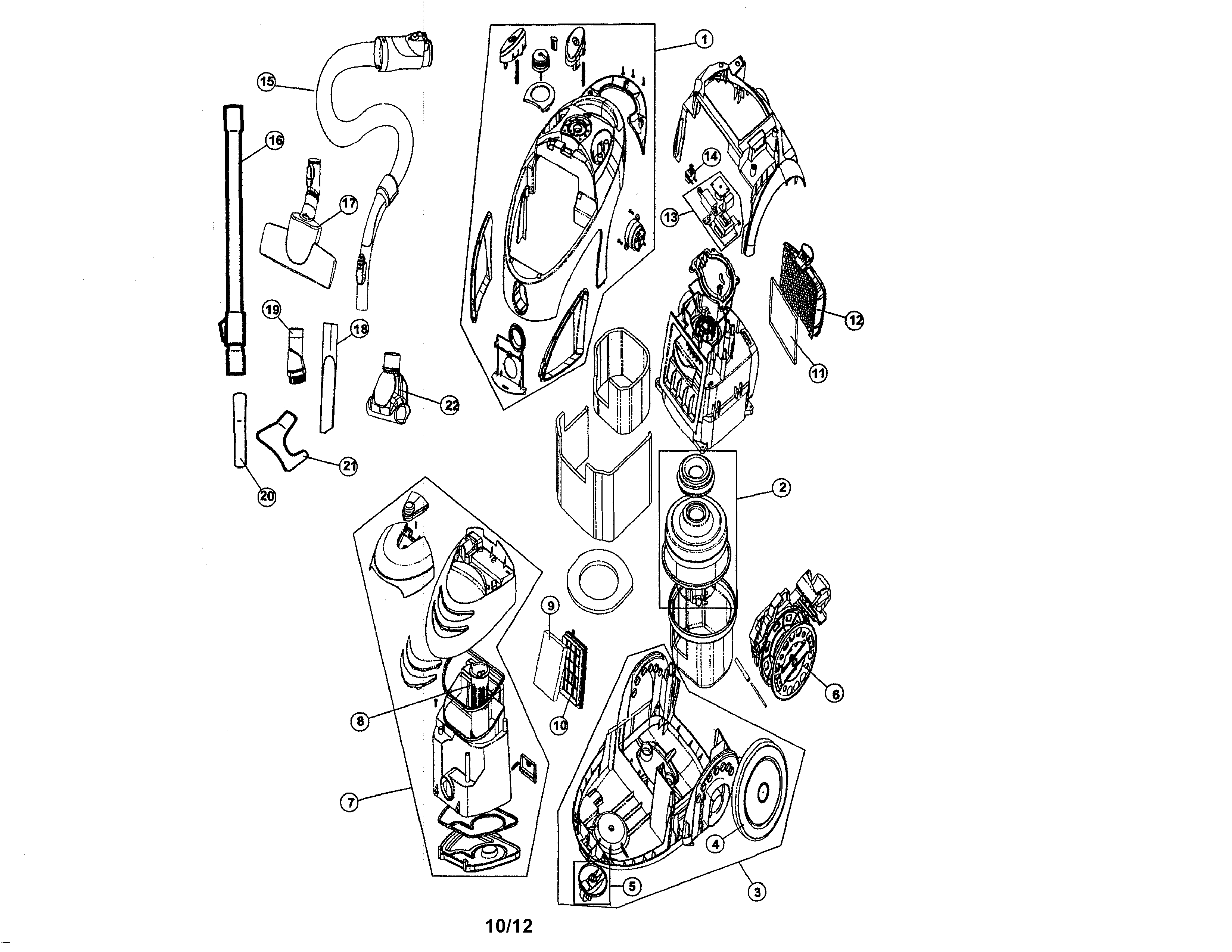

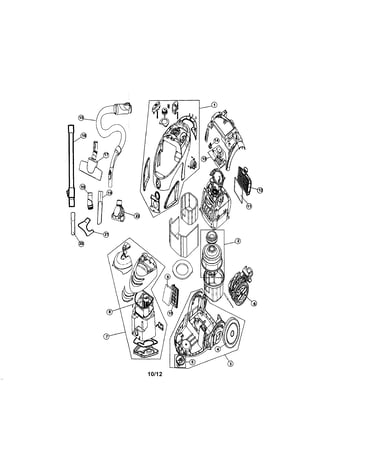

Vacuum diagram

Wheel univ

Part #1KQ0110000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Exhaust Filter Cover 1KQ0103000
#12

Vacuum diagram

Vacuum exhaust filter cover

Part #1KQ0103000

The manufacturer no longer makes this part, and there's no substitute part

Dirt Devil Adapter 1KQ0101000
#20

Vacuum diagram

Dirt devil adapter

Part #1KQ0101000

The manufacturer no longer makes this part, and there's no substitute part

Dirt Devil Cover 2KQ0100000
#1

Vacuum diagram

Dirt devil cover

Part #2KQ0100000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 1RY1255000
#14

Vacuum diagram

Vacuum on/off switch

Part #1RY1255000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 2KQ0107000
#10

Vacuum diagram

Vacuum filter

Part #2KQ0107000

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel 1KQ0109000
#4

Vacuum diagram

Rear wheel

Part #1KQ0109000

The manufacturer no longer makes this part, and there's no substitute part

Foam Exhau 2KQ0104000
#11

Vacuum diagram

Foam exhau

Part #2KQ0104000

The manufacturer no longer makes this part, and there's no substitute part

Telescoping Wand 1KQ0115000
#16

Vacuum diagram

Telescoping wand

Part #1KQ0115000

The manufacturer no longer makes this part, and there's no substitute part

Filter 1KQ0106000
#9

Vacuum diagram

Filter

Part #1KQ0106000

The manufacturer no longer makes this part, and there's no substitute part
