Model # AXN18W1G2 Official GE air conditioner

Here are the diagrams and repair parts for Official GE AXN18W1G2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Clamp WJ3X284
#181

Chassis diagram

Clamp

Part #WJ3X284

This item is not returnable
$3.99
In Stock
Spacer WJ1X610
#370

Chassis diagram

Spacer

Part #WJ1X610

This item is not returnable
$2.29
In Stock
Spring Gr WJ2X258
#400B

Chassis diagram

Spring gr

Part #WJ2X258

$17.49
In Stock
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Thermostat WJ28X500
#35

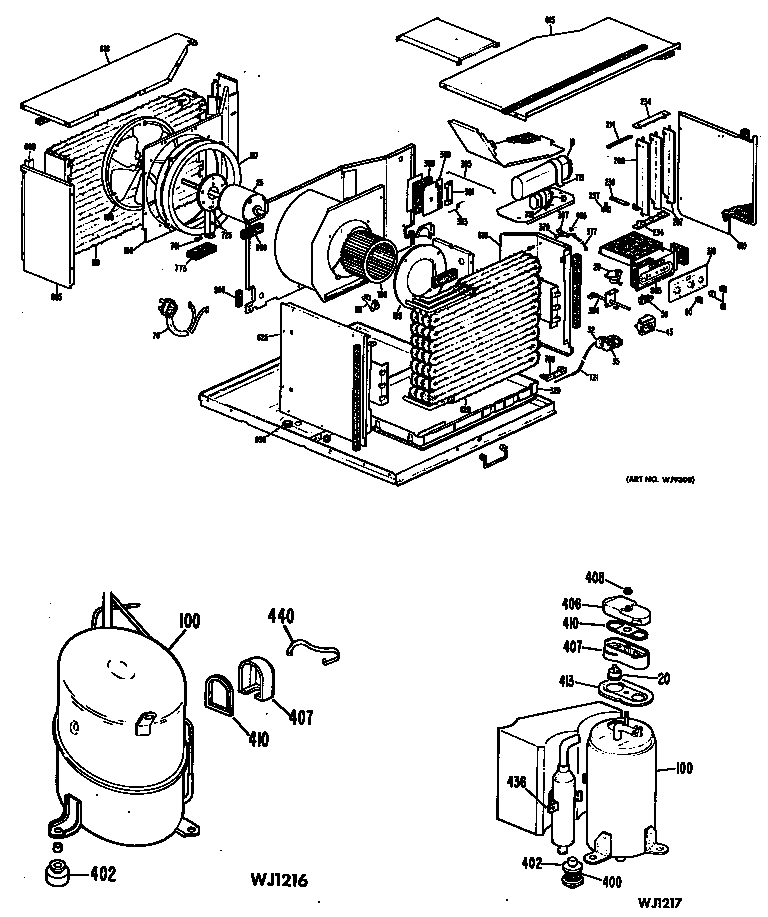

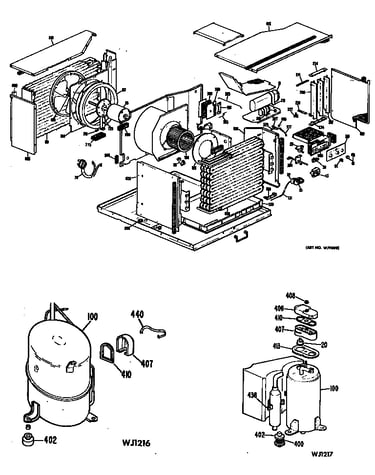

Chassis diagram

Thermostat

Part #WJ28X500

The manufacturer no longer makes this part, and there's no substitute part

Tube WJ62X220

#NI

All parts diagram

Tube

Part #WJ62X220

The manufacturer no longer makes this part, and there's no substitute part

Sealer WJ84X29

#NI

All parts diagram

Sealer

Part #WJ84X29

The manufacturer no longer makes this part, and there's no substitute part

Cable Tie WJ2X416

#NI

All parts diagram

Cable tie

Part #WJ2X416

The manufacturer no longer makes this part, and there's no substitute part

Clamp WJ2X407
#361

Chassis diagram

Clamp

Part #WJ2X407

The manufacturer no longer makes this part, and there's no substitute part

Horizontal Louver W Tab WJ71X990
#208

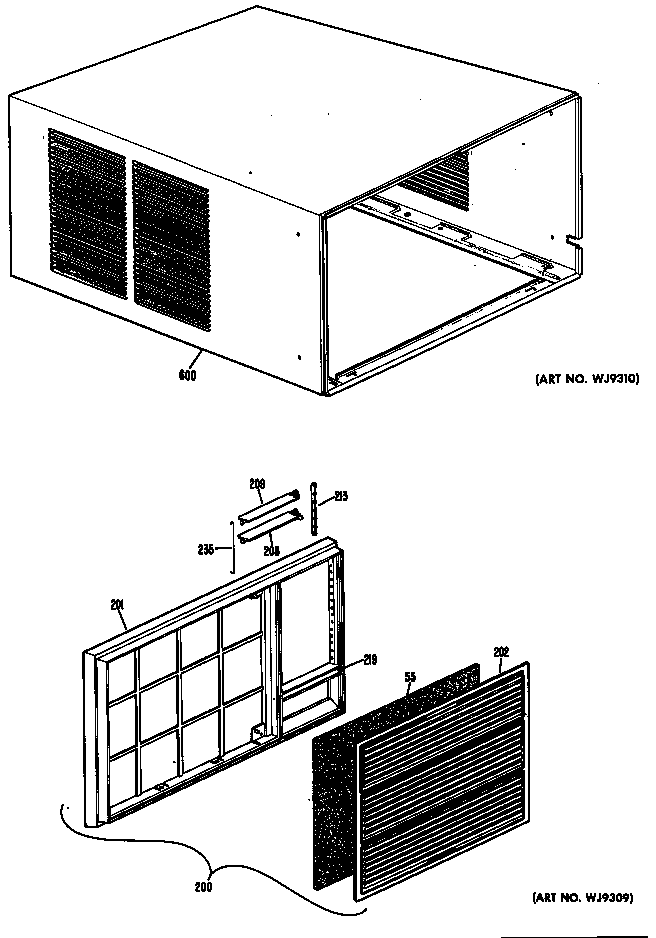

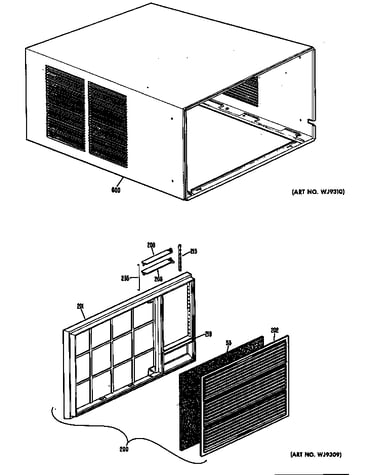

Cabinet/grille diagram

Horizontal louver w tab

Part #WJ71X990

The manufacturer no longer makes this part, and there's no substitute part
