DeWalt
Power Drill

Model # DW988K2TY1 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW988K2TY1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

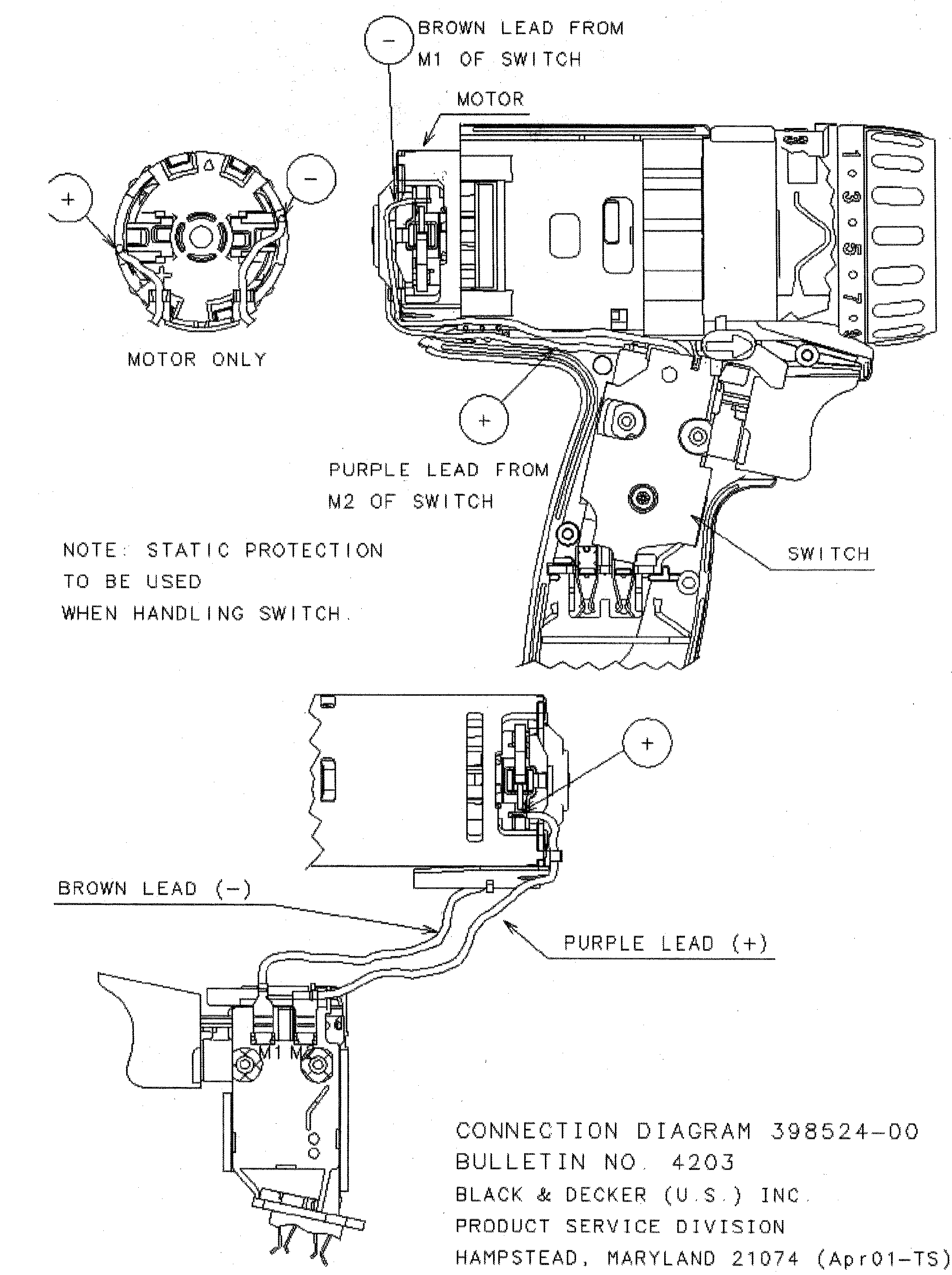

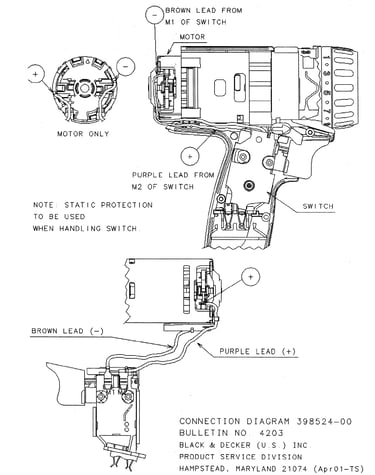

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Guide 603529-00
#19

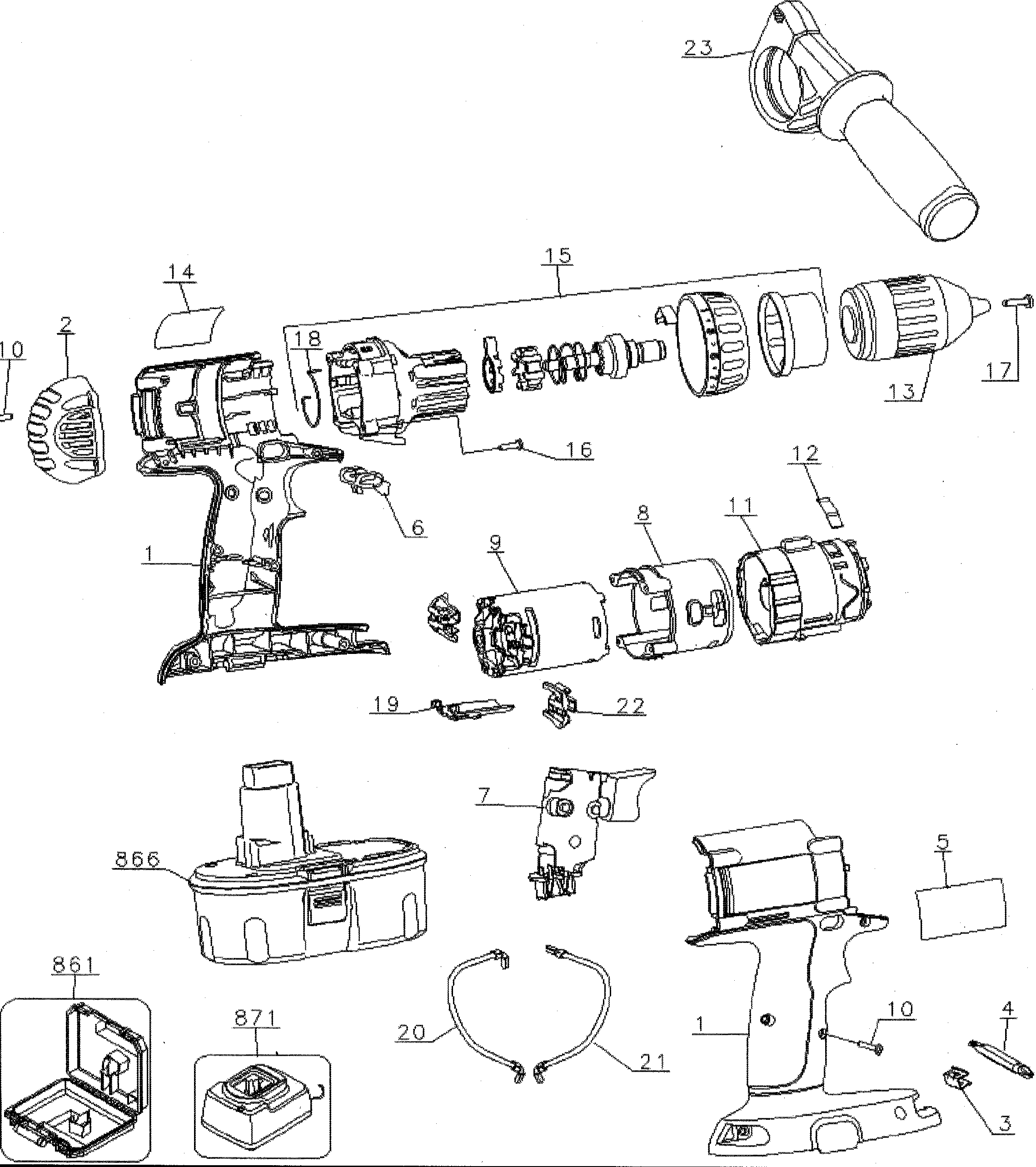

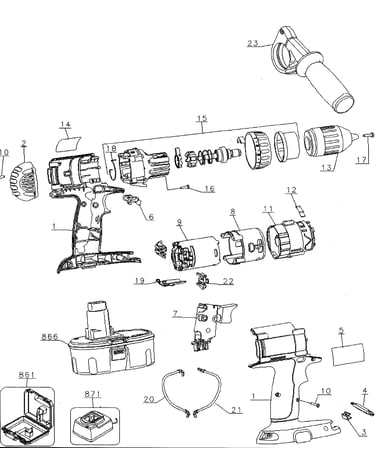

Drill diagram

Guide

Part #603529-00

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 398978-00
#20

Drill diagram

Lead wire

Part #398978-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Bit Holder 148354-03
#3

Drill diagram

Drill bit holder

Part #148354-03

The manufacturer no longer makes this part, and there's no substitute part

Drill Motor Brush 603754-01
#22

Drill diagram

Drill motor brush

Part #603754-01

The manufacturer no longer makes this part, and there's no substitute part

Spring 399059-00
#18

Drill diagram

Spring

Part #399059-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Side Handle 939794-00
#23

Drill diagram

Drill side handle

Part #939794-00

The manufacturer no longer makes this part, and there's no substitute part

Id Label 395657-00
#14

Drill diagram

Id label

Part #395657-00

The manufacturer no longer makes this part, and there's no substitute part

Motor Pinion 396505-03
#9

Drill diagram

Motor pinion

Part #396505-03

The manufacturer no longer makes this part, and there's no substitute part

Battery DW9096
#866

Drill diagram

Battery

Part #DW9096

The manufacturer no longer makes this part, and there's no substitute part

Switch 152274-09
#7

Drill diagram

Switch

Part #152274-09

The manufacturer no longer makes this part, and there's no substitute part
