Model # S3233--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3233- canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

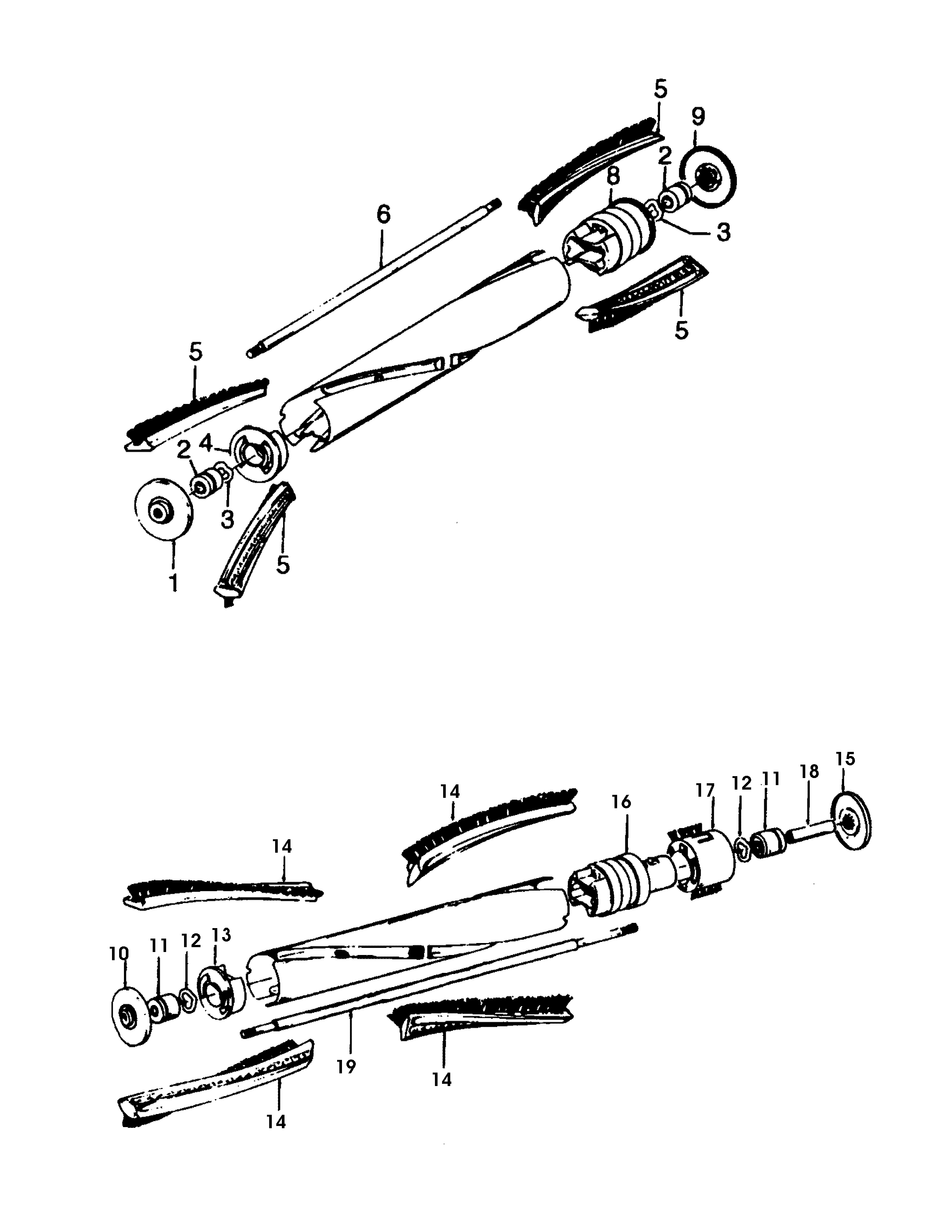

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Screw 21429406
#2

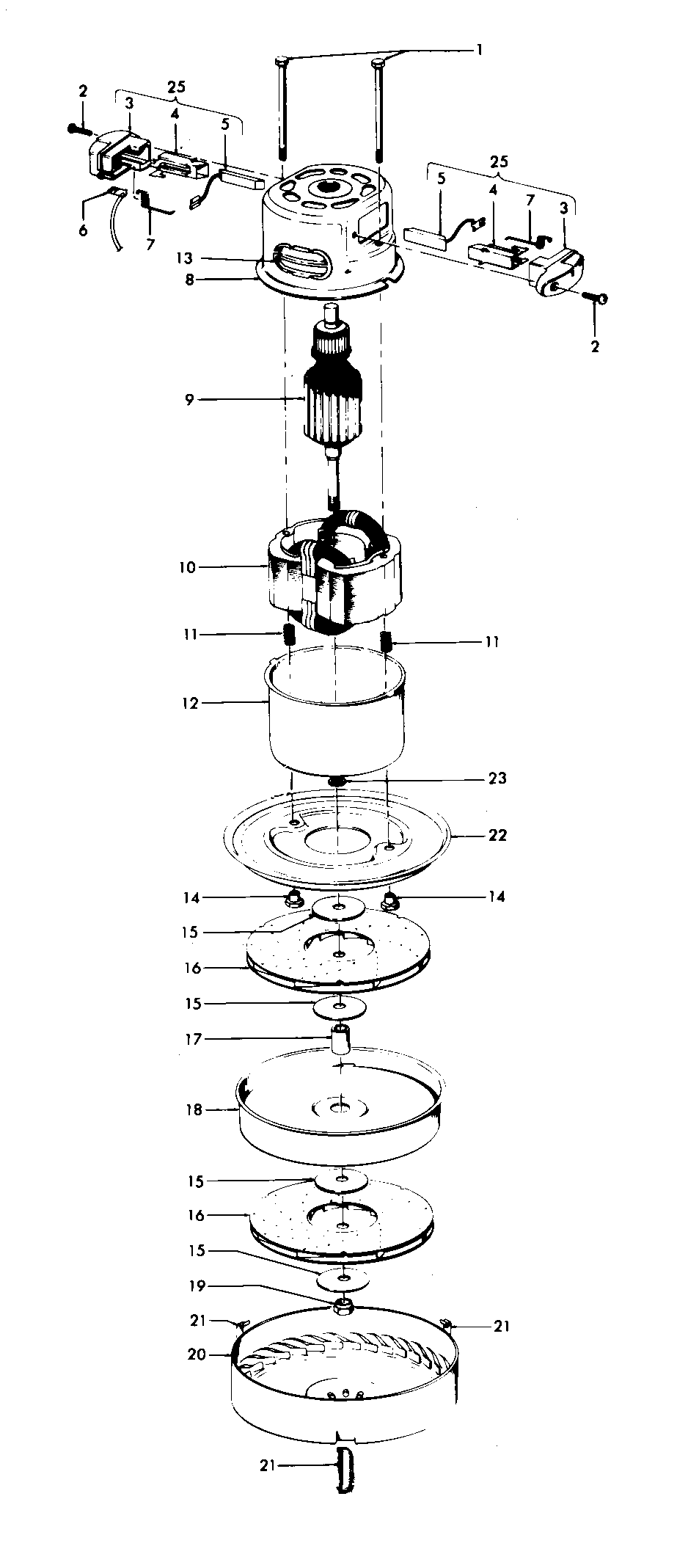

Motor assembly diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

Spring 38353004
#7

Motor assembly diagram

Spring

Part #38353004

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter, 1-pack 31114008
#24

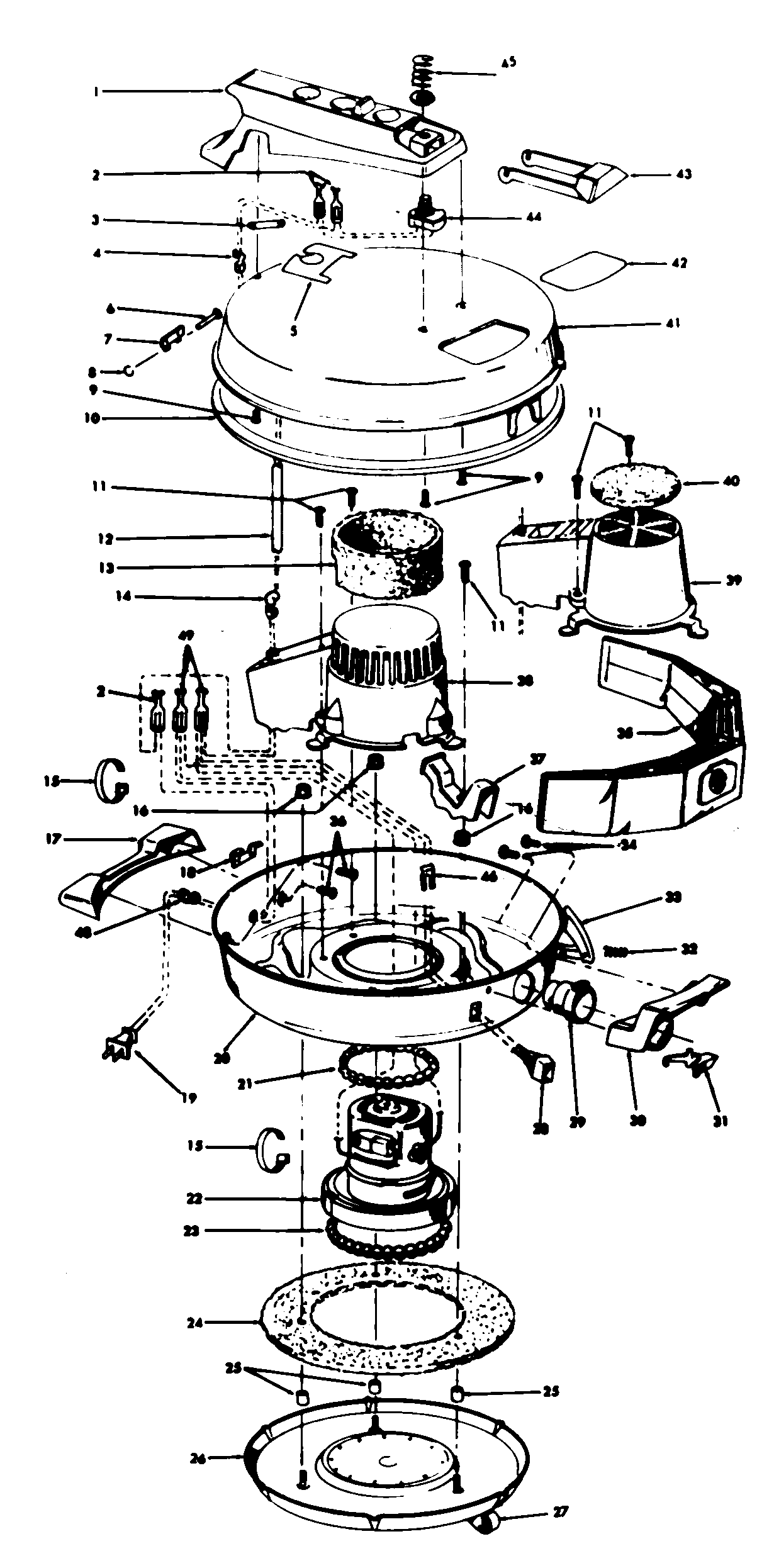

Mainhousing diagram

Vacuum filter, 1-pack

Part #31114008

The manufacturer no longer makes this part, and there's no substitute part

Retainer 36131017
#35

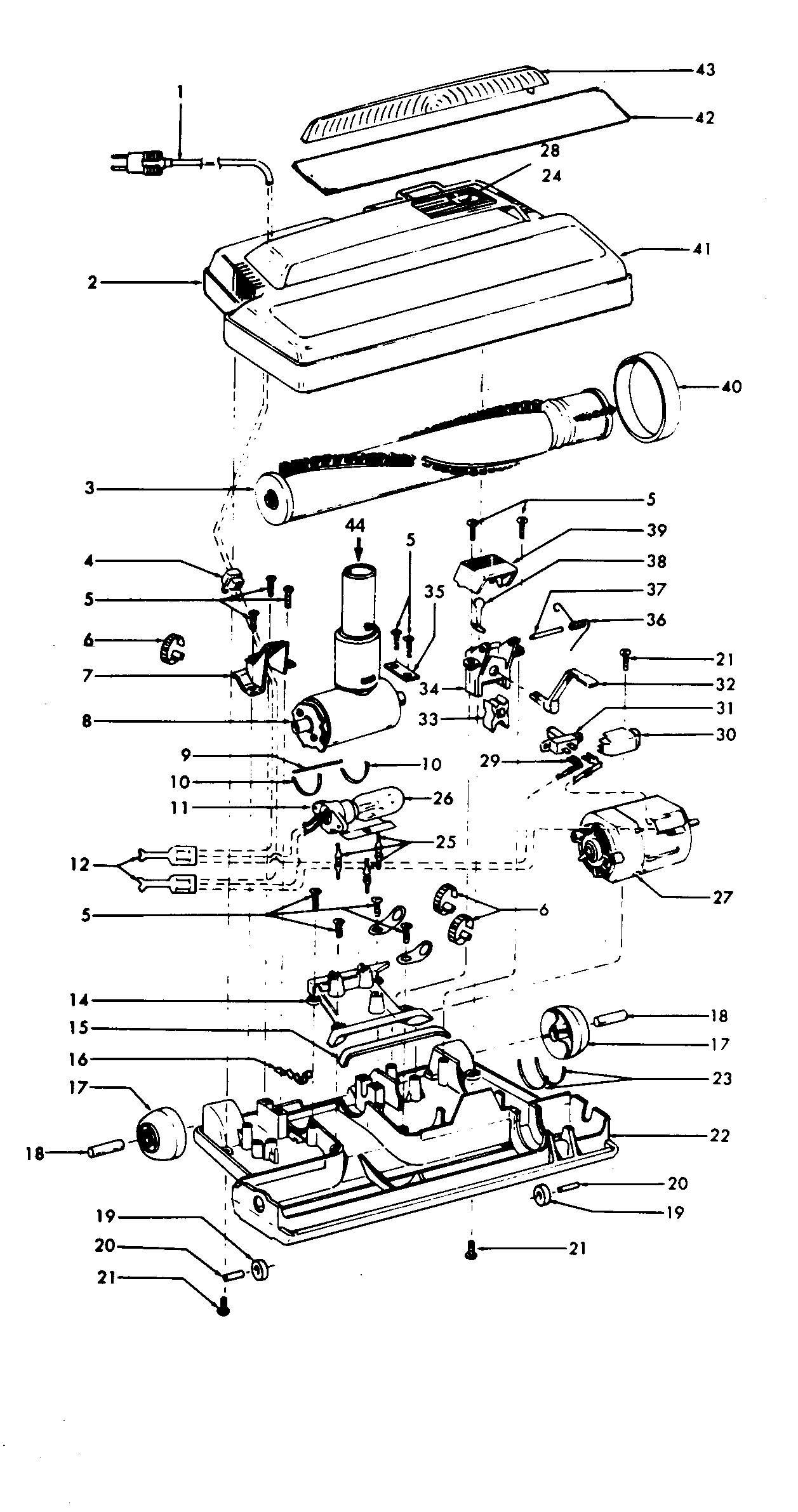

Powerednozzle diagram

Retainer

Part #36131017

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Terminal 27666702
#29

Powerednozzle diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Light Bulb 27317307
#26

Powerednozzle diagram

Kenmore vacuum light bulb

Part #27317307

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Depressor 38458002
#38

Powerednozzle diagram

Kenmore depressor

Part #38458002

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Beater Bar Belt 38528011
#40

Powerednozzle diagram

Kenmore vacuum beater bar belt

Part #38528011

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#6

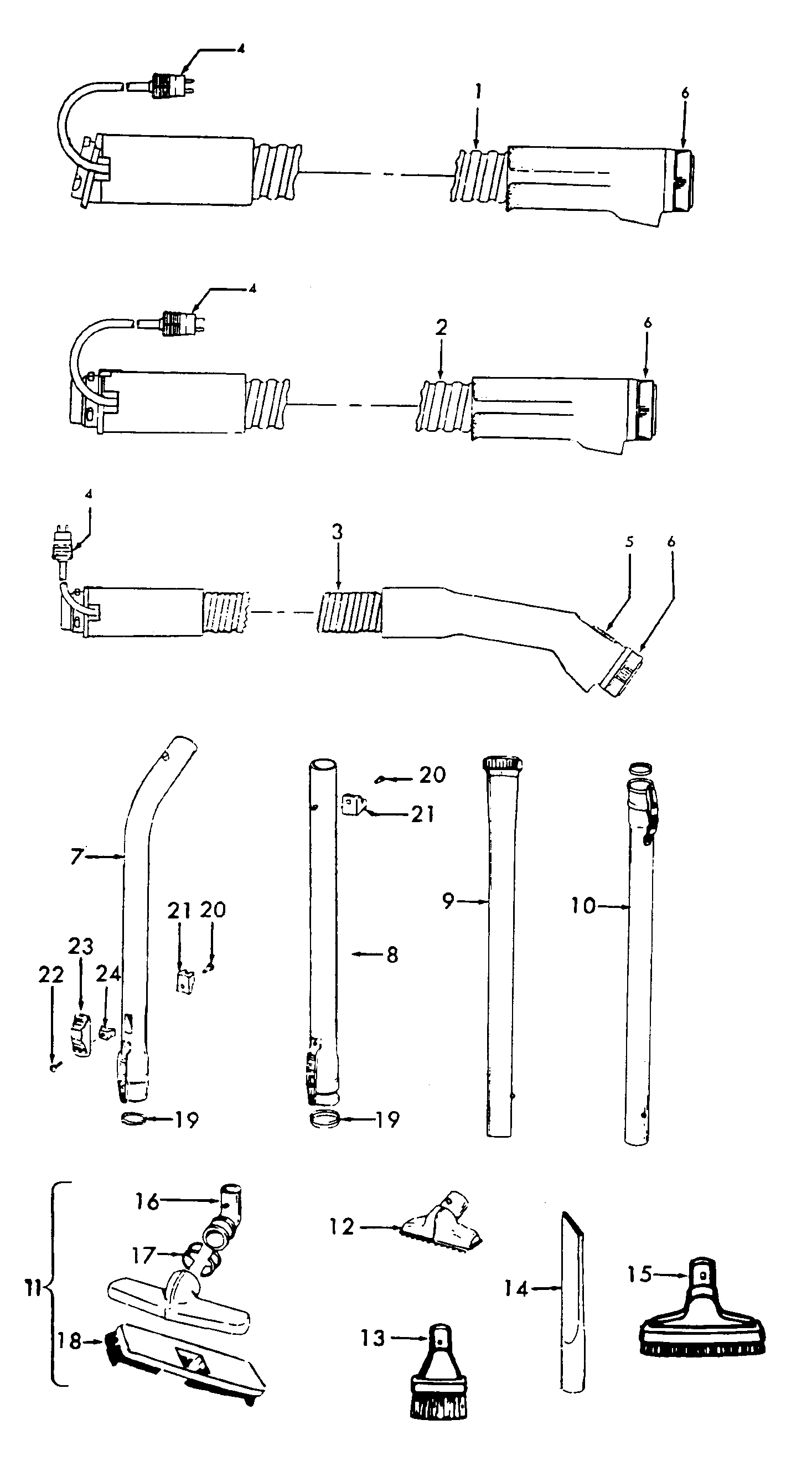

Hose, cleaningtools diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Switch Pedal 38433044
#39A

Powerednozzle diagram

Switch pedal

Part #38433044

The manufacturer no longer makes this part, and there's no substitute part
