Amana
Room Air Conditioner

Model # B9C3HES/P1152008R Official Amana room air conditioner heat pump

Here are the diagrams and repair parts for Official Amana B9C3HES-P1152008R room air conditioner heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Frame Screw M0241116
#16

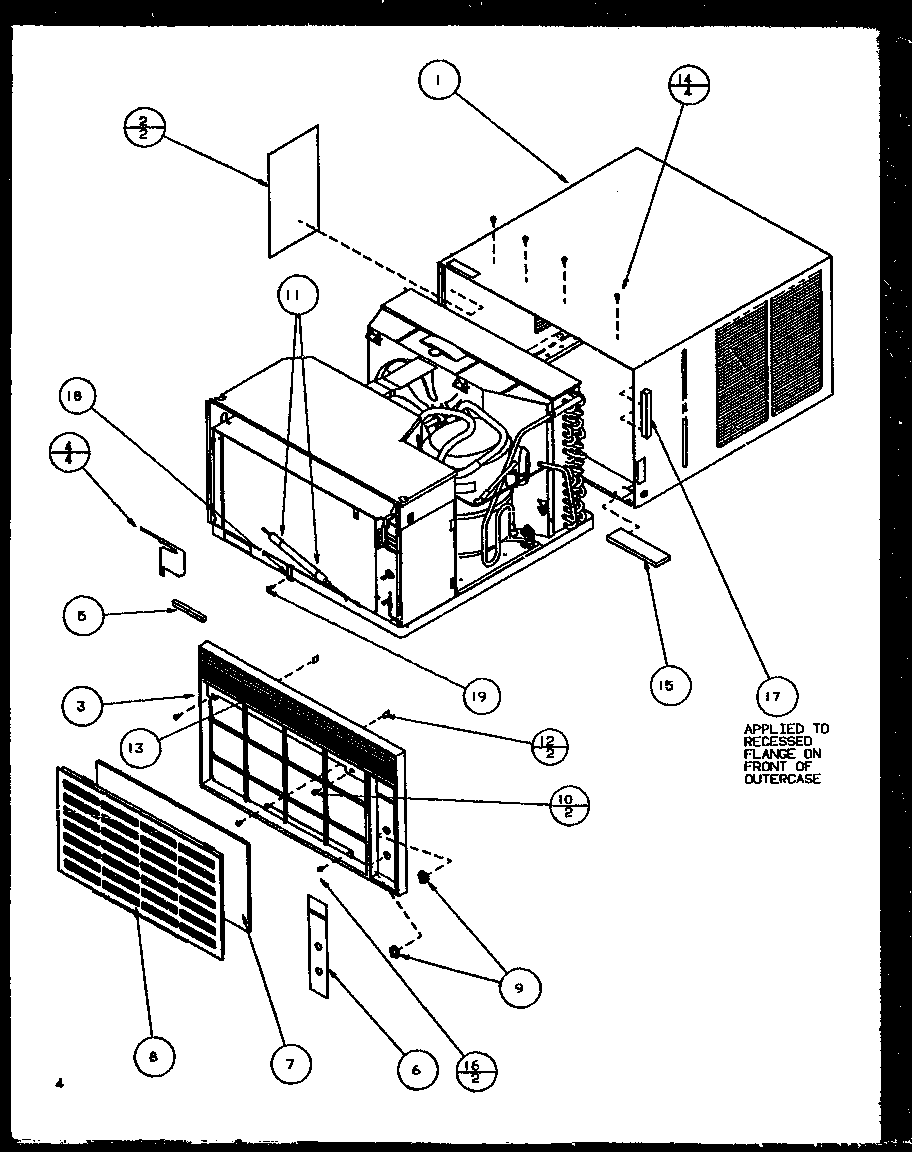

Exterior parts diagram

Frame screw

Part #M0241116

Replaced by #WP693995

?
Manufacturer substitution
This part replaces M0241116. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0211017
#29

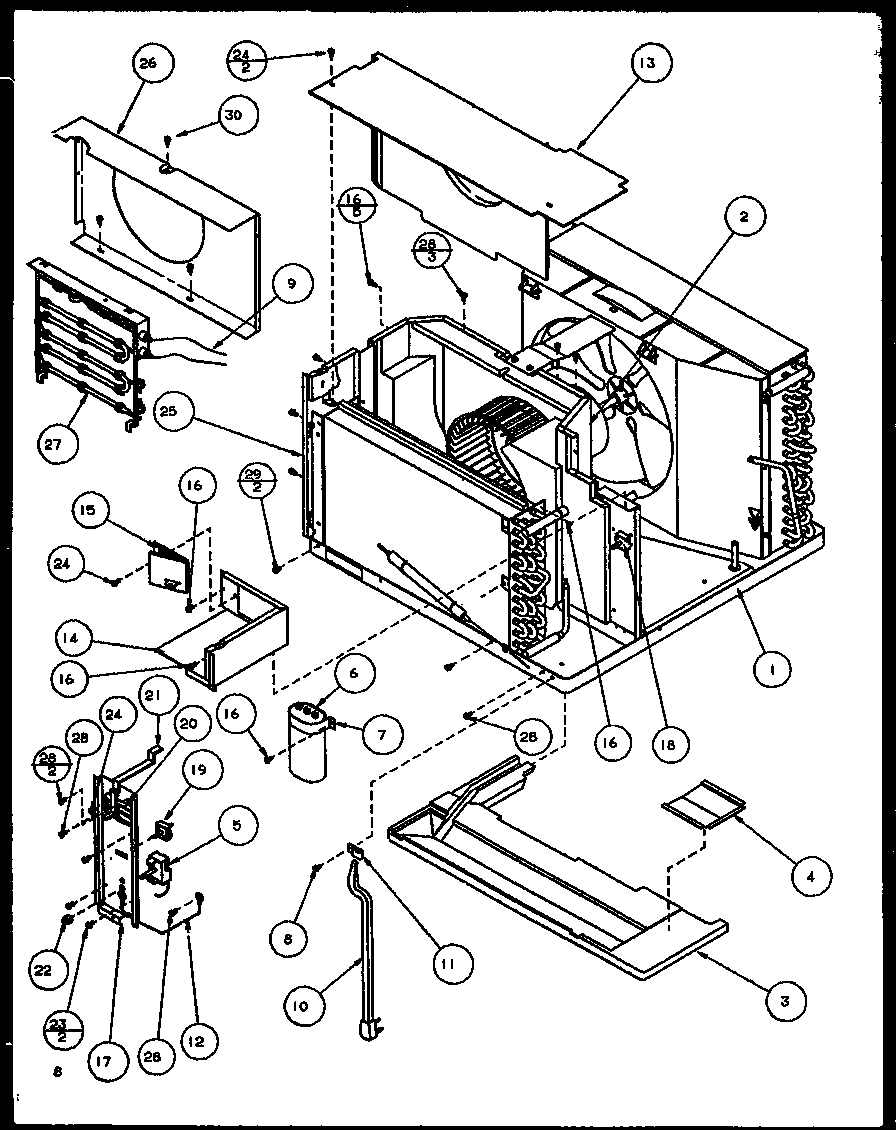

Interior parts diagram

Screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Tie M0321202
#19

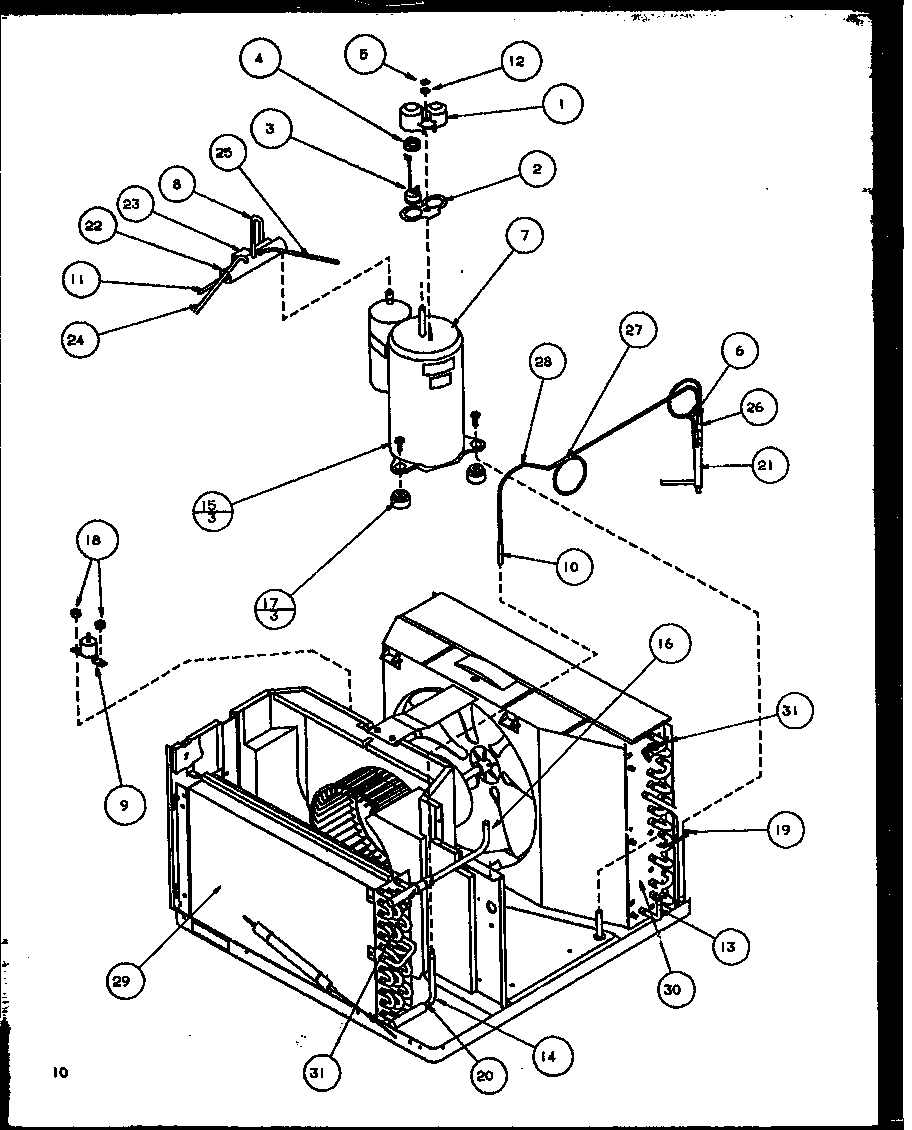

Compressor diagram

Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Terminal Nut A3436601
#5

Compressor diagram

Terminal nut

Part #A3436601

Replaced by #WP776338

?
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
$11.34
In Stock
Screw M0211018
#20

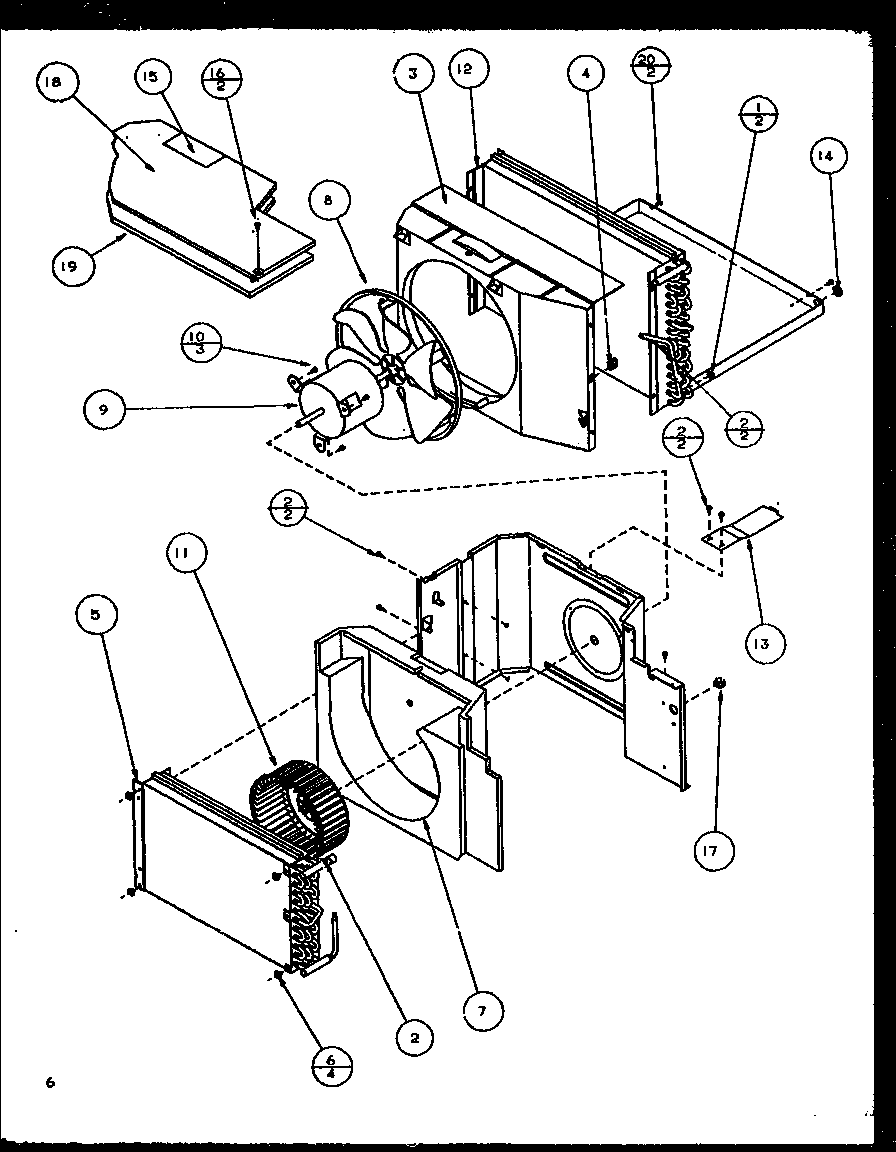

Evaporator and fan parts diagram

Screw

Part #M0211018

Replaced by #M0211018

?
Manufacturer substitution
This part replaces M0211018. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Control C6397701
#21

Interior parts diagram

Control

Part #C6397701

Replaced by #C6397701

?
Manufacturer substitution
This part replaces C6397701. Substitute parts can look different from the original.
$11.96
In Stock
Screw M0245116
#24

Interior parts diagram

Screw

Part #M0245116

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces M0245116. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0241118
#10

Exterior parts diagram

Screw

Part #M0241118

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0241118. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Grommet M0282015
#18

Compressor diagram

Grommet

Part #M0282015

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282015. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Thermostat C6424201
#5

Interior parts diagram

Thermostat

Part #C6424201

The manufacturer no longer makes this part, and there's no substitute part
