White-Westinghouse
Room Air Conditioner

Model # WAB077F7B1 Official White-Westinghouse room air conditioner - 5995295325

Here are the diagrams and repair parts for Official White-Westinghouse WAB077F7B1 room air conditioner - 5995295325, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

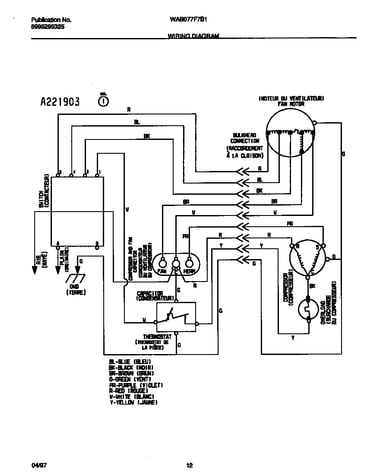

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

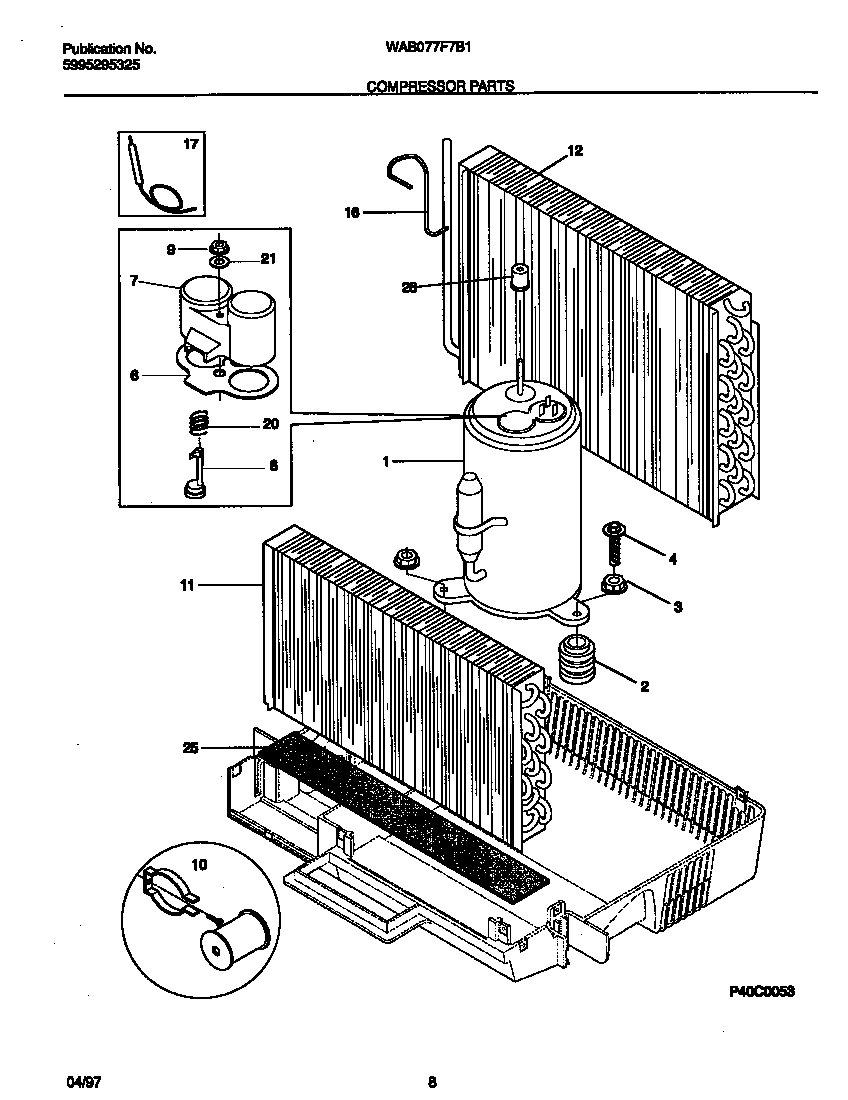

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Overload 5303270037
#8

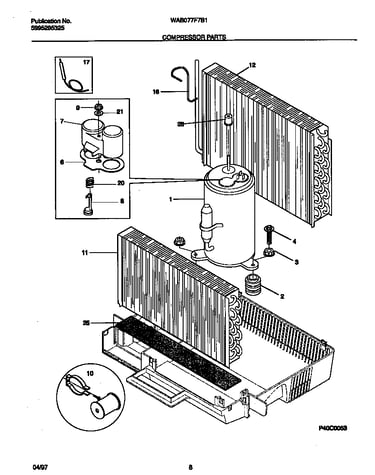

Compressor parts diagram

Overload

Part #5303270037

$12.19
In Stock
Westinghouse Screw-wrapper 5303293767
#39

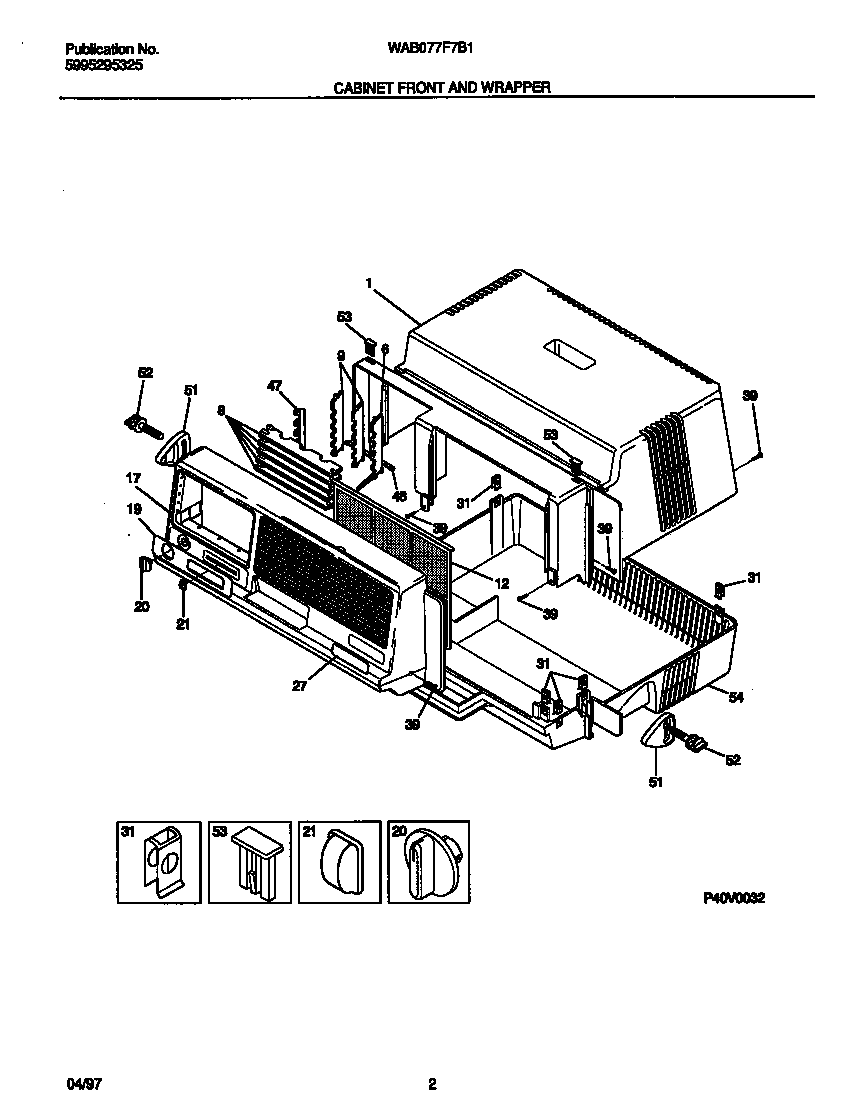

Cabinet front and wrapper diagram

Westinghouse screw-wrapper

Part #5303293767

This item is not returnable
$5.80
In Stock
Capacitor 5303295749
#13

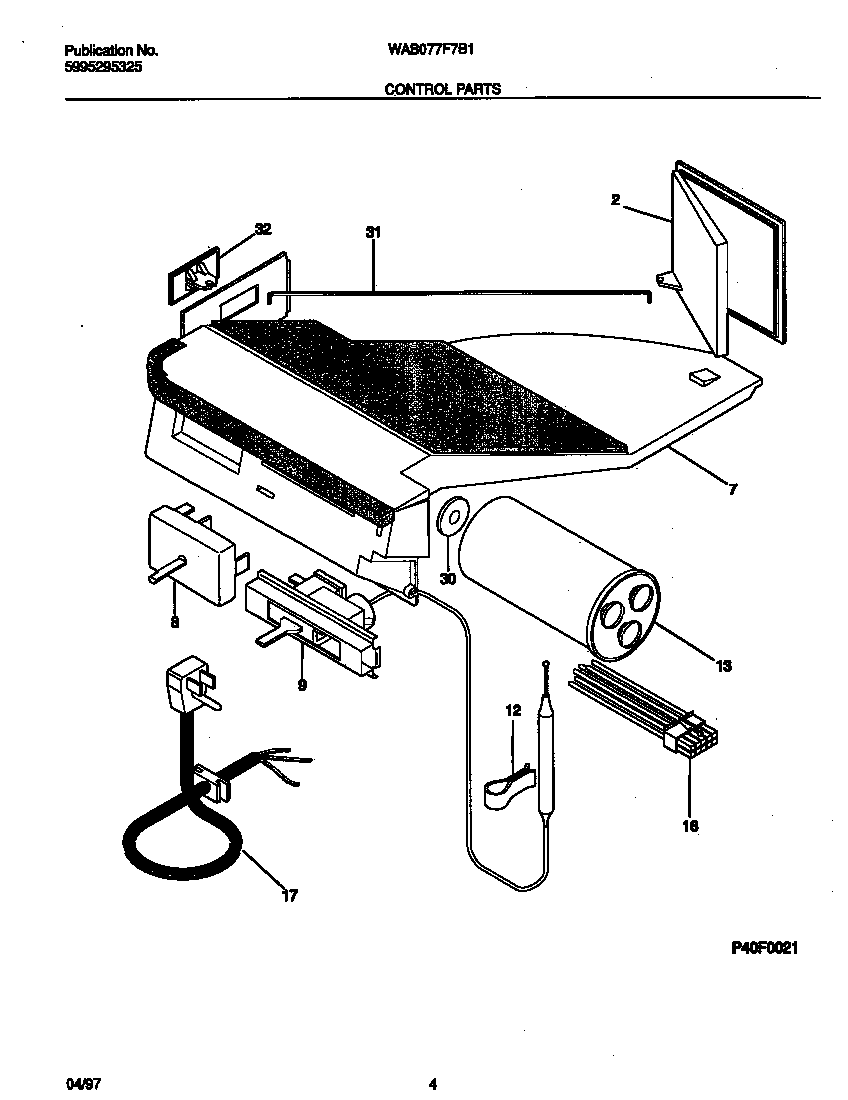

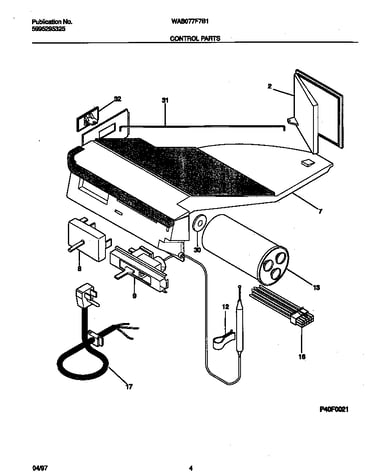

Control parts diagram

Capacitor

Part #5303295749

$122.96
In Stock
Screw 3202975
#2

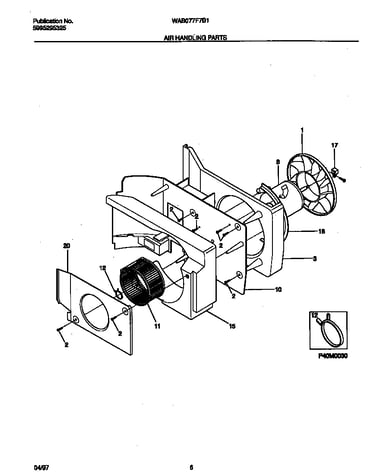

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Gasket 3002603
#1

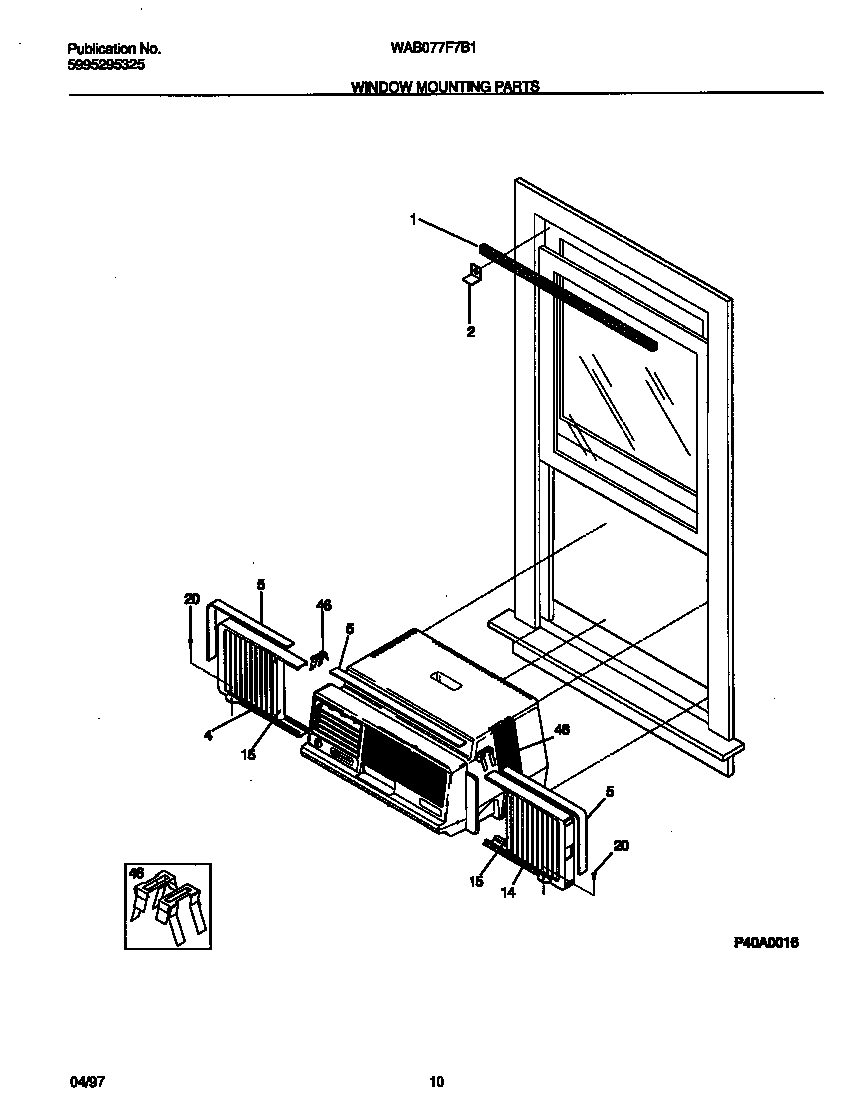

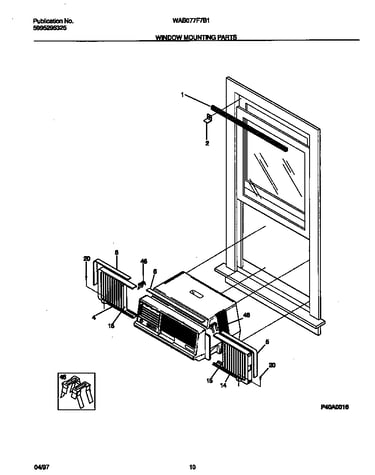

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Room Air Conditioner Window Stop Bracket 5303211056
#2

Window mounting parts diagram

Room air conditioner window stop bracket

Part #5303211056

The manufacturer no longer makes this part, and there's no substitute part

Wrapper Kit 5303321503
#54

Cabinet front and wrapper diagram

Wrapper kit

Part #5303321503

The manufacturer no longer makes this part, and there's no substitute part

Actuator 5303285452
#32

Control parts diagram

Actuator

Part #5303285452

The manufacturer no longer makes this part, and there's no substitute part

Filter 5303285479
#12

Cabinet front and wrapper diagram

Filter

Part #5303285479

The manufacturer no longer makes this part, and there's no substitute part
