Model # NF97U110V5C01 Official GE gas furnace/heater

Here are the diagrams and repair parts for Official GE NF97U110V5C01 gas furnace/heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Lb-74940b Flame Sensor Kit (102431-02) 69W43
#210

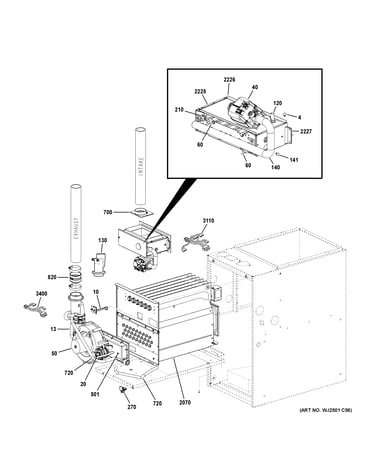

Cabinet (2) diagram

Lb-74940b flame sensor kit (102431-02)

Part #69W43

$63.98
In Stock
Gea Badge 107213-05
#9997

Cabinet (1) diagram

Gea badge

Part #107213-05

$10.74
In Stock
42j3201 Transformer 42J32
#180

Cabinet (1) diagram

42j3201 transformer

Part #42J32

$28.00
In Stock
102906-02 Orifice-lp .034 71W48
#4

Cabinet (2) diagram

102906-02 orifice-lp .034

Part #71W48

$40.64
In Stock
606007-02 3.0 Ecm 3/4 Hp Motor Only 73W02
#72

Cabinet (1) diagram

606007-02 3.0 ecm 3/4 hp motor only

Part #73W02

$353.55
In Stock
104007-01 Transformer Power Choke 10Y66
#181

Cabinet (1) diagram

104007-01 transformer power choke

Part #10Y66

$30.07
In Stock
609627-01 Kit-gas Valve Barbed Fitting 92W78
#31

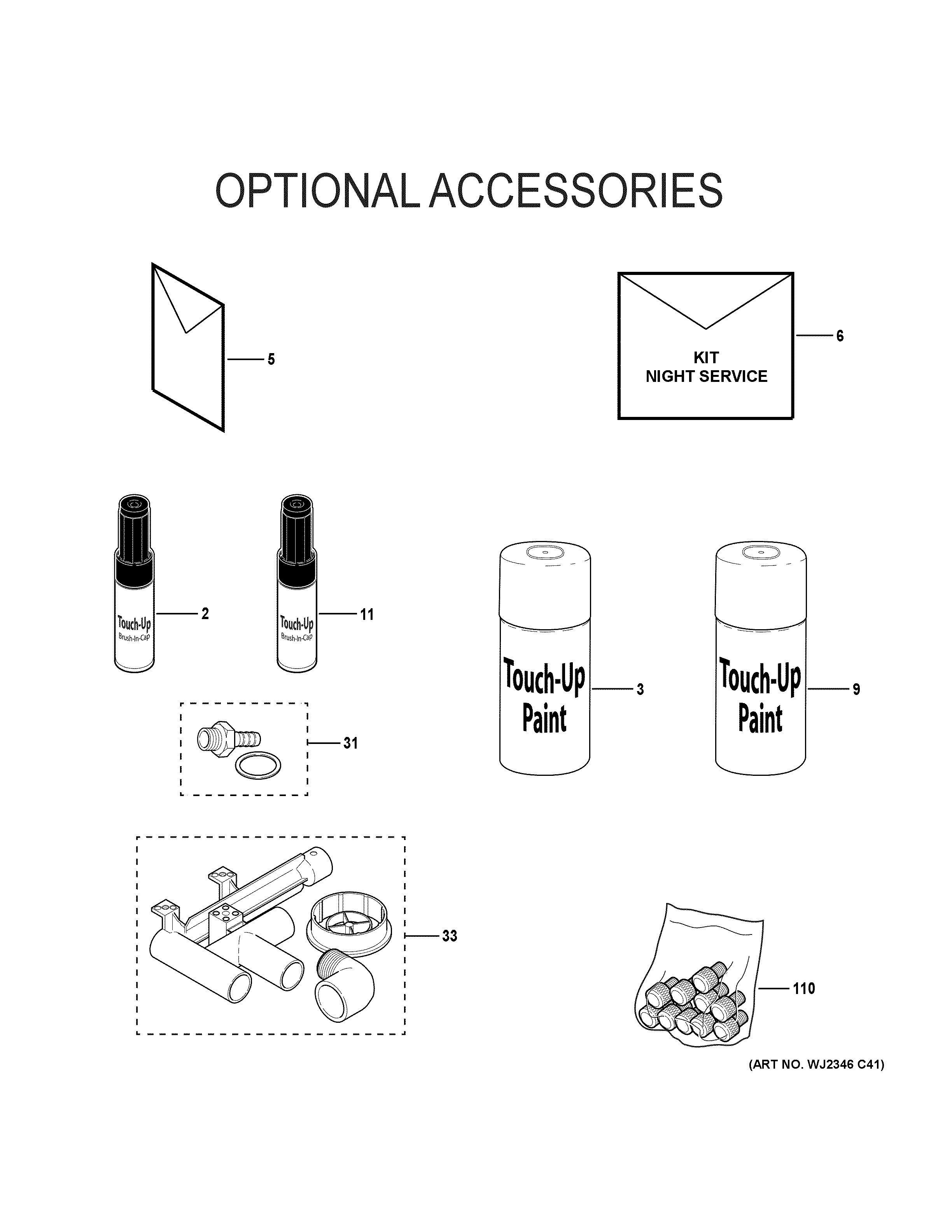

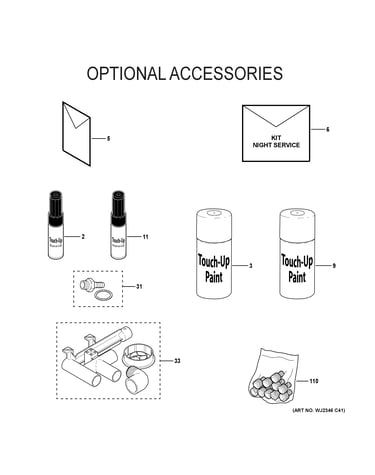

Optional accessories diagram

609627-01 kit-gas valve barbed fitting

Part #92W78

$65.18
In Stock
Lp Kit 11K48
#5

Optional accessories diagram

Lp kit

Part #11K48

$134.26
In Stock
606008-05 3.0 Ecm + Hp Module Only 84W86
#76

Cabinet (1) diagram

606008-05 3.0 ecm + hp module only

Part #84W86

$375.42
In Stock
102317-01 Switch-interlock 51W15
#270

Cabinet (2) diagram

102317-01 switch-interlock

Part #51W15

$23.97
In Stock
