Model # UH70010 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH70010 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Liner 37243072
#17

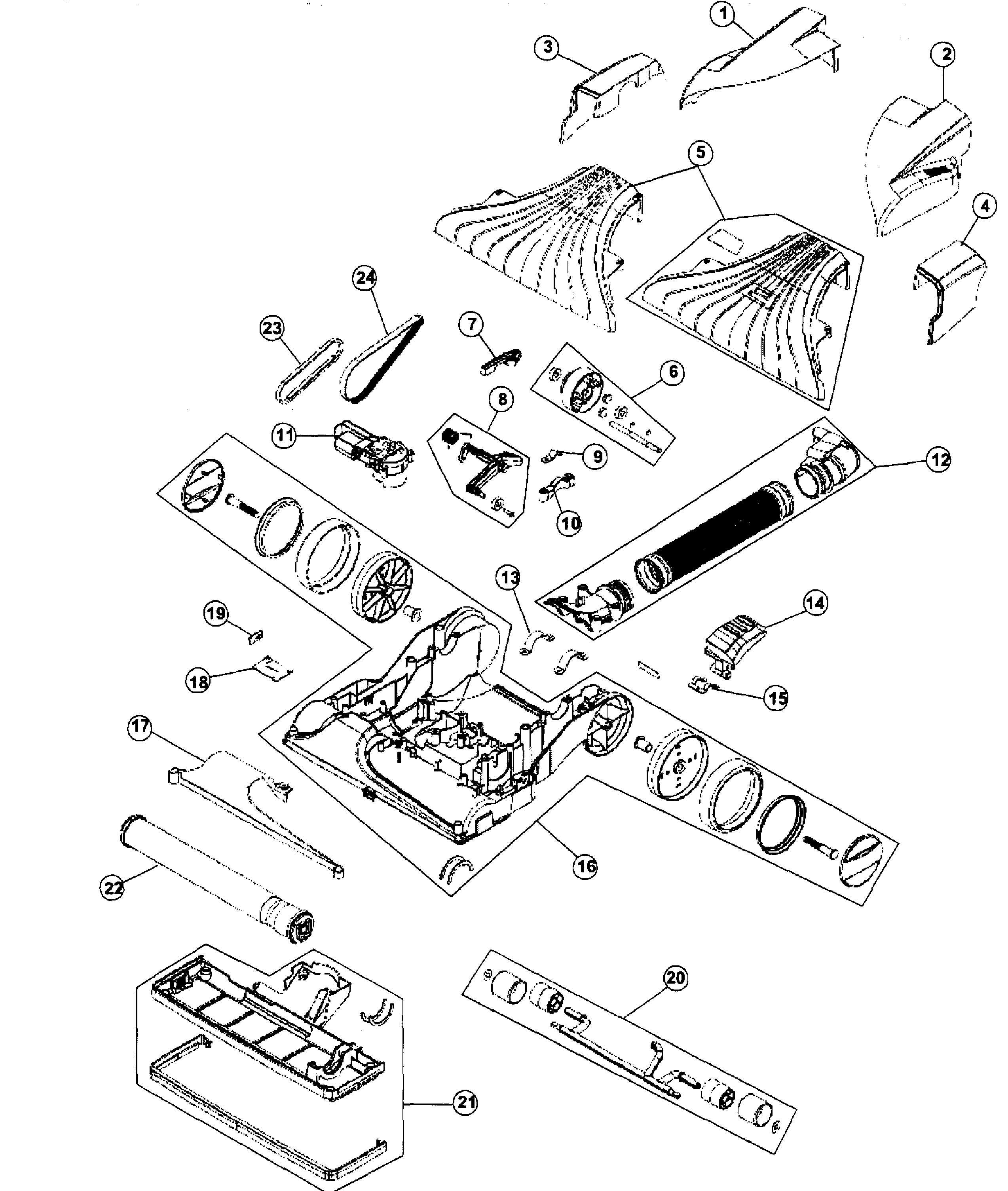

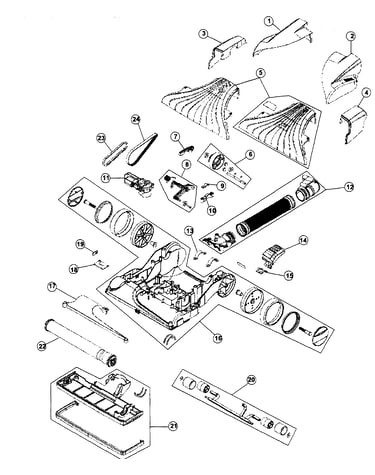

Base assy diagram

Liner

Part #37243072

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 48663249
#1

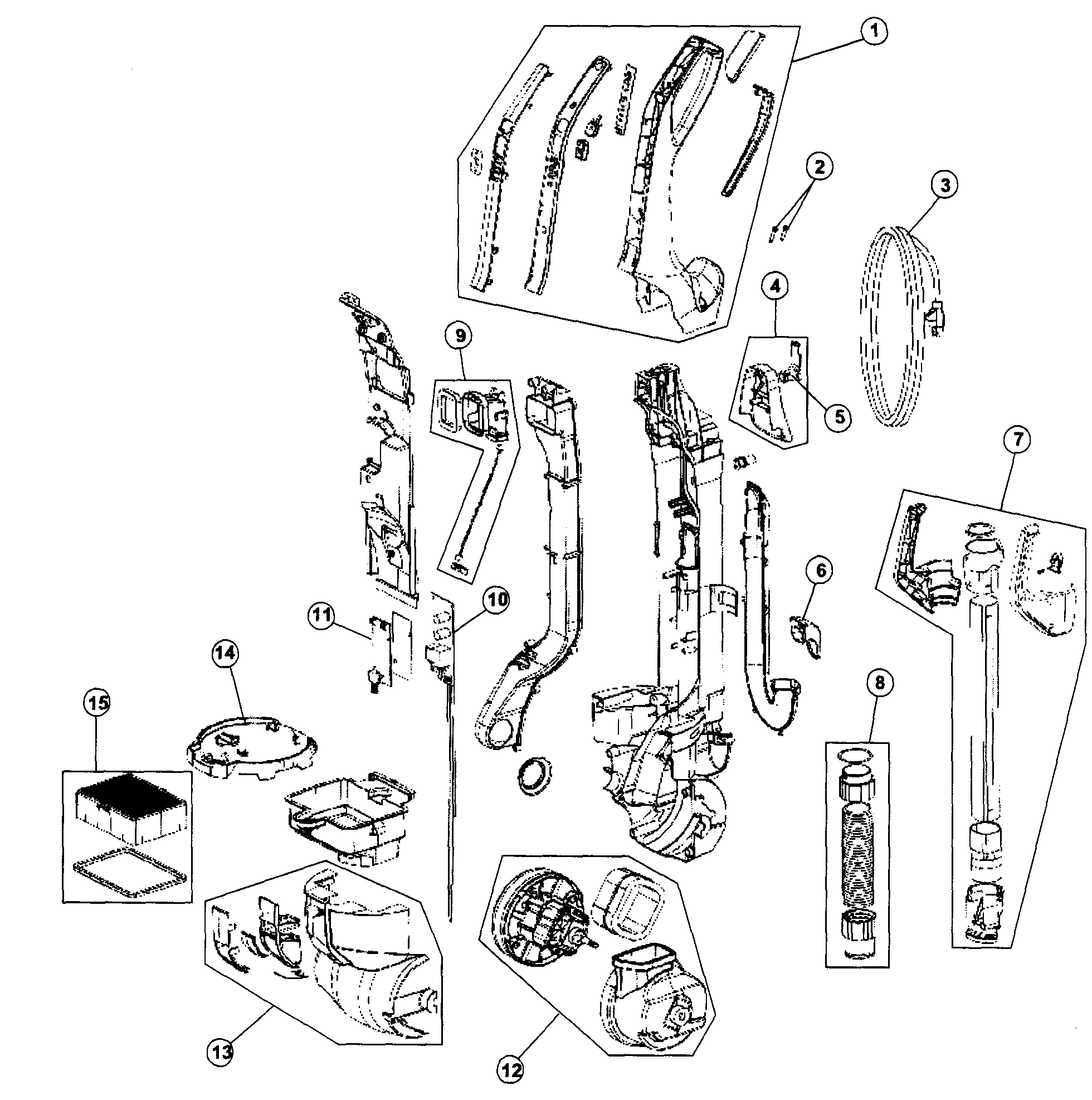

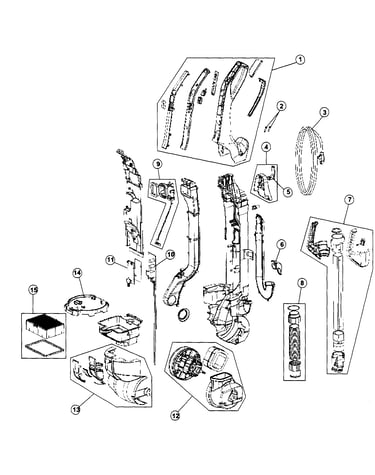

Handle assy diagram

Vacuum handle

Part #48663249

The manufacturer no longer makes this part, and there's no substitute part

Arm Clamp 36172061
#10

Base assy diagram

Arm clamp

Part #36172061

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hepa Filter 38765035
#15

Handle assy diagram

Vacuum hepa filter

Part #38765035

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 46383365
#3

Handle assy diagram

Power cord

Part #46383365

The manufacturer no longer makes this part, and there's no substitute part

Mor Cover 42191018
#13

Handle assy diagram

Mor cover

Part #42191018

The manufacturer no longer makes this part, and there's no substitute part

Pcb Hall 46851082
#19

Base assy diagram

Pcb hall

Part #46851082

The manufacturer no longer makes this part, and there's no substitute part

Hoover Hood Centr 37243073
#5

Base assy diagram

Hoover hood centr

Part #37243073

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447236
#2

Handle assy diagram

Vacuum screw

Part #21447236

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 38617035
#3

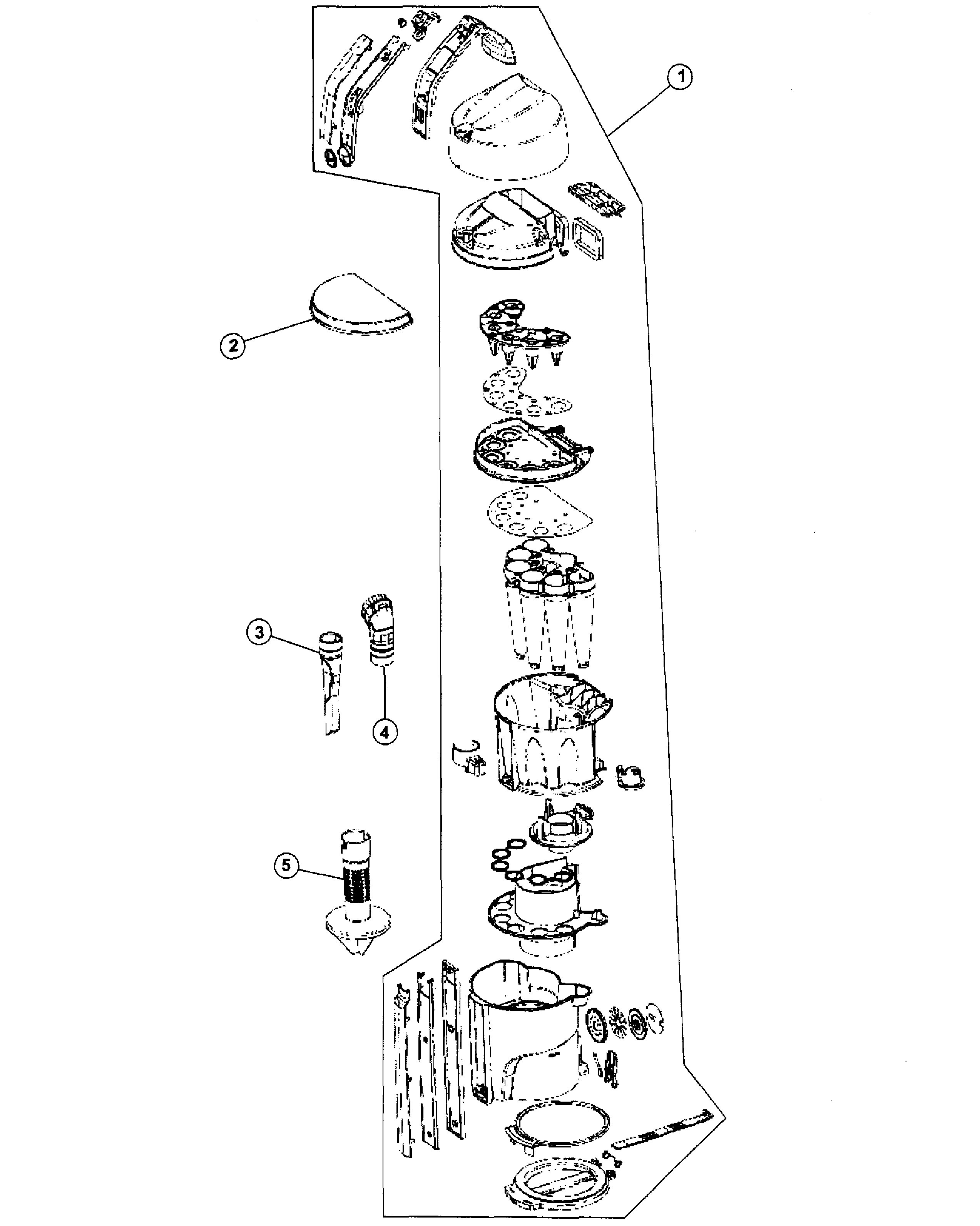

Dirt cup diagram

Vacuum crevice tool

Part #38617035

The manufacturer no longer makes this part, and there's no substitute part
