Model # C1660900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1660900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Support 36426067
#10

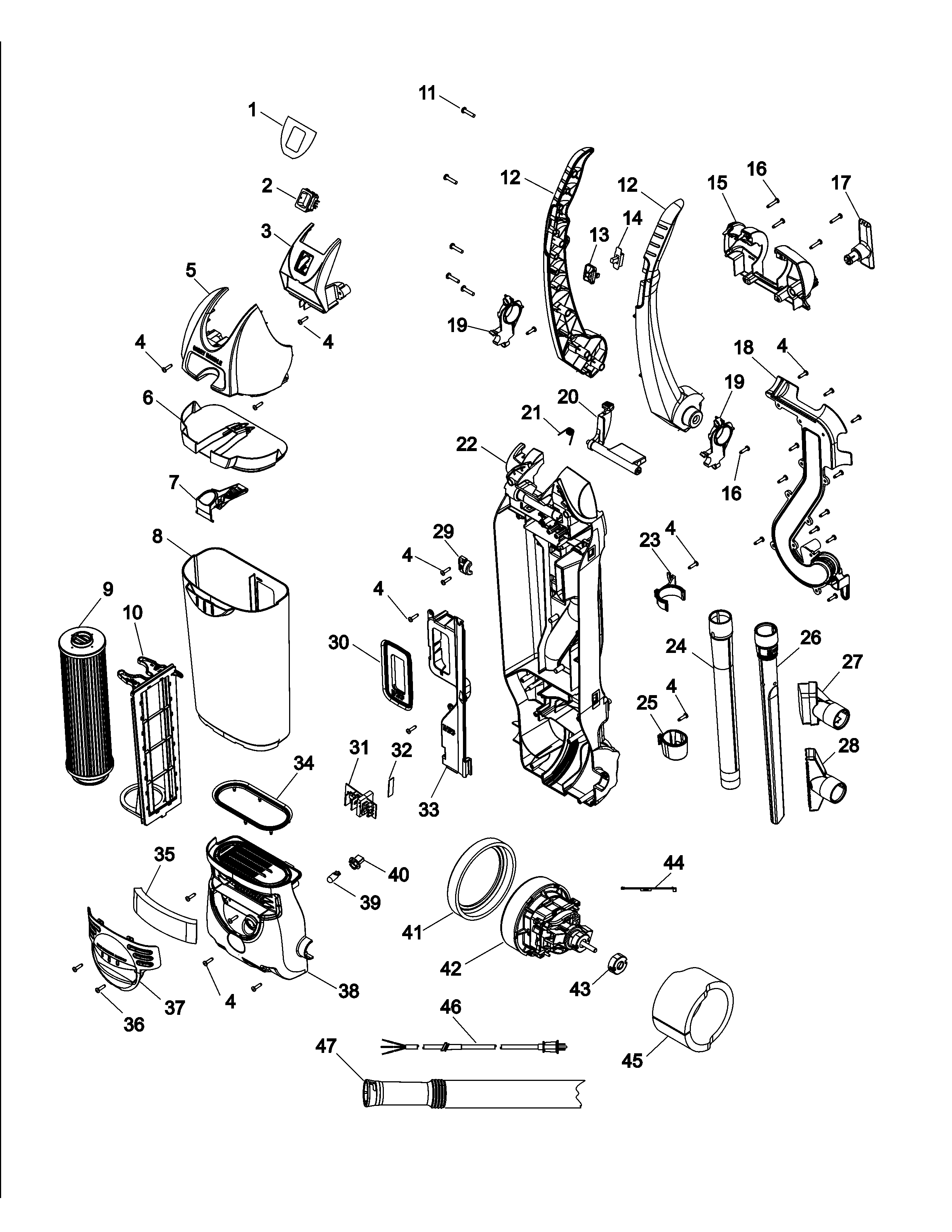

Upper assembly diagram

Support

Part #36426067

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27313107
#39

Upper assembly diagram

Vacuum light bulb

Part #27313107

The manufacturer no longer makes this part, and there's no substitute part

Trunnion 36131121
#19

Upper assembly diagram

Trunnion

Part #36131121

The manufacturer no longer makes this part, and there's no substitute part

Latch Lever 92001063
#20

Upper assembly diagram

Latch lever

Part #92001063

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Trunnion Bracket 36131118
#11

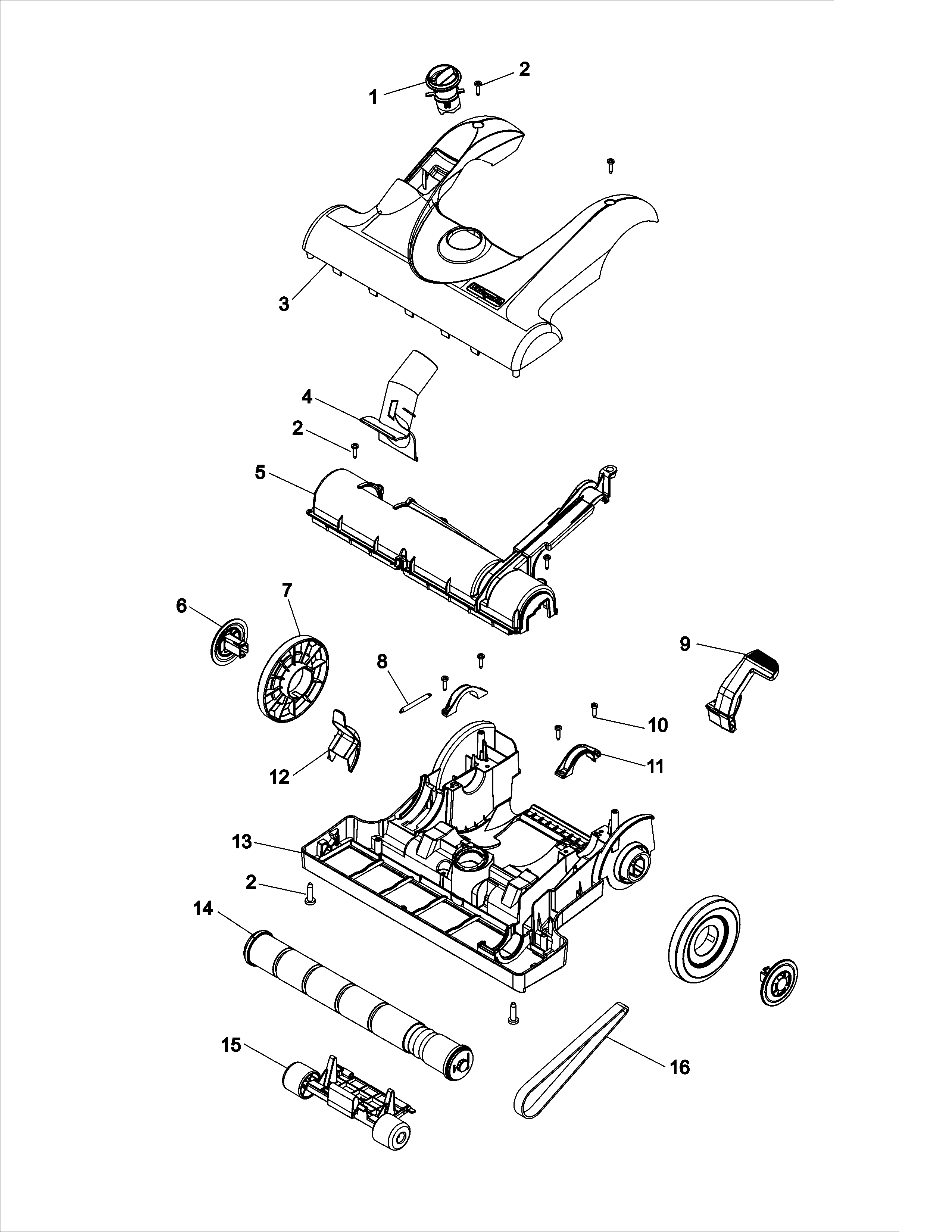

Foot diagram

Vacuum trunnion bracket

Part #36131118

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Switch 28179106
#14

Upper assembly diagram

Vacuum switch

Part #28179106

The manufacturer no longer makes this part, and there's no substitute part

Cam Gray 92001011
#1

Foot diagram

Cam gray

Part #92001011

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Switch 28166001
#2

Upper assembly diagram

Vacuum switch

Part #28166001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 43431224
#47

Upper assembly diagram

Vacuum hose

Part #43431224

The manufacturer no longer makes this part, and there's no substitute part

Spring 38335026
#8

Foot diagram

Spring

Part #38335026

The manufacturer no longer makes this part, and there's no substitute part
