Kenmore
Central Air Conditioner

Model # 2538754101 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2538754101 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

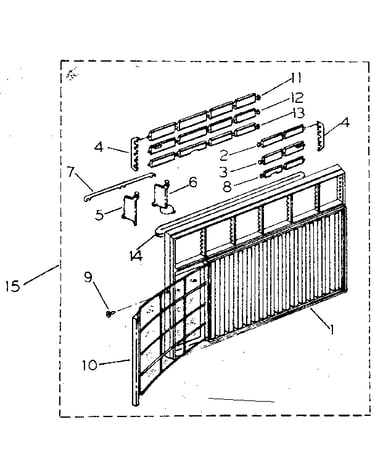

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Spacer 520762
#30

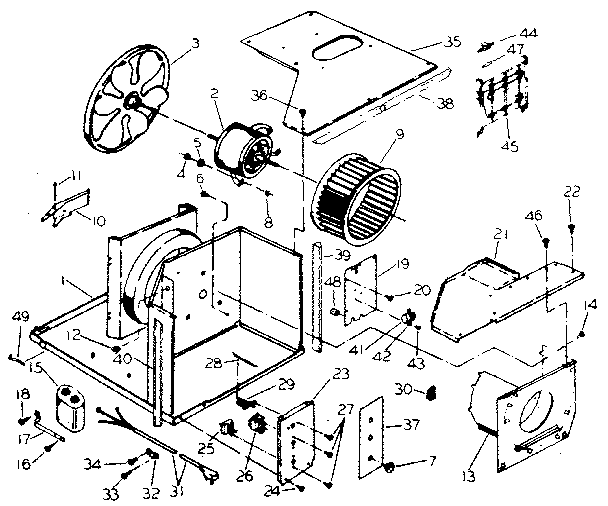

Electrical system and air handling parts diagram

Spacer

Part #520762

Replaced by #5303211009

?
Manufacturer substitution
This part replaces 520762. Substitute parts can look different from the original.
This item is not returnable
$3.24
In Stock
Ex Door 149713
#10

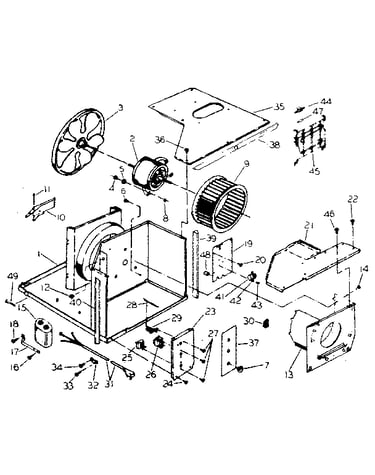

Electrical system and air handling parts diagram

Ex door

Part #149713

The manufacturer no longer makes this part, and there's no substitute part

Mechanism 506434
#29

Electrical system and air handling parts diagram

Mechanism

Part #506434

The manufacturer no longer makes this part, and there's no substitute part

Gasket 515924
#14

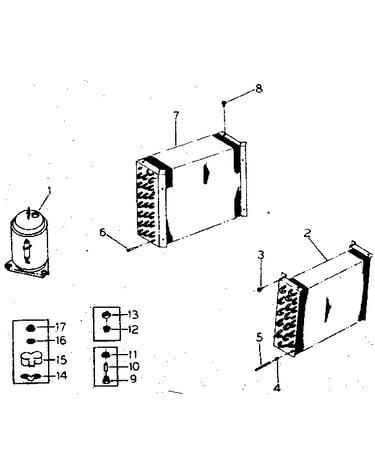

Unit parts diagram

Gasket

Part #515924

The manufacturer no longer makes this part, and there's no substitute part

Start Kit 501725

#NI

All parts diagram

Start kit

Part #501725

The manufacturer no longer makes this part, and there's no substitute part

Washer 119303
#5

Electrical system and air handling parts diagram

Washer

Part #119303

The manufacturer no longer makes this part, and there's no substitute part

Grommet 119103
#48

Electrical system and air handling parts diagram

Grommet

Part #119103

The manufacturer no longer makes this part, and there's no substitute part

Cover 125758
#35

Electrical system and air handling parts diagram

Cover

Part #125758

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 136497
#11

Electrical system and air handling parts diagram

Hinge pin

Part #136497

The manufacturer no longer makes this part, and there's no substitute part

Screw 516355
#33

Electrical system and air handling parts diagram

Screw

Part #516355

The manufacturer no longer makes this part, and there's no substitute part
