Kenmore
Countertop Microwave

Model # 5658968290 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5658968290 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

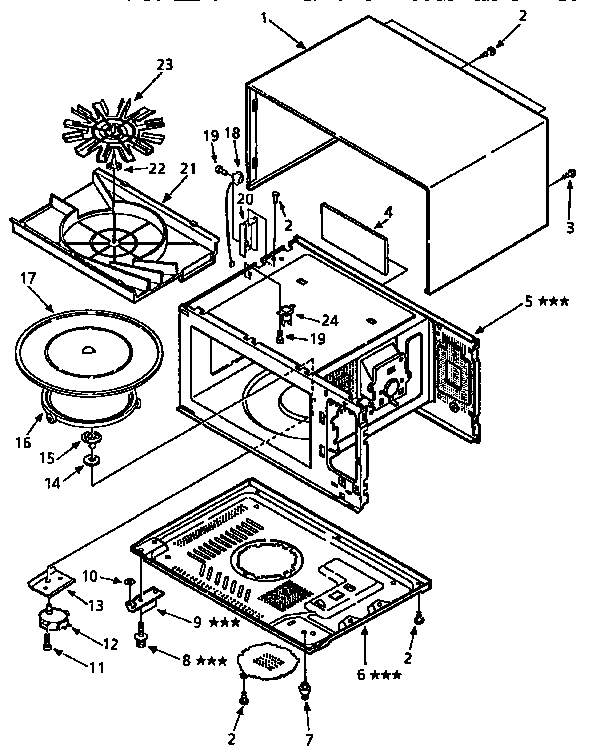

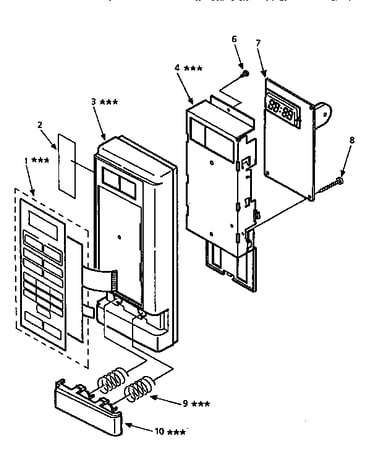

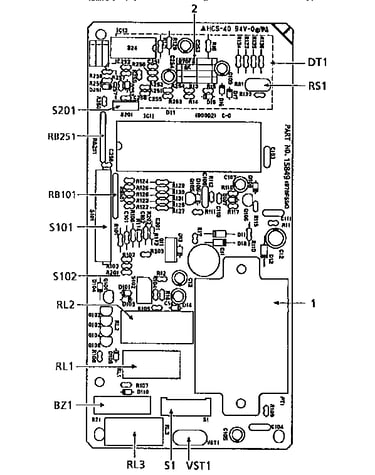

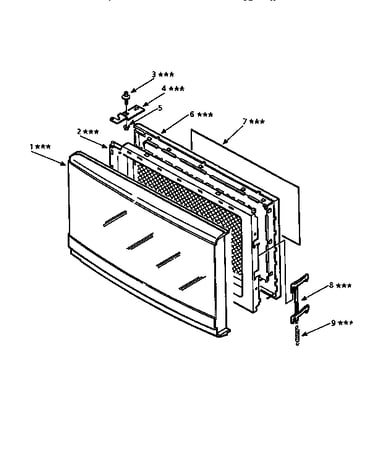

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
20a Fuse 15628
#9

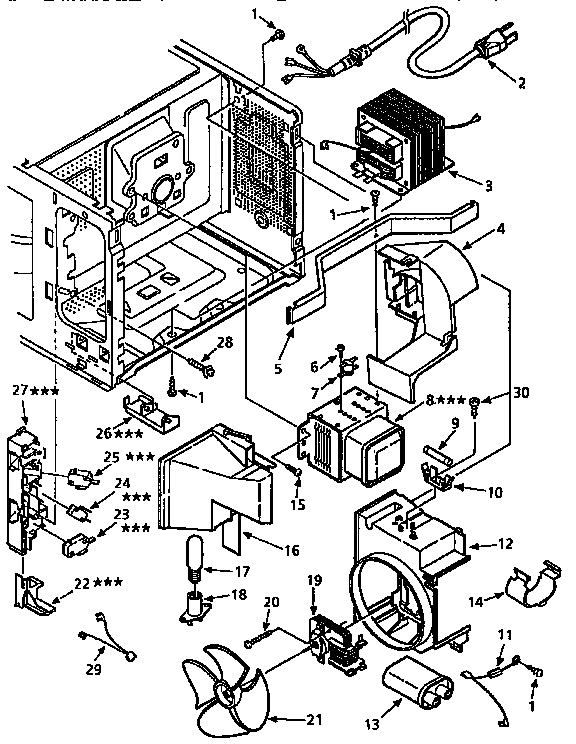

Switches and microwave diagram

20a fuse

Part #15628

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 15077
#24

Switches and microwave diagram

Micro-switch

Part #15077

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 15459
#23

Switches and microwave diagram

Micro-switch

Part #15459

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 15465
#10

Switches and microwave diagram

Fuse holder

Part #15465

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Capacitor 15749
#13

Switches and microwave diagram

High-voltage capacitor

Part #15749

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 15336
#25

Switches and microwave diagram

Micro-switch

Part #15336

The manufacturer no longer makes this part, and there's no substitute part

Circuit Diagram 15893

#NI

All parts diagram

Circuit diagram

Part #15893

The manufacturer no longer makes this part, and there's no substitute part

4x10 Screw 15818
#28

Switches and microwave diagram

4x10 screw

Part #15818

The manufacturer no longer makes this part, and there's no substitute part

Cavity Stay 15742
#5

Switches and microwave diagram

Cavity stay

Part #15742

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Socket 15463
#18

Switches and microwave diagram

Microwave light socket

Part #15463

The manufacturer no longer makes this part, and there's no substitute part
