Model # PF822020 Official Proform proform 822 exp treadmill

Here are the diagrams and repair parts for Official Proform PF822020 proform 822 exp treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Silicone 6.2 100916

#NI

All parts diagram

Silicone 6.2

Part #100916

Replaced by #219170

?
Manufacturer substitution
This part replaces 100916. Substitute parts can look different from the original.
$23.69 |
20% OFF Phone Price : $29.69
In Stock
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229
#31

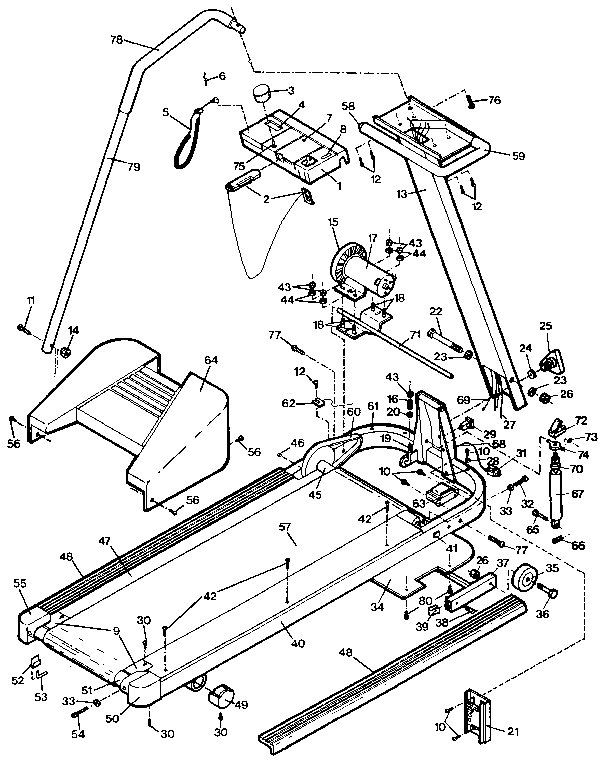

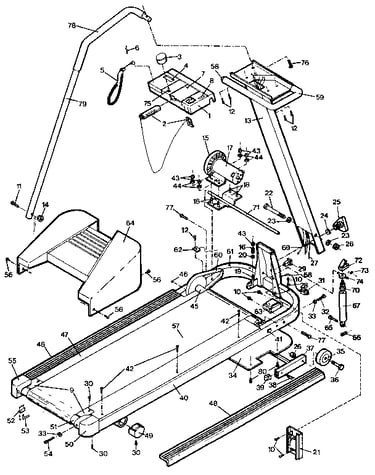

Unit parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Cb,15 Amp,sl 031103
#29

Unit parts diagram

Cb,15 amp,sl

Part #031103

Replaced by #109382

?
Manufacturer substitution
This part replaces 031103. Substitute parts can look different from the original.
This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Weider Screw, #8 X 3/4-in 104626
#12

Unit parts diagram

Weider screw, #8 x 3/4-in

Part #104626

This item is not returnable
$2.16
In Stock
Cotter Pin,3 106334
#66

Unit parts diagram

Cotter pin,3

Part #106334

This item is not returnable
$2.16
In Stock
Nut,push,3/8 012133
#73

Unit parts diagram

Nut,push,3/8

Part #012133

This item is not returnable
$2.16
In Stock
Screw,hhcs,n 104624
#77

Unit parts diagram

Screw,hhcs,n

Part #104624

This item is not returnable
$2.16
In Stock
Weider Exercise Equipment Screw 013275
#32

Unit parts diagram

Weider exercise equipment screw

Part #013275

This item is not returnable
$2.16
In Stock
Weider Exercise Equipment Hex Nut 105477
#14

Unit parts diagram

Weider exercise equipment hex nut

Part #105477

This item is not returnable
$2.16
In Stock
Nordictrack Carriage Bolt 013445
#18

Unit parts diagram

Nordictrack carriage bolt

Part #013445

This item is not returnable
$2.16
In Stock
