Model # GPVT50L101 Official AO Smith water heater

Here are the diagrams and repair parts for Official AO Smith GPVT50L101 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Kenmore Water Heater Valve Wiring Kit 9006022
#32

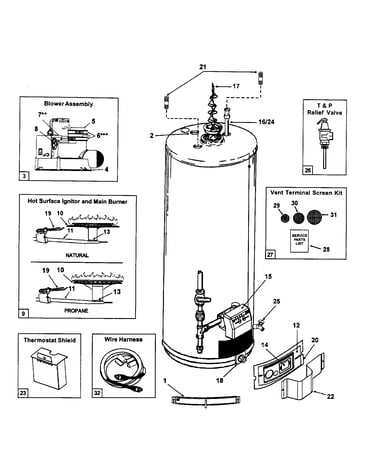

Water heater diagram

Kenmore water heater valve wiring kit

Part #9006022

$36.09 |
14% OFF Phone Price : $42.09
In Stock
Anode 33 In 9000029
#2

Water heater diagram

Anode 33 in

Part #9000029

Replaced by #100108260

?
Manufacturer substitution
This part replaces 9000029. Substitute parts can look different from the original.
$48.89
In Stock
Inlet Tube 9003473
#24

Water heater diagram

Inlet tube

Part #9003473

Replaced by #100108763

?
Manufacturer substitution
This part replaces 9003473. Substitute parts can look different from the original.
$26.67
In Stock
Outer Door 9003545
#22

Water heater diagram

Outer door

Part #9003545

Replaced by #100109299

?
Manufacturer substitution
This part replaces 9003545. Substitute parts can look different from the original.
$35.56
In Stock
Nipples-5" 9003977
#21

Water heater diagram

Nipples-5"

Part #9003977

Replaced by #100109655

?
Manufacturer substitution
This part replaces 9003977. Substitute parts can look different from the original.
$36.67
In Stock
Water Heater Temperature And Pressure Relief Valve 9000728
#26

Water heater diagram

Water heater temperature and pressure relief valve

Part #9000728

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Air Intake Screen (replaces 183159, 183159-000, 9003983) 9003406
#1

Water heater diagram

Water heater air intake screen (replaces 183159, 183159-000, 9003983)

Part #9003406

Replaced by #100109216

?
Manufacturer substitution
This part replaces 9003406. Substitute parts can look different from the original.
$22.86
In Stock
Water Heater Burner Igniter Assembly 9005958
#19

Water heater diagram

Water heater burner igniter assembly

Part #9005958

Replaced by #100110771

?
Manufacturer substitution
This part replaces 9005958. Substitute parts can look different from the original.
$162.00
In Stock
Sensor 9006029
#18

Water heater diagram

Sensor

Part #9006029

The manufacturer no longer makes this part, and there's no substitute part

Screen 9006027
#27

Water heater diagram

Screen

Part #9006027

The manufacturer no longer makes this part, and there's no substitute part
