Model # 5648888310 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5648888310 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

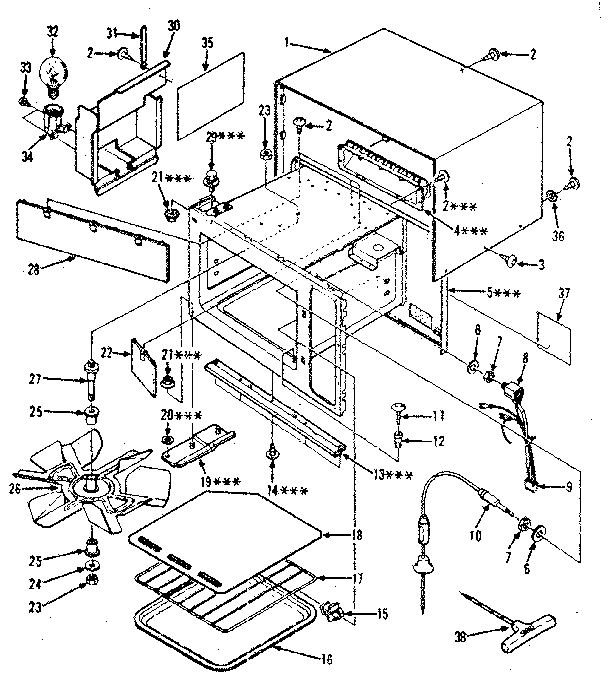

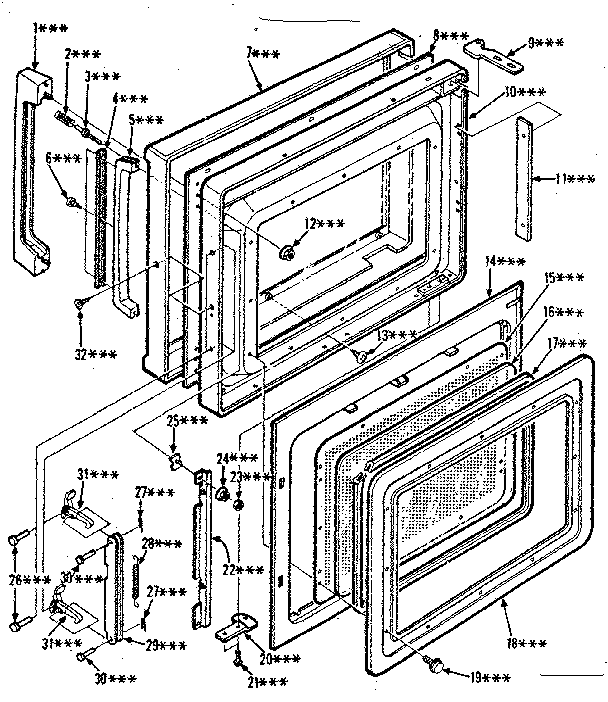

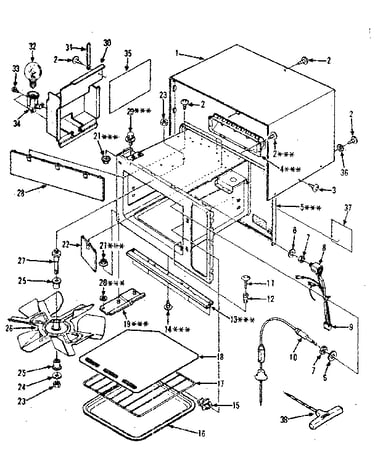

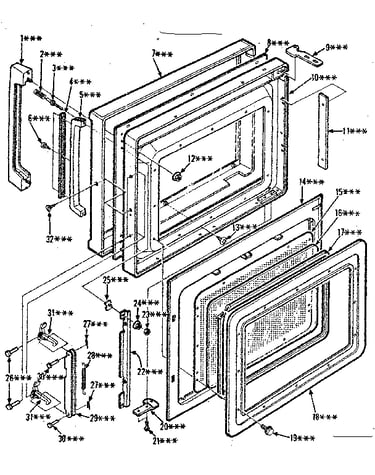

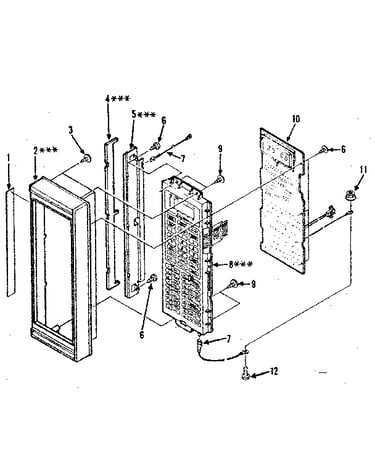

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Micro-switch 11243
#19

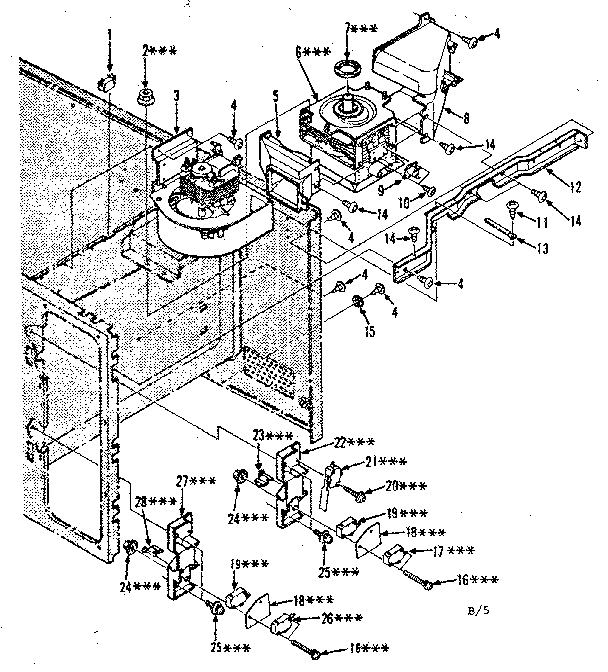

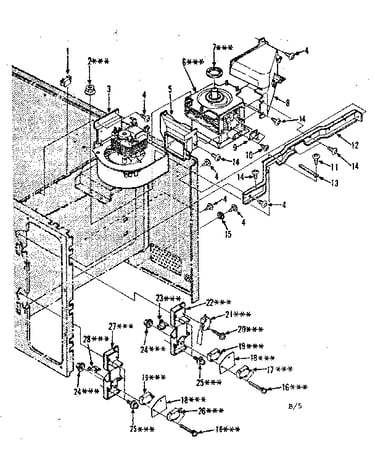

Switches and microwave parts diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 11242
#6

Switches and microwave parts diagram

Magnetron

Part #11242

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Lever 11090
#28

Switches and microwave parts diagram

Microwave door latch lever

Part #11090

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse, 15-amp 11255
#16

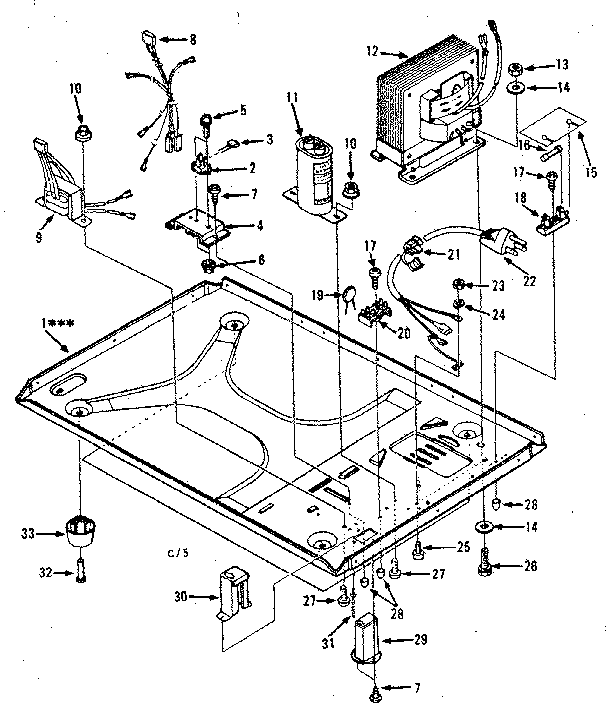

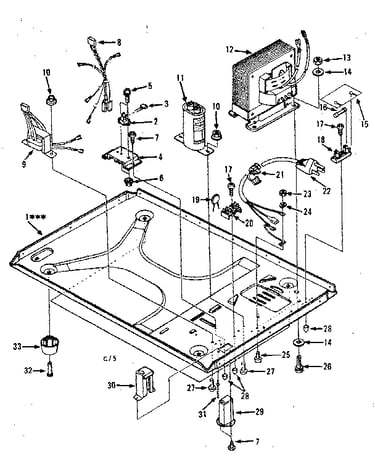

Microwave parts diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Switch 13000
#17

Switches and microwave parts diagram

Switch

Part #13000

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 11632
#26

Switches and microwave parts diagram

Micro-switch

Part #11632

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11253
#11

Microwave parts diagram

Capacitor

Part #11253

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11292
#14B

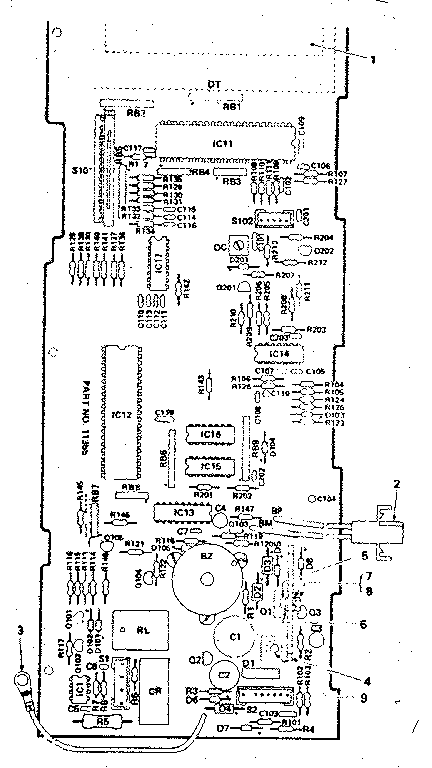

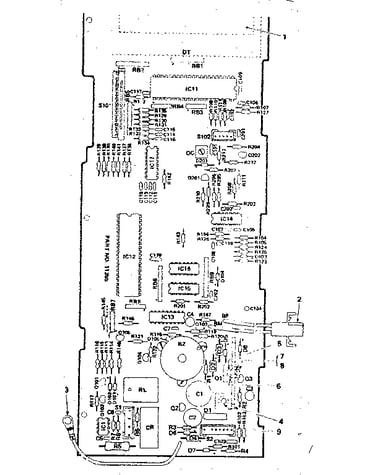

Power and control circuit board 11355r diagram

Capacitor

Part #11292

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 11256
#18

Microwave parts diagram

Fuse holder

Part #11256

The manufacturer no longer makes this part, and there's no substitute part

Screw 10305
Screw

Part #10305

The manufacturer no longer makes this part, and there's no substitute part
