Model # 143236082 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143236082 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Fuel Line 29774
#134

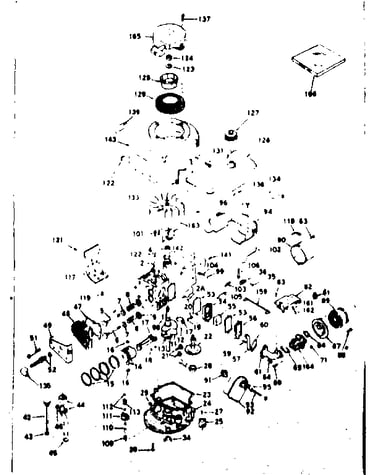

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Breather Element Air Filter 28424
#55

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Plate 31588
#95

Basic engine diagram

Plate

Part #31588

The manufacturer no longer makes this part, and there's no substitute part

Throttle Spring 631279
#2

Carburetor diagram

Throttle spring

Part #631279

Replaced by #631767

?
Manufacturer substitution
This part replaces 631279. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lauson Lawn & Garden Equipment Engine Carburetor Diaphragm 630978
#22

Carburetor diagram

Lauson lawn & garden equipment engine carburetor diaphragm

Part #630978

This item is not returnable
$6.79 |
13% OFF Phone Price : $7.79
In Stock
/gvnr Clamp 31335
#36

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#88

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Lauson Lawn & Garden Equipment Engine Carburetor Diaphragm Cover 630751
#23

Carburetor diagram

Lauson lawn & garden equipment engine carburetor diaphragm cover

Part #630751

This item is not returnable
$10.62 |
16% OFF Phone Price : $12.62
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl Spring 590412
#5

Rewind starter diagram

Lawn & garden equipment engine recoil starter pawl spring

Part #590412

$9.51
In Stock
