Model # 58031891 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58031891 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

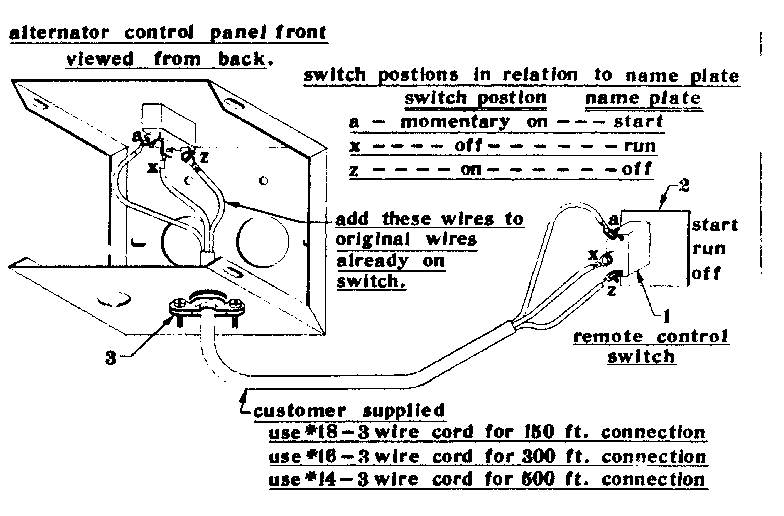

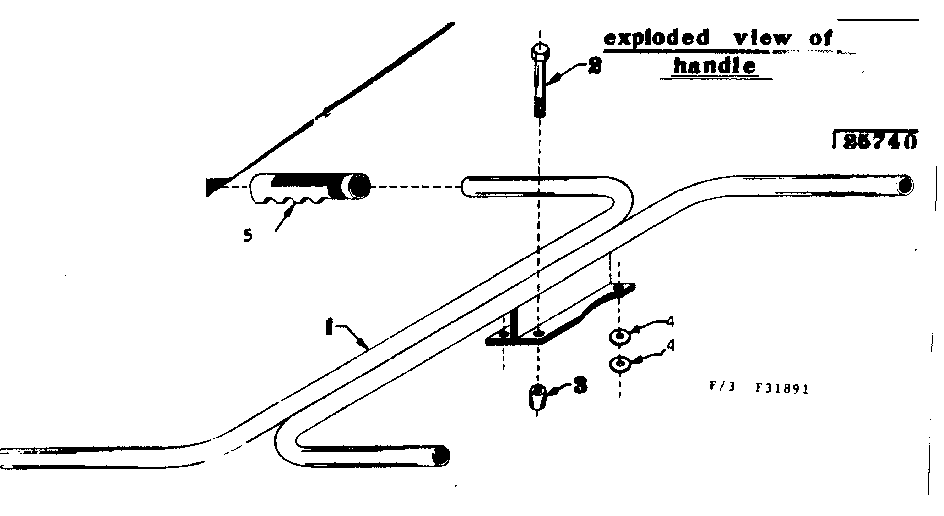

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Lock Set 23366
#13

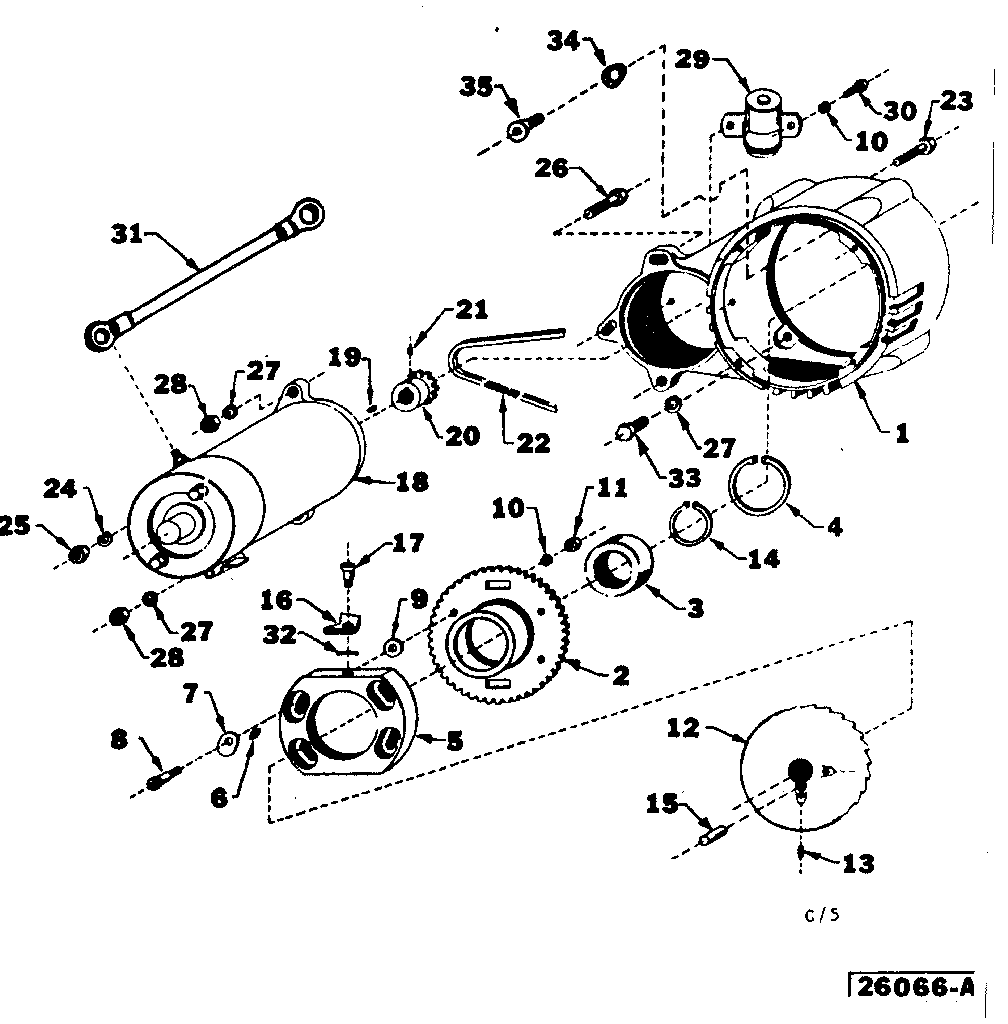

Starter diagram

Lock set

Part #23366

Replaced by #23366

?
Manufacturer substitution
This part replaces 23366. Substitute parts can look different from the original.
This item is not returnable
$3.09
In Stock
Nut 25422
#8

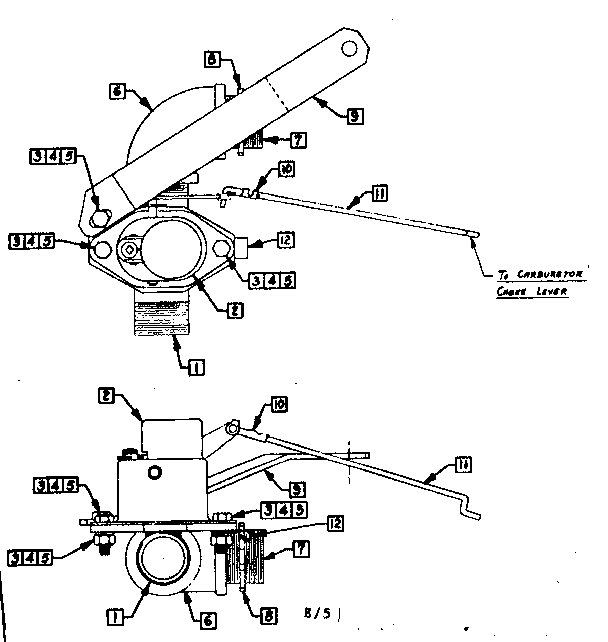

Choke assembly diagram

Nut

Part #25422

Replaced by #691808

?
Manufacturer substitution
This part replaces 25422. Substitute parts can look different from the original.
This item is not returnable
$14.34
In Stock
Cap Screw 22287
#3

Choke assembly diagram

Cap screw

Part #22287

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly A-24044-A
#10

Stator assembly diagram

Brush assembly

Part #A-24044-A

The manufacturer no longer makes this part, and there's no substitute part

Housing 25132
#1

Stator assembly diagram

Housing

Part #25132

The manufacturer no longer makes this part, and there's no substitute part

Washer 25259
#7

Starter diagram

Washer

Part #25259

The manufacturer no longer makes this part, and there's no substitute part

Screw 24489
Screw

Part #24489

The manufacturer no longer makes this part, and there's no substitute part

Pin 25258
#16

Starter diagram

Pin

Part #25258

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 25344
#20

Starter diagram

Sprocket

Part #25344

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 24237
#14

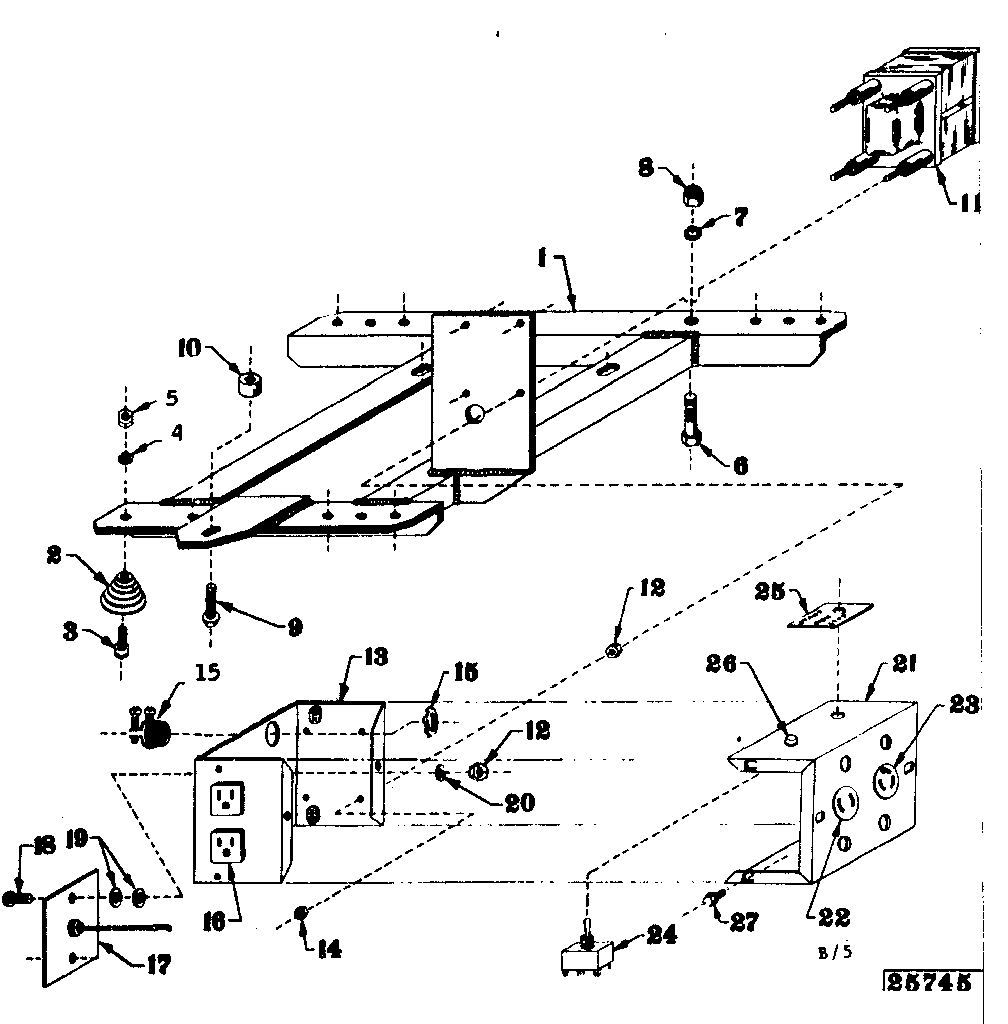

Mounting base diagram

Hex nut

Part #24237

The manufacturer no longer makes this part, and there's no substitute part
