Model # 25794241300 Official LXI turntable

Here are the diagrams and repair parts for Official LXI 25794241300 turntable, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Toggle Wheel B108073

#96

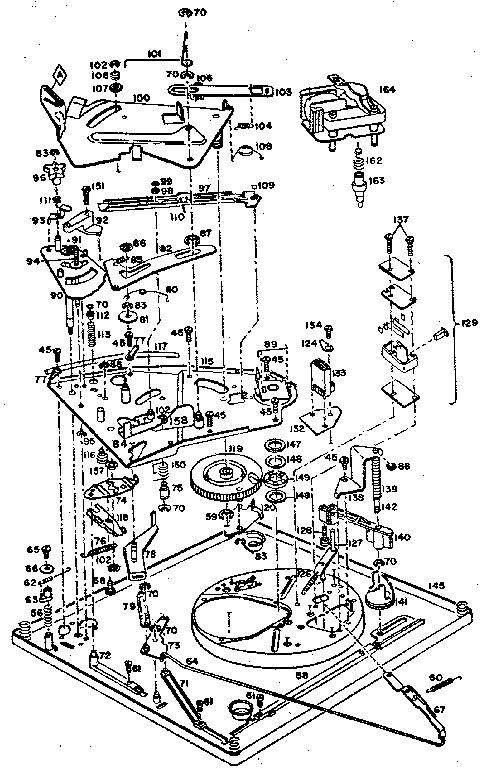

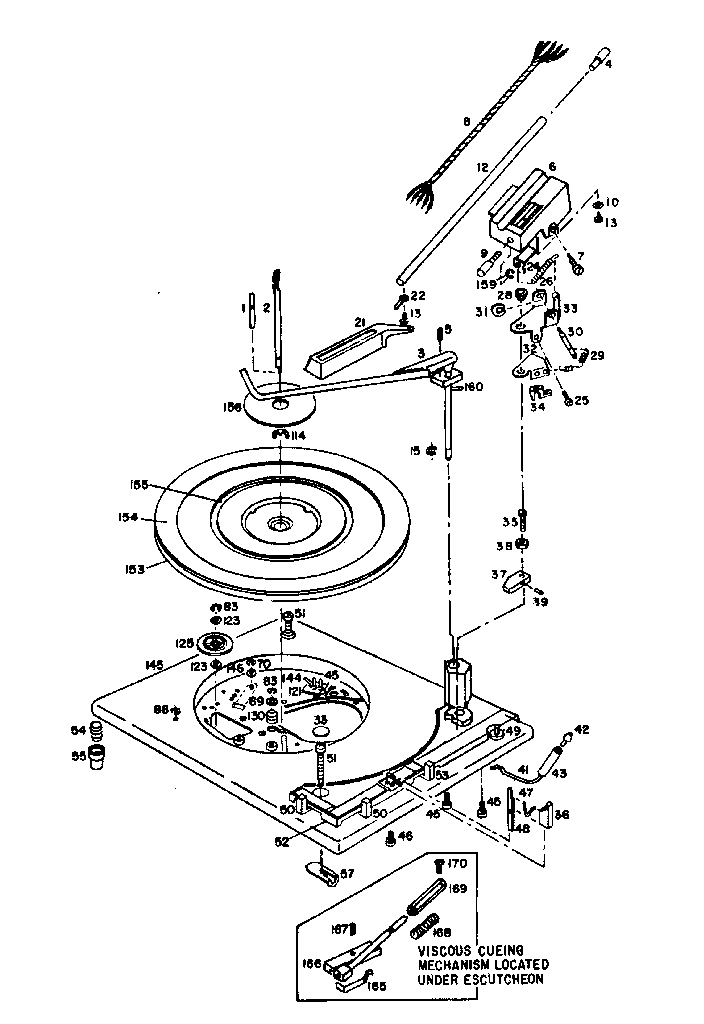

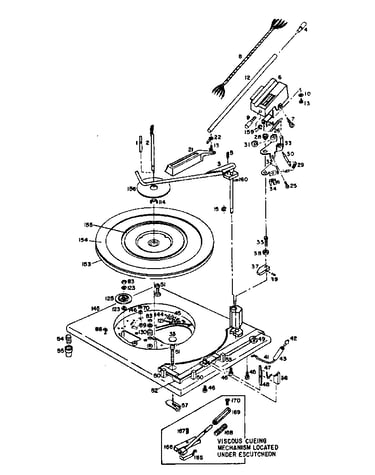

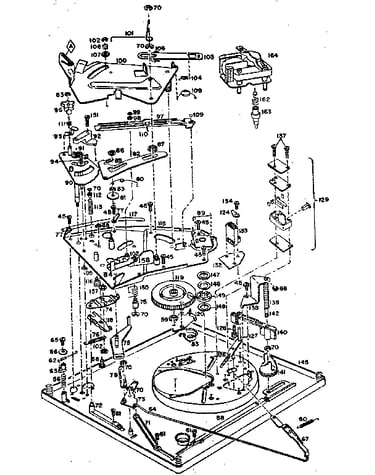

All parts diagram

Toggle wheel

Part #B108073

The manufacturer no longer makes this part, and there's no substitute part

Speed Change Slide Assembly B108113

#58

All parts diagram

Speed change slide assembly

Part #B108113

The manufacturer no longer makes this part, and there's no substitute part

Cam Gear Riveting Assembly A102133

#119

All parts diagram

Cam gear riveting assembly

Part #A102133

The manufacturer no longer makes this part, and there's no substitute part

Selector Knob B110426

#53

All parts diagram

Selector knob

Part #B110426

The manufacturer no longer makes this part, and there's no substitute part

Roller A108461

#157

All parts diagram

Roller

Part #A108461

The manufacturer no longer makes this part, and there's no substitute part

P.u. Clip A106664

#48

All parts diagram

P.u. clip

Part #A106664

The manufacturer no longer makes this part, and there's no substitute part

(a4) Knob A110381

#43

All parts diagram

(a4) knob

Part #A110381

The manufacturer no longer makes this part, and there's no substitute part

Control Pin A107348

#160

All parts diagram

Control pin

Part #A107348

The manufacturer no longer makes this part, and there's no substitute part

Screw A105267

#61

All parts diagram

Screw

Part #A105267

The manufacturer no longer makes this part, and there's no substitute part

Screw 6 B.a. X 3/16" Rec. C'sunk Hd. A106573

#14

All parts diagram

Screw 6 b.a. x 3/16" rec. c'sunk hd.

Part #A106573

The manufacturer no longer makes this part, and there's no substitute part
