Amana
Countertop Microwave

Model # 1132.002 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 1132002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Flat Washer - Capacitor Grounding M1D56
#51C

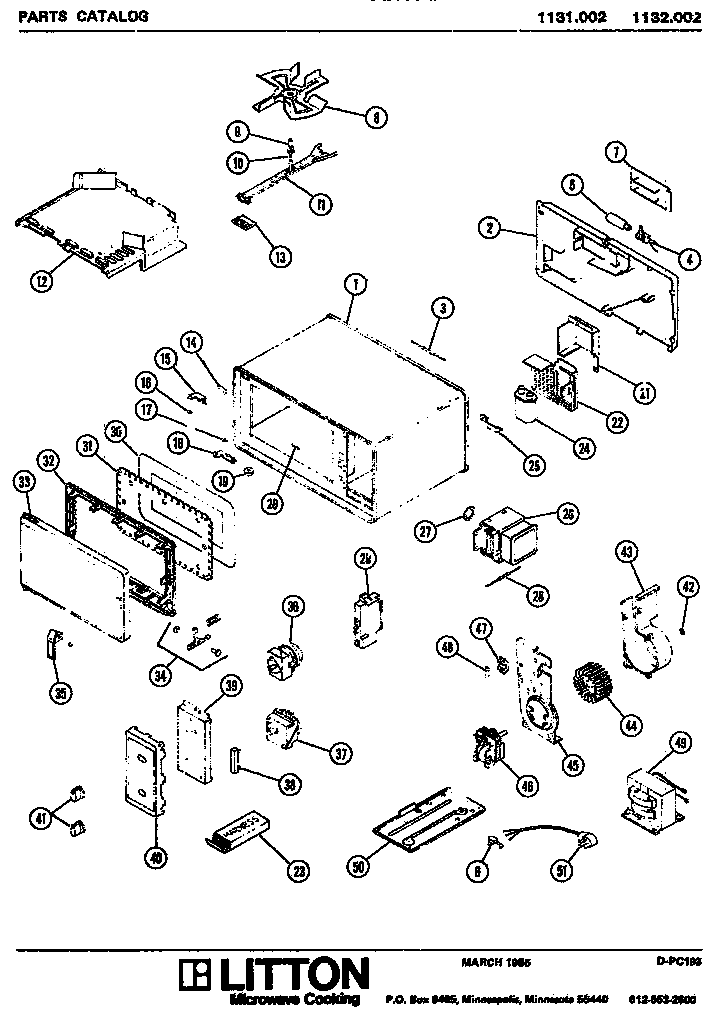

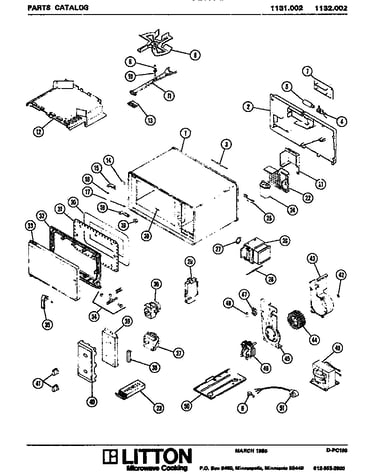

Microwave parts(1131.002) (1132.002) diagram

Flat washer - capacitor grounding

Part #M1D56

The manufacturer no longer makes this part, and there's no substitute part

Outer Door Assembly (includes Hinge Plates And Ref. Nos. M70D119
#33A

Microwave parts(1131.002) (1132.002) diagram

Outer door assembly (includes hinge plates and ref. nos.

Part #M70D119

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel (includes Ref. No. 35) M35D46
#44

Microwave parts(1131.002) (1132.002) diagram

Blower wheel (includes ref. no. 35)

Part #M35D46

The manufacturer no longer makes this part, and there's no substitute part

Bottom Access Panel (includes Ref. No. 14) M53D58
#50A

Microwave parts(1131.002) (1132.002) diagram

Bottom access panel (includes ref. no. 14)

Part #M53D58

The manufacturer no longer makes this part, and there's no substitute part

Power Tesr Kit (includes Thermomether) M95D5
#51I

Microwave parts(1131.002) (1132.002) diagram

Power tesr kit (includes thermomether)

Part #M95D5

The manufacturer no longer makes this part, and there's no substitute part

Screw, Hinge Mounting (torx T-20) M1D916
#18B

Microwave parts(1131.002) (1132.002) diagram

Screw, hinge mounting (torx t-20)

Part #M1D916

The manufacturer no longer makes this part, and there's no substitute part

Handle (includes Groove Pin) M11D74
#35A

Microwave parts(1131.002) (1132.002) diagram

Handle (includes groove pin)

Part #M11D74

The manufacturer no longer makes this part, and there's no substitute part

Screw, Cord Grounding M1D888
#29C

Microwave parts(1131.002) (1132.002) diagram

Screw, cord grounding

Part #M1D888

The manufacturer no longer makes this part, and there's no substitute part

Screw, Hinge Mounting M1D918
#33B

Microwave parts(1131.002) (1132.002) diagram

Screw, hinge mounting

Part #M1D918

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (includes Ref. Nos. 15, 16) M77D138
#1A

Microwave parts(1131.002) (1132.002) diagram

Cavity assembly (includes ref. nos. 15, 16)

Part #M77D138

The manufacturer no longer makes this part, and there's no substitute part
